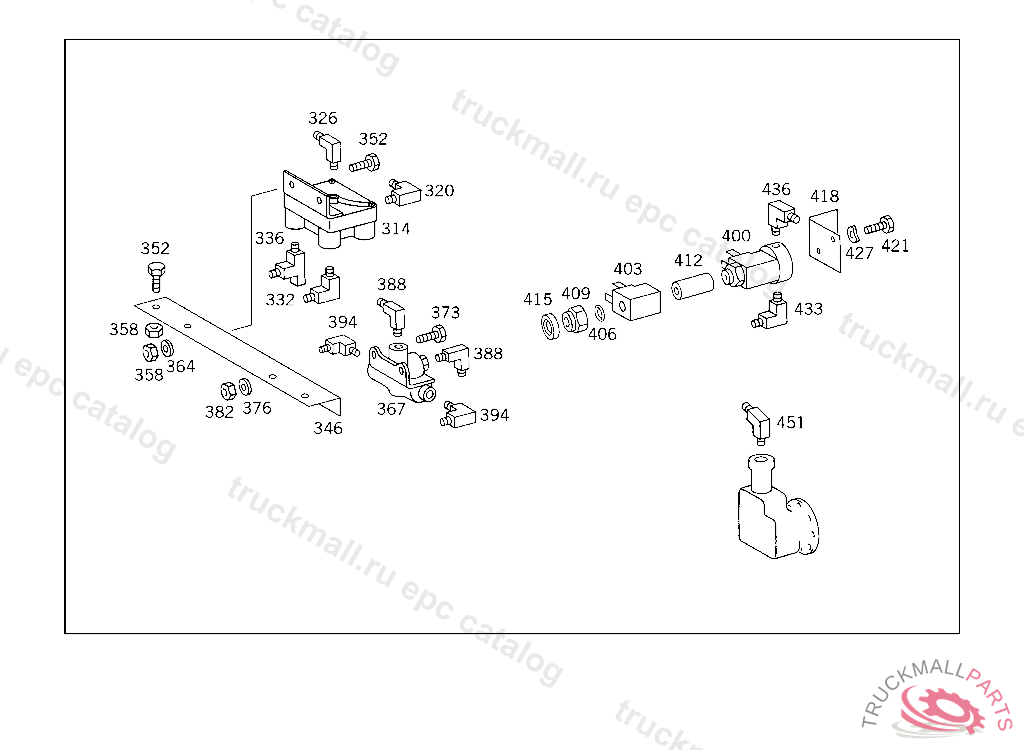

Поз.
Артикул
Описание
314
VALVE (RELAY VALVE)
320
PART NAME MISSING ELBOW FITTING 90 1/2 NPTF X 5/8 T, ONLY APPLICABLE TO BM 685.441-327,310
326
PART NAME MISSING ELBOW FITTING
326
PART NAME MISSING ELBOW FITTING 1/4 NPTFM X 3/8T, INAPPLICABLE TO BM 685.458-002
332
PART NAME MISSING ELBOW FITTING
336
346
352
PART NAME MISSING BRACKET TO FRONT CROSS MEMBER 5/16-18 X 1 FG8
358
PART NAME MISSING NUT
364
WASHER VALVE TO BRACKET 5/16
367
PART NAME MISSING VALVE
373
PART NAME MISSING BRACKET TO FRONT CROSS MEMBER 5/16-18 X 1 FG8
376
WASHER VALVE TO BRACKET 5/16
382
PART NAME MISSING NUT
388
PART NAME MISSING ELBOW FITTING 1/4 NPTFM X 3/8T, INAPPLICABLE TO BM 685.458-002
394
PART NAME MISSING ELBOW FITTING
400
VALVE 3/2-WAY SOLENOID VALVE
400
VALVE 3/2-WAY
403
SOLENOIDTO 693 420 73 71
403
MAGNET12 V, TO 345 997 74 36
406
SEAL RING
409
NUT
412
VALVE PART
415
PROTECTIVE CAP
421
PART NAME MISSING SCREW 1/4-20
421
SCREW BRACKET MOUNTING
427
PART NAME MISSING SPRING WASHER 12/0.226 Z
427
WASHER VALVE TO BRACKET 5/16
433
PART NAME MISSING ELBOW FITTING 45 GR. 1/4 NPTFM X 3/8 T
436
436
PART NAME MISSING ELBOW FITTING 90 GR. 1/8 NPTFM X 3/8 T
451
PART NAME MISSING FITTING
999
999
PART NAME MISSING CONNECTOR 3/8 NPTFM X 1/4 NPTFH
999
PART NAME MISSING NUT
999
NUT NUT
999
999
WASHER BRACKET TO CROSS MEMBER, INAPPLICABLE TO BM 685.458-002
999
999
SENDER UNIT BRAKE VALVE,CONNECTION: "21", INAPPLICABLE TO BM 685.458-002
999
999
999
999
999
REPAIR KITTO 388 997 88 36
