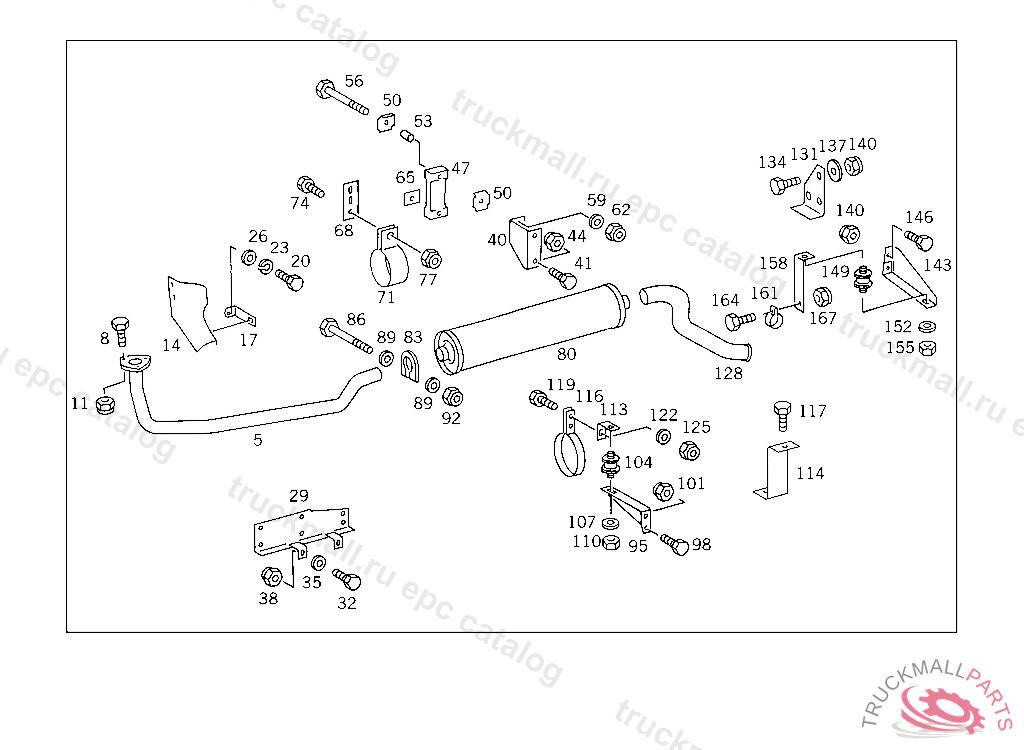

Поз.
Артикул
Описание
5
EXHAUST PIPE FRONT
8
SCREW CROSS MEMBER TO SIDE MEMBERS
11
NUT , Replaced By: N910113010004
80
EXHAUST MUFFLER
80
EXHAUST MUFFLER
83
CLAMP REAR EXHAUST PIPE TO MUFFLER
86
SCREW SHIFT LEVER
89
WASHER FRONT AND REAR EXHAUST PIPES TO MUFFLER
92
HEXAGON NUT SCREENING PLATE,5 163561
92
NUT , Replaced By: A1201420072
95
BRACKET EXHAUST MUFFLER,FRONT
95
BRACKET EXHAUST MUFFLER,REAR
98
SCREW ANGLE TO CROSS MEMBER M 10X30
98
SCREW , Replaced By: N304017010040
101
NUT BRACKET TO SIDE MEMBER,XB209706
104
RUBBER BUFFER EXHAUST MUFFLER
107
WASHER GROUND CABLE
110
NUT BRACKET TO RETARDER
114
SUPPORT REAR EXHAUST MUFFLER 95 MM
114
SUPPORT EXHAUST MUFFLER
117
SCREW BRACKET TO SIDE MEMBER
