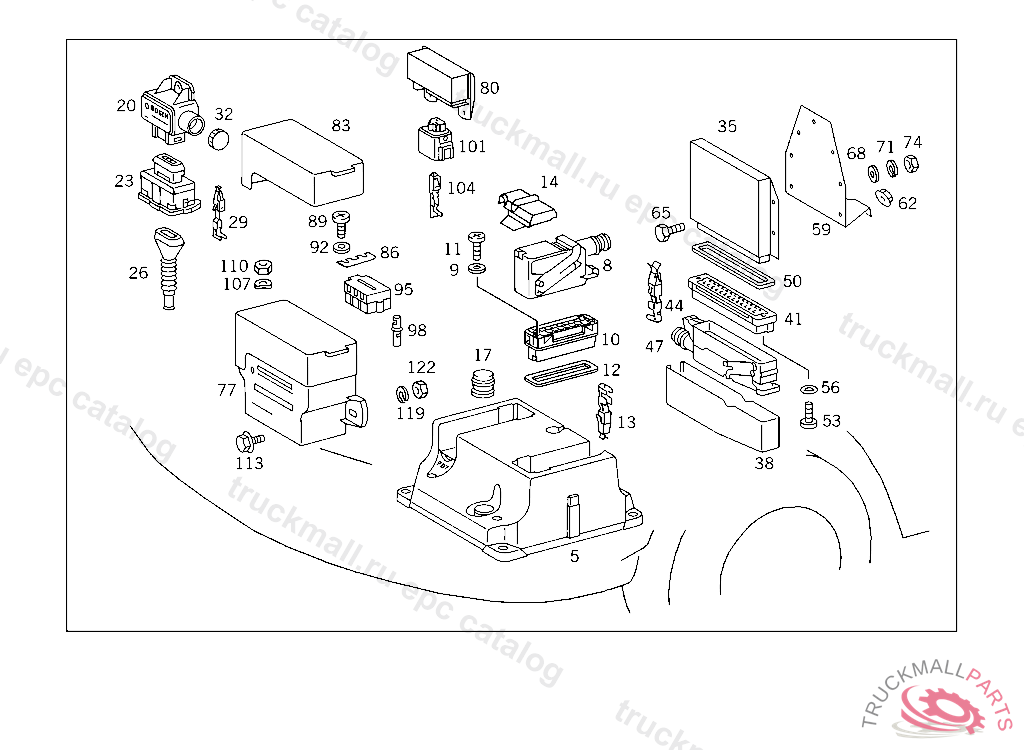

Поз.
Артикул
Описание
5
5
5
5
5
5
5
5
5
5
8
PLUG HOUSING , Replaced By: A0005457381, +001A0005450539, +001A0005458040, +001A0005450471, +001A0005457780
8
SHELL TYPE HANDLE"PMS"
9
RUBBER RING , Replaced By: A0005450839
10
BRACKET"PMS"
11
SCREW , NOT USED
12
GASKET"PMS"
13
CONTACT SPRING0.5-1.0 MM2
13
CONTACT SPRING LESS DETENT,BUT WITH CATCH FOR HOUSING 1.0-2.5 MM2
14
COVERING CONTROL UNIT TO WHEELHOUSE PMS
17
TRIMMER PLUGPMS,F 264121
20
POTENTIOMETER CO ADJUSTMENT, USED WITHOUT CATALYST
23
PIN BUSHING HOUSING CHARGING PRESSURE SENSOR
26
BOOT THREE-PIN PLUG CONNECTION
29
CONTACT SPRING0.5-1.0 MM2
29
CONTACT SPRING , Replaced By: A0115458126
32
PLUG PROTECTION AGAINST MISHANDLING
35
MSA25 CONTROL UNIT , P 614659 R 000001 ATTENTION!!! SPARE PART MUST BE CODED WITH HAND-HELD TESTER AFTER INSTALLATION IN VEHICLE! THEFT-RELEVANT PART
35
MSA CONTROL UNIT , Replaced By: A0195456532
35
MSA15 CONTROL UNIT , P 614658 ATTENTION!!! SPARE PART MUST BE CODED WITH HAND-HELD TESTER AFTER INSTALLATION IN VEHICLE! PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
38
COVERING CONTROL UNIT MSA
41
PIN BUSHING HOUSING ELECTRONICALLY CONTROLLED DISTIBUTION INJECTION SYSTEM (EVE) TO 461 540 62 06
44
CONTACT SPRING , Replaced By: A0065458926
44
CONTACT SPRING
47
PIN BUSHING HOUSINGMSA 25, P 614659 R 000001
47
SHELL TYPE HANDLEMSA15, P 614658
50
RUBBER RING ELECTRONICALLY CONTROLLED DISTIBUTION INJECTION SYSTEM (EVE)
53
SCREW , NOT USED
56
SEAL RINGTO 000 545 62 40
59
BRACKET CONTROL UNIT
62
NUT COVERING TO CAB FIRE WALL
65
SCREW LICENSE PLATE TO BRACKET
65
SCREW , Replaced By: N304017006020
68
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
68
WASHER COMPRESSED AIR LINE TO BRACKET
71
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
74
NUT SPRING-LOADED PUSH ROD
77
PRE-GLOW TIME RELAYOM602, P 614658
77
CONTROL UNIT (PRE-GLOW TIME RELAY)
77
80
CONTROL UNIT (PRE-GLOW TIME RELAY), Replaced By: A6489000000
80
PRE-GLOW TIME RELAY , Replaced By: A0285454032
80
PRE-GLOW TIME RELAY , Replaced By: A0005453616
80
CONTROL UNIT
83
BOOTTO 001 545 97 32,001 545 98 32
86
FUSE
89
SCREW STEP SWITCH AM 5X10
92
WASHER REFLECTOR TO BRACKET
95
PIN BUSHING HOUSING HEADREST/BACKREST/SEAT-FORE-&-AFT ADJUSTMENT SWITCH, 6-POLE
95
PIN BUSHING HOUSING PRE-GLOW TIME RELAY, 5-POLE
98
ROUND PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM2
98
ROUND PIN BUSHING2.5 MM2
101
CLUTCH. PIN BUSHING HOUSING SIREN
104
CONTACT BUSHING WITH SINGLE-WIRE SEAL 0.5MM2,126373
104
CONTACT BUSHING , Replaced By: A0085456326
104
CONTACT BUSHING , Replaced By: A0085456326
107
SPRING WASHER LICENSE PLATE TO BRACKET
110
NUT SPRING-LOADED PUSH ROD
113
SCREW LEVER TO ENGINE CONTROL SHAFT
113
SCREW , Replaced By: N910105006023
119
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
122
NUT SPRING-LOADED PUSH ROD
