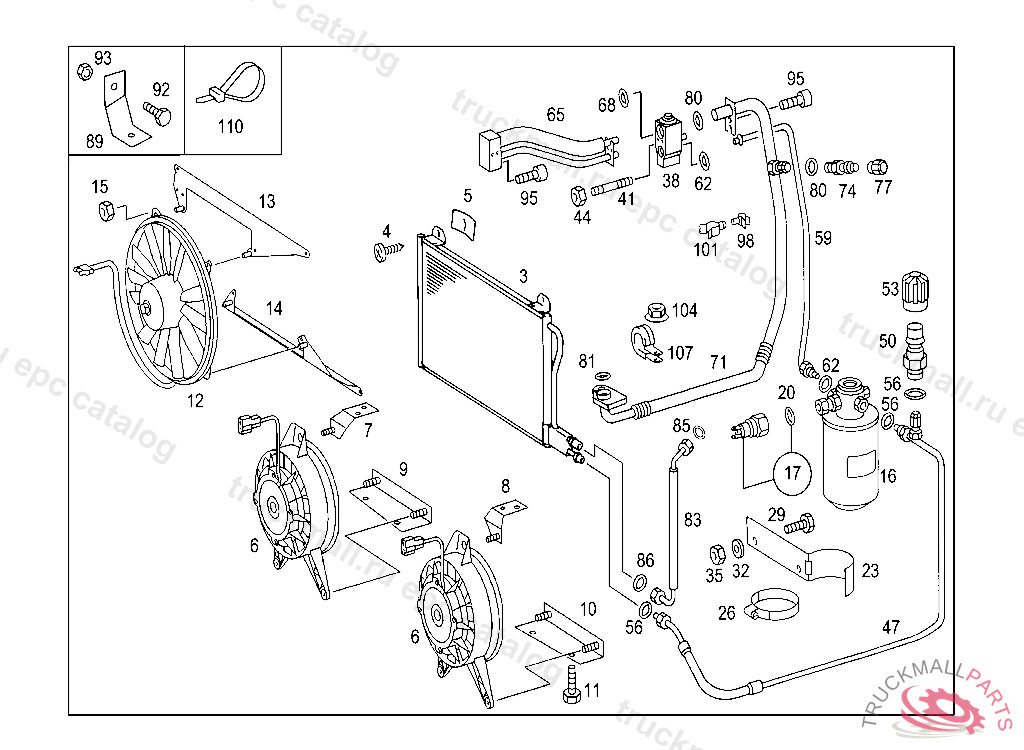

Поз.
Артикул
Описание
3
CONDENSER
3
CONDENSER , Replaced By: A9015000554
4
TAPPING SCREW. SHEET METAL SCREW CONDENSER TO RADIATOR
5
LOCK MUD APRON TO FENDER
12
BLOWER ONLY FOR USE WITH AIR CONDITIONER
13
BRACKET
14
BRACKET
15
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
16
RESERVOIR REFRIGERANT
17
SWITCH LIQUID TANK, 023 060688 033 029143 123 043369 130 055527
17
20
SEAL RING FROM EXPANSION VALVE TO COMPRESSOR
23
BRACKET
26
CLAMP HOSE TO RETARDER 60-80X13 MM
26
CLAMP , Replaced By: N000000000673
29
SCREW PUMP TO BRACKET
32
WASHER COMPRESSED AIR LINE TO BRACKET
32
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
35
NUT SPRING-LOADED PUSH ROD
38
VALVE (EXPANSION VALVE), A 328811 EXCEPT CODE 806 ALSO INSTALLED IN VEHICLE TO A 328810 WITH CODE 807
41
STUD BOLT
44
NUT SPRING-LOADED PUSH ROD
47
PIPE LINE FROM CONDENSER TO LIQUID TANK
50
VALVE
53
CAP
56
SEAL RING HOSE TO EXPANSION VALVE 7.5 MM
59
PIPE LINE FLUID-RESERVOIR-TO-EXPANSION-VALVE REFRIGERANT LINE
59
PIPE LINE FLUID-RESERVOIR-TO-EXPANSION-VALVE REFRIGERANT LINE
62
SEAL RING HOSE TO EXPANSION VALVE 7.5 MM
65
PIPE LINE EXPANSION VALVE TO EVAPORATOR
65
PIPE LINE EXPANSION VALVE TO EVAPORATOR
68
SEAL RING FROM LIQUID TANK TO T-FITTING
68
SEAL RING HOSE TO CONDENSER 14 MM
71
71
PIPE LINE REFRIGERANT LINE TO COMPRESSOR OM 601/602, P 628993 R 000001
71
REFRIGERANT LINE , R 47301520021129547301520021129 A 90937620030630 V 00000020030630
71
PIPELINE , R 47301620021129 A 90937220030522 V 00000120030522
71
PIPE LINE REFRIGERANT LINE TO COMPRESSOR OM 601/602, P 628993 R 000001
71
PIPE LINE REFRIGERANT LINE TO COMPRESSOR OM 601/602,P 628992
71
71
PIPE LINE REFRIGERANT LINE TO COMPRESSOR OM 601/602,P 628992
71
REFRIGERANT LINE , R 47301520021129 A 90937120030522
74
VALVE , NOT USED
77
CAP , NOT USED
80
O-RING HOSE TO EXPANSION VALVE 17X2
81
SEAL RING
83
PIPE LINE FROM COMPRESSOR TO CONDENSER,P 628992
83
PIPELINE. PIPE LINE FROM COMPRESSOR TO CONDENSER M 111 / OM 601, P 628993 R 000001
85
SEAL RING FROM LIQUID TANK TO T-FITTING
86
SEAL RING HOSE TO CONDENSER 14 MM
89
BRACKET EXPANSION-VALVE-TO-COMPRESSOR REFRIGERANT LINE
92
SCREW PUMP TO BRACKET
93
NUT SPRING-LOADED PUSH ROD
95
CAP BOLT. SCREW REFRIGERANT LINE TO EXPANSION VALVE M 5X40
98
HOSE BRACKET. LOOM TIE
98
CLAMP LINE MOUNTING
101
CLAMP ELECTRIC CABLE TO BRAKE HOSE
101
CLAMP. EXTENDABLE SPACER BREATHER LINE
101
BRACKET OIL LINES
104
NUT COVERING TO CAB FIRE WALL
107
CLAMP BRAKE HOSE BRACKET
107
CLAMP CABLE HARNESS MOUNTING
107
CLAMP , Replaced By: N000000001045
107
CLAMP , Replaced By: N916016010211
110
LOOM TIE LINE MOUNTING 280 MM
