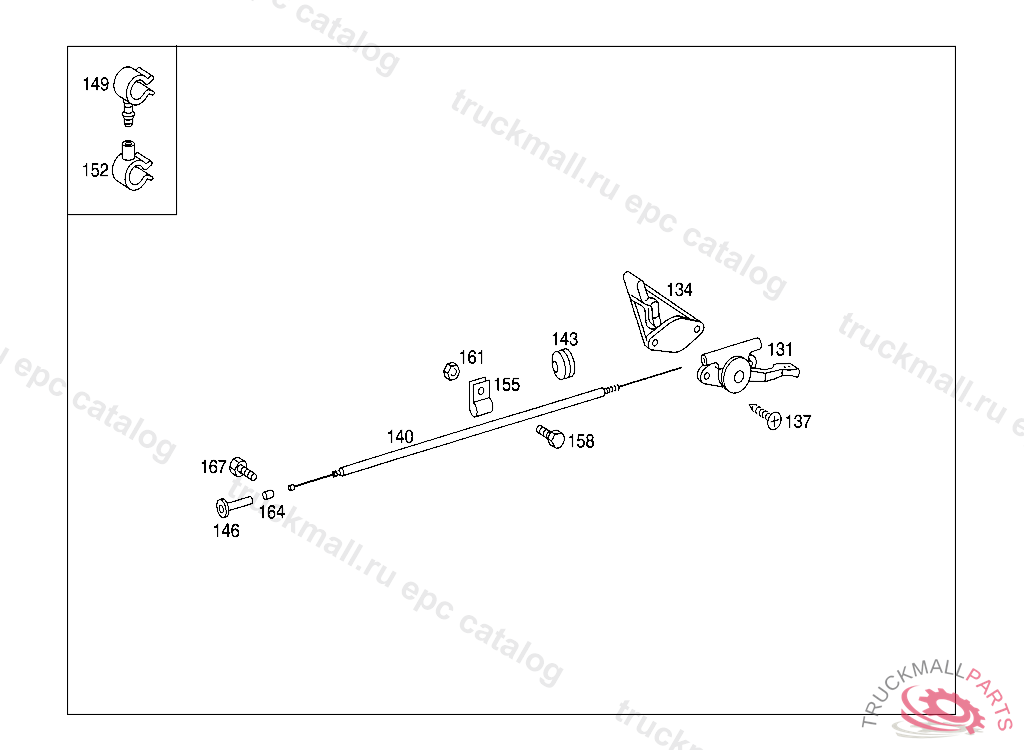

SPRINTER 314 - 903.073 - 30 CONTROL
Поз.
Артикул
Описание
131
LEVER MANUAL CONTROL
134
137
SHEET METAL SCREW
140
143
GROMMET CLOCK
146
GROMMET WIRE CABLE TO MOUNTING CLAMP, FROM IDENT NO. 4 155517 ALSO INSTALLED ON:500001-599999
149
BRACKET LINE MOUNTING 11 MM
152
CLAMP COMPRSSED AIR LINE TO SUBSTRUCTURE
155
CLAMP LINE MOUNTING SA 088202/01
158
SCREWROCKINGER,TYP 59 U150
161
NUT SPRING-LOADED PUSH ROD
164
END PIECE WIRE CABLE
167
HEXAGON HEAD BOLT. SCREW VALVE TO BRACKET
