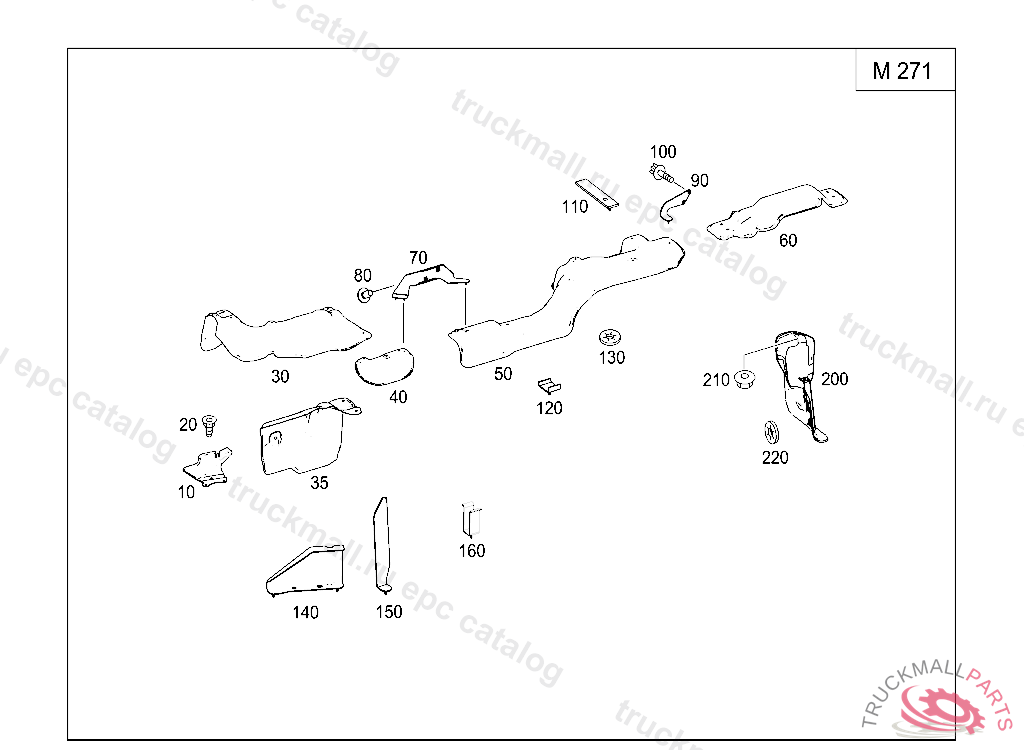

Поз.
Артикул
Описание
10
COVERING AT TRANSMISSION
20
HEXALOBULAR BOLT. SCREW BRACKET TO TRANSMISSION M 6X15
30
PROTECTIVE PLATE OVER CATALYST
35
HEAT SHIELD SIDE CATALYTIC CONVERTER
40
PROTECTIVE PLATE DOWNSTREAM CATALYTIC CONVERTER
70
BRACKET HEAT SHIELD TO HEAT SHIELD
80
SCREW BRACKET TO SIDE MEMBER M8X20
100
SCREW BRACKET TO SIDE MEMBER M8X20
110
BRACKET REAR HEAT SHIELD
120
BRACKET CENTER HEAT SHIELD
130
SPRING WASHER. WASHER FUSE
140
BRACKET FRONT HEAT SHIELD
150
BRACKET FRONT HEAT SHIELD
160
BRACKET CENTER HEAT SHIELD
200
COVER FUEL TANK
200
SCREENING PLATE FUEL TANK, N 36723020071130
200
PROTECTIVE PLATE FUEL TANK
210
NUT BRACKET TO BODY SHELL M6
220
SPRING WASHER. WASHER FUSE
