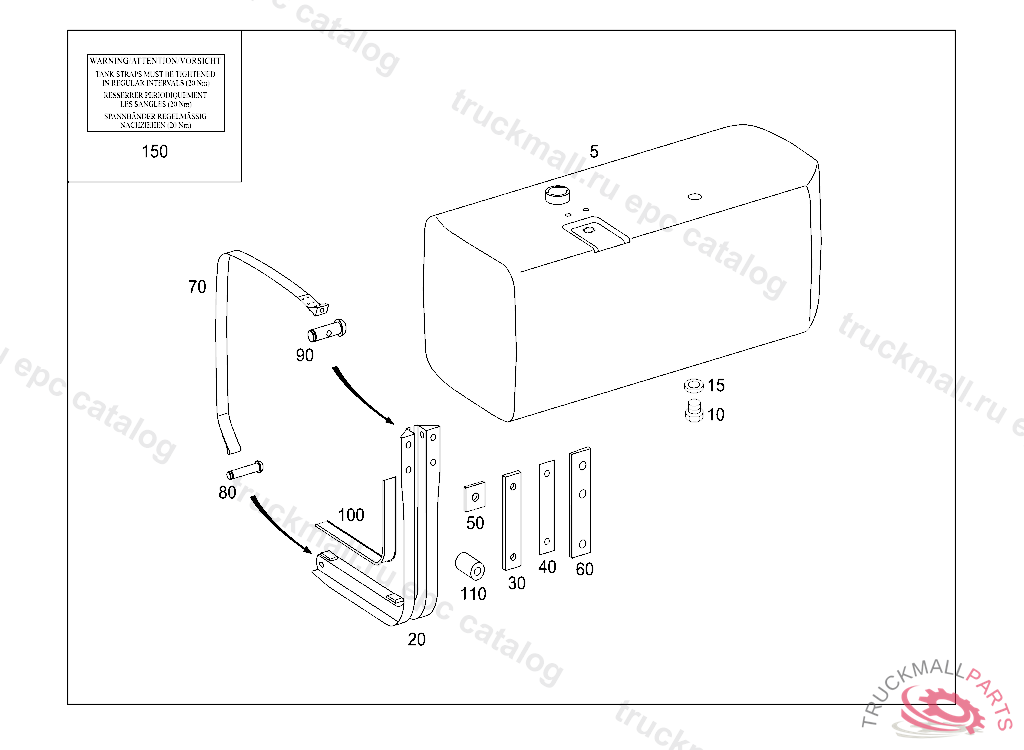

Поз.
Артикул
Описание
5
FUEL TANK RIGHT 880L
10
SCREW PLUG FUEL TANK
15
SEAL RING CLUTCH BOOSTER
20
SUPPORT FUEL TANK TO FRAME
20
SUPPORT FUEL TANK TO FRAME
30
SHIM SUPPORT TO FRAME 6MM
40
SHIM BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER 5 MM
50
SHIM MOUNTING PARTS 7MM
60
SHIM MOUNTING PARTS
70
STRAP FUEL TANK TO CONSOLE
80
PIN STRAP TO SUPPORT 16X80 MM
90
PIN STRAP TO SUPPORT 25X80 MM
100
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
100
PAD , Replaced By: A3144750020
110
BUSHING MOUNTING PARTS 24X16X44MM
150
STICKERWARNING
