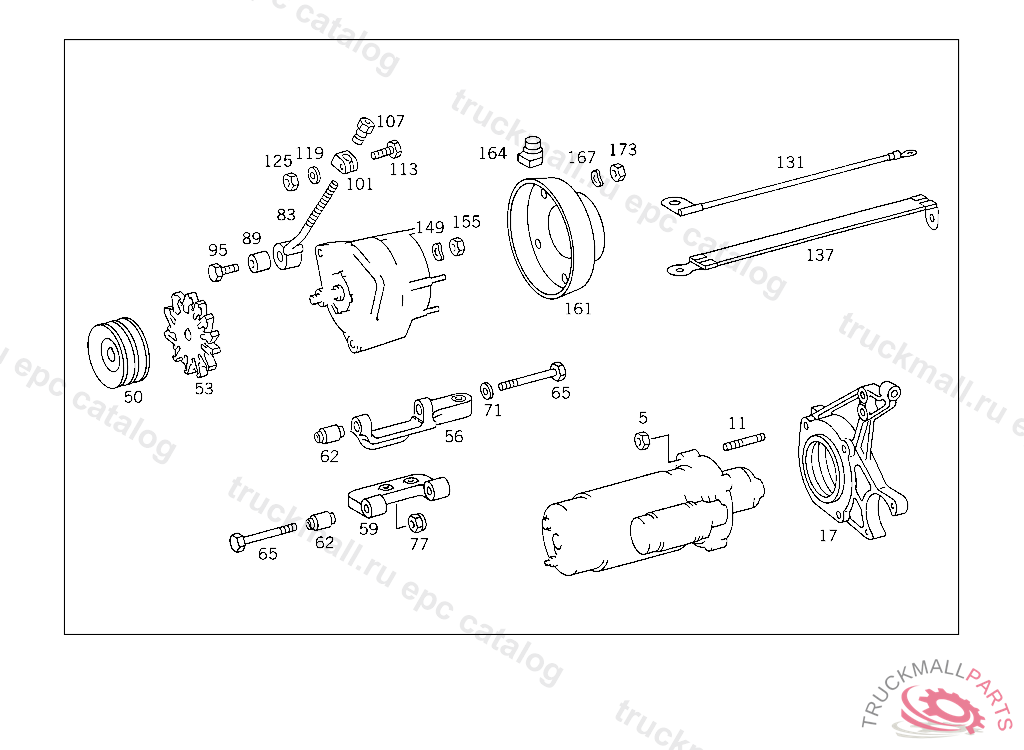

Поз.
Артикул
Описание
5
NUT
11
STUD STARTING MOTOR MOUNTING
17
INTERMEDIATE PIECE STARTING MOTOR INTERMEDIATE FLANGE
50
PULLEY
59
BRACKET ALTERNATOR
62
BUSHING
65
SCREW EXHAUST PIPE AND THROTTLE HOUSING TO EXHAUST MANIFOLD
65
BOLT. SCREW SUPPORT TO ALTERNATOR
65
HEXAGON HEAD BOLT AIR DEHYDRATOR TO BRACKET M12X55,V 207570
77
NUT BRACKET TO SIDE MEMBER M12X1.5
83
CLAMPING BOLT (CLAMPING BOLT)
89
BUSHING
95
SCREW CLAMPING BOLT TO CYLINDER CRANKCASE M 10X38
95
SCREW BRACKET TO SIDE MEMBER M10X38
101
CLAMPING PIECE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3141550228
101
CLAMPING PIECE TIGHTENER PULLEY
107
NUT TIGHTENER PULLEY TO LEVER
113
SCREW BRACKET TO FRAME
113
SCREW , Replaced By: A0089908001
131
GROUND CABLE GENERATOR TO GENERATOR SUPPORT,529890
137
GROUND STRAP FROM ENGINE SUPPORT TO FRAME,051592
149
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
149
SPRING WASHER , Replaced By: N000137008204
149
SPRING WASHER , Replaced By: N000137008212
155
NUT COVER TO CASE
161
COVER
164
GASKET
167
SPRING WASHER LICENSE PLATE TO BRACKET
173
NUT SPRING-LOADED PUSH ROD
