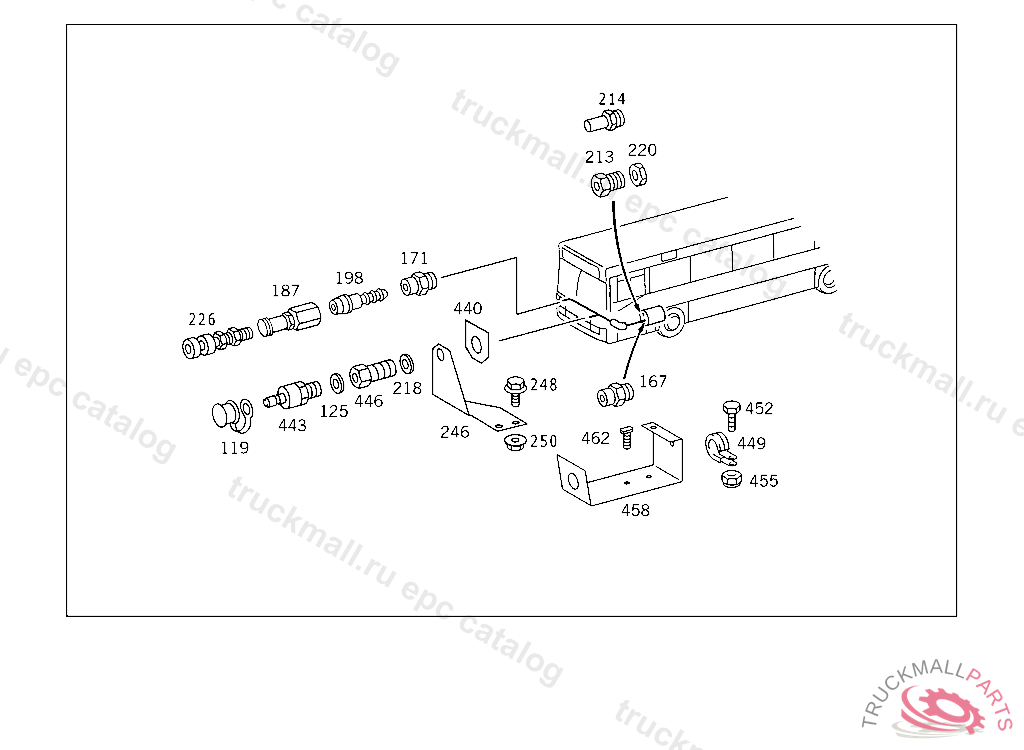

Поз.
Артикул
Описание
119
PROTECTIVE CAP TEST CONNECTIONS
119
PROTECTIVE CAP TEST CONNECTION
125
SEAL RING SCREW PLUG
125
SEAL RING FUEL LINE TO FEED PUMP
125
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
125
SEAL RING LINE CONNECTION
167
FITTING LINE CONNECTION
171
FITTING LINE CONNECTION
187
TEST CONNECTION REFILLING CONNECTION
187
TEST CONNECTION BULKHEAD FITTING
187
TEST CONNECTION
198
CONNECTOR LINE CONNECTION
213
FITTING REFILLING CONNECTION
214
FITTING RELAY VALVE,CONNECTION: "10",950459
218
SEAL RING
218
SEAL RINGTO 000 553 03 05,000 553 18 05,
218
WASHER PLATE TO SIDE MEMBER
218
SEAL RING FUEL LINE TO FEED PUMP
220
NUT BRACKET TO SIDE MEMBER
220
NUT FROM 3/2-WAY VALVE TO QUICK BREATHER VALVE,5 431227
226
COUPLING REFILLING CONNECTION
246
BRACKET REFILLING CONNECTION,FRONT
248
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
250
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
440
BRACKET TEST CONNECTION
443
BRAKE LINE COUPLING AT REAR CROSS MENBER
446
FITTING BRAKE LINE COUPLING
449
CLAMP PIPE ON FAN SHROUD
452
SCREW CAB FLOOR COVERING M 6X25
455
NUT COMPRESSED AIR LINE TO LEFT SIDE MEMBER
458
BRACKET CHECK VALVE
462
SCREW CHECK VALVE
999
VALVE BULKHEAD FITTING
999
FITTING AT BRACKET
