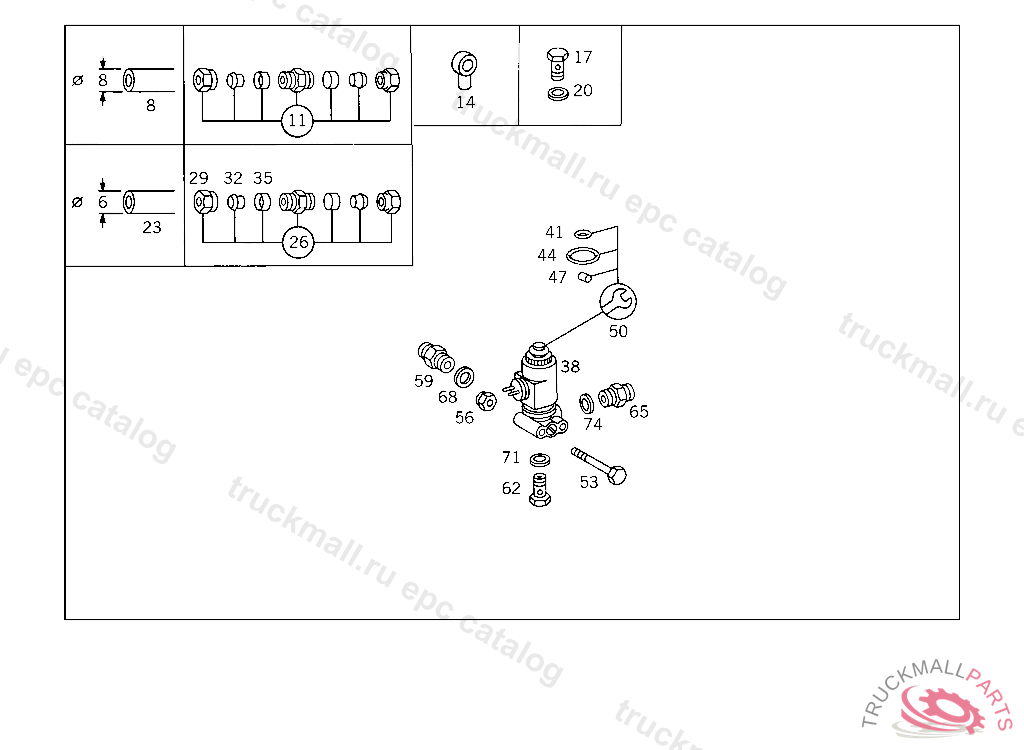

Поз.
Артикул
Описание
8
PLASTIC PIPE AERATION, ORDER BY THE METER
8
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
11
FITTING (PARTS KIT),LINE RUPTURE
14
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
14
BANJO UNION HOSE WIDTH, / I.D., 6/16 MM
17
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
20
SEAL RINGTO 006 997 00 72
23
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
23
PLASTIC PIPE RISING PIPE 4X6 MM
26
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
29
UNION NUT
32
GLAND , Replaced By: A0019901667
35
SLEEVE LEAK LINE
38
VALVE (3/2-WAY SOLENOID VALVE) EKS
38
VALVE SOLENOID VALVE,5 450429 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
38
VALVE , Replaced By: A0049975736
41
SEAL RINGWABCO
44
SEAL RING24X2 MM
47
SEAL RING VALVE TO VALVE
50
REPAIR KITTO 003 997 14 36,WABCO 472 123 19 80
53
SCREW FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
53
SCREW PLUG SOCKET TO BRACKET BEHIND CAB
56
NUT , Replaced By: N913004008001
59
FITTING SHUT-OFF VALVE,CONNECTION: "40"
62
HOLLOW SCREW HEATING CONNECTION
65
FITTING FROM 3/2-WAY VALVE TO PRESSURE CONTROL VALVE
65
FITTING , Replaced By: A0009977172
68
SEAL RING , Replaced By: N007603010110
68
SEAL RING PNEUMATIC VALVE
71
SEAL RING PRESSURE REGULATOR,CONNECTION: "23",5 161701
74
SEAL RING CHECK VALVE,CONNECTION "1",4 704213
