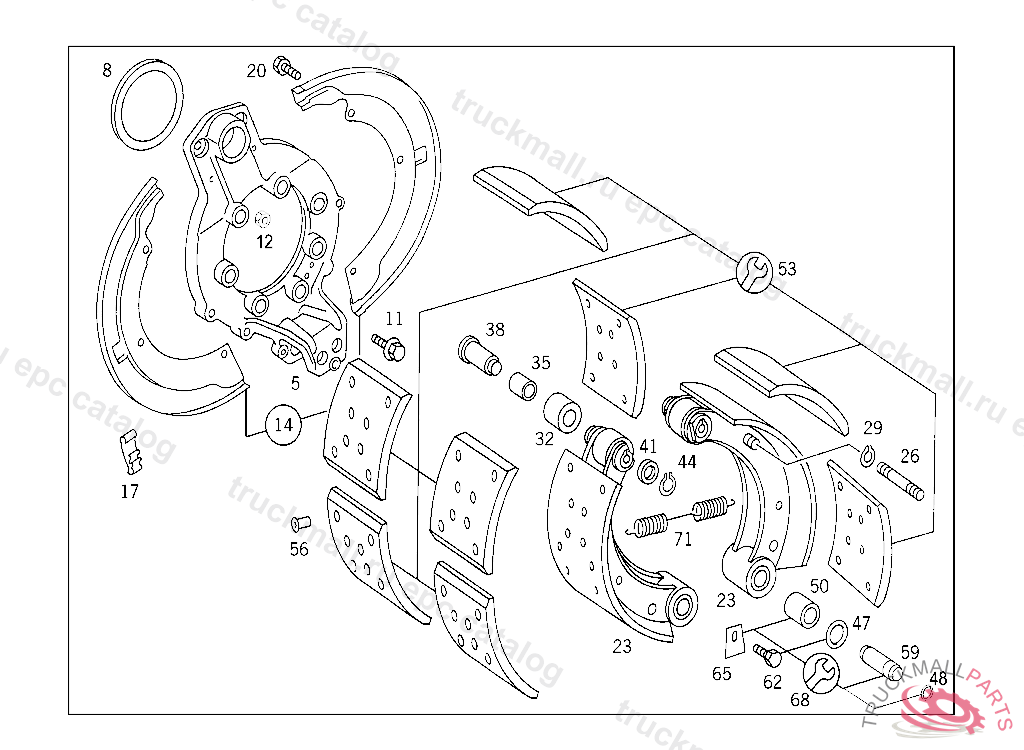

Поз.
Артикул
Описание
5
BRAKE ANCHOR (BRAKE ANCHOR)
8
OIL BAFFLE FRONT WHEEL HUB
8
OIL BAFFLE (BRAKE ANCHOR)
11
SCREW BEARING BRACKET TO BRAKE ANCHOR
11
SCREW BRAKE ANCHOR TO AXLE CASING
14
PROTECTIVE PLATE PARTS KIT
17
PLUG PROTECTIVE PLATE
20
SCREW , Replaced By: N304017010042
23
BRAKE SHOE LESS LINING, ONLY REPLACEABLE BY PAIRS
23
BRAKE SHOE BRAKE SHOE IN CAST VERSION
26
PIN RELEASE SPRING
29
LOCK RING SHOCK ABSORBER TO BRACKET,1D 006005
32
ROLLER , Replaced By: A3354200039
32
ROLLER , Replaced By: A3014200039, +002A0039971548
35
BUSHING
35
BUSHING
35
BUSHING BRAKE SHOE ROLLER
35
BUSHINGTO 301 420 00 39
38
PIN BRAKE SHOE ROLLER
41
FITTED WASHER BRAKE SHOE ROLLER
44
LOCK RING ,825817, 301,303,304,305, 868276, 311,313,314825818, 301,303,304,305, 868277, 311,313,314 SEE SPARE PARTS LIST 740.3
47
SEAL RING BRAKE SHOE PIN TO BRAKE ANCHOR
48
SEAL RING BRAKE SHOE ROLLER
50
BUSHING ,669845
50
BUSHING ,669845
50
BUSHING BRAKE SHOE BEARING
53
BRAKE LINING (PARTS KIT),REPAIR SIZE I (ASBESTOS-FREE BRAKE LINING) FRAS-LE 18.70 MM
53
BRAKE LINING (PARTS KIT),STANDARD (ASBESTOS-FREE BRAKE LINING 17.0 MM
53
BRAKE LINING (PARTS KIT),REPAIR SIZE II (ASBESTOS-FREE BRAKE LINING) 19.0 MM
53
BRAKE LINING (PARTS KIT),REPAIR SIZE II (ASBESTOS-FREE BRAKE LINING) 19.0 MM
53
BRAKE LINING (PARTS KIT),STANDARD (ASBESTOS-FREE BRAKE LINING 17.0 MM
53
BRAKE LINING (PARTS KIT),REPAIR SIZE I (ASBESTOS-FREE BRAKE LINING) 18.0 MM
56
RIVET BRAKE LINING 15 MM
56
RIVET
56
RIVET
56
RIVET , Replaced By: A3079900197
56
RIVET
59
PIN BRAKE SHOE TO BRAKE ANCHOR
59
PIN BRAKE SHOE TO BRAKE ANCHOR PLATE,078418
59
PIVOT PIN BRAKE SHOE TO BRAKE ANCHOR
62
SCREW BRAKE SHOE TO BRAKE ANCHOR M 10X16
62
SCREW , Replaced By: N910106010018
65
LOCK BRAKE SHOE TO BRAKE ANCHOR
65
LOCK BRAKE SHOE TO BRAKE ANCHOR
68
REPAIR KIT BRAKE SHOE BEARING
68
REPAIR KIT BRAKE SHOE BEARING
71
SPRING (RELEASE SPRING)
