Поз.
Артикул
Описание

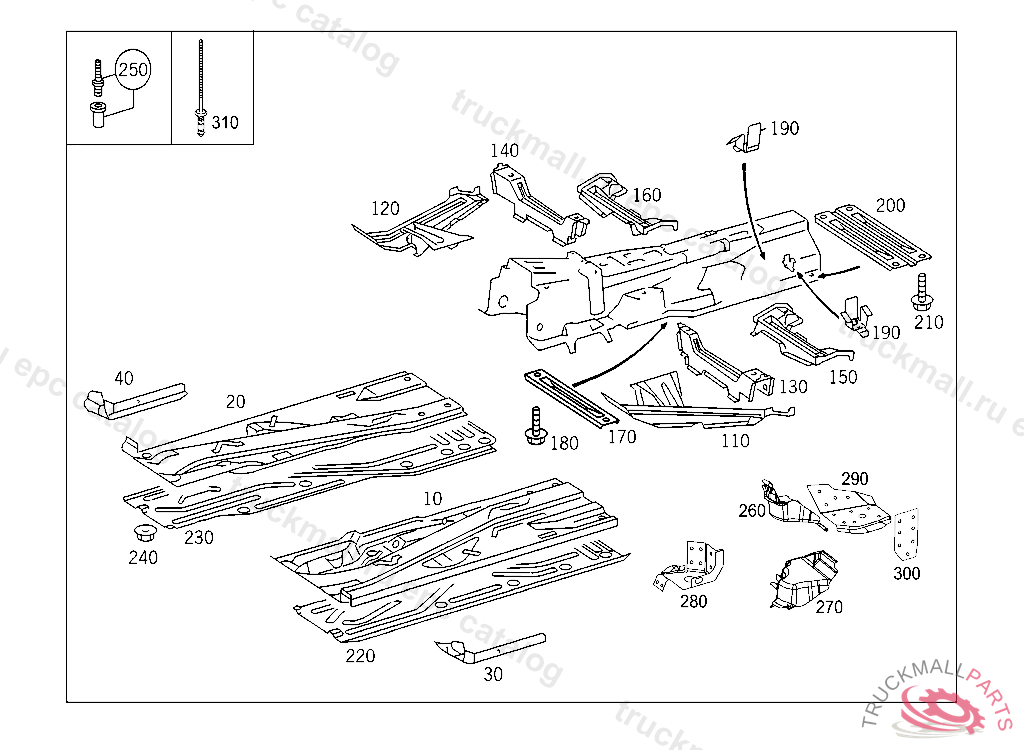

10
MAIN FLOOR LEFT, TO BE ADAPTED DURING ASSEMBLY
20
MAIN FLOOR RIGHT, TO BE ADAPTED DURING ASSEMBLY
30
REINFORCEMENT LEFT
40
REINFORCEMENT RIGHT
110
SIDE MEMBER INSIDE LEFT
120
SIDE MEMBER INSIDE RIGHT
130
CROSS MEMBER BELOW FRONT SEAT,FRONT LEFT
140
CROSS MEMBER BELOW FRONT SEAT,FRONT RIGHT
150
CROSS MEMBER BELOW FRONT SEAT,REAR LEFT
160
CROSS MEMBER BELOW FRONT SEAT,REAR RIGHT
170
STIFFENING FRONT SEAT CROSS MEMBER
180
SCREW BRACKET TO SIDE MEMBER M8X20
190
CONSOLE PROPELLER SHAFT BEARING IN TUNNEL CENTER
200
STIFFENING CROSS MEMBER BELOW REAR SEAT
210
HEXALOBULAR BOLT BRACKET MOUNTING M8X16,V 207570
220
COVER BELOW MAIN FLOOR,LEFT
230
COVER BELOW MAIN FLOOR,RIGHT
240
PLASTIC NUT. NUT
250
SCREW (PARTS KIT) PARTITION PANEL TO WHEELHOUSE
260
REINFORCEMENT REAR FLOOR
270
REINFORCEMENT REAR FLOOR
280
REINFORCEMENT IN FRONT OF REAR AXLE,LEFT
280
REINFORCEMENT IN FRONT OF REAR AXLE,RIGHT
290
REINFORCEMENT BEHIND REAR AXLE,LEFT
290
REINFORCEMENT BEHIND REAR AXLE,RIGHT
300
REINFORCEMENT REAR OUTSIDE
310
BLIND RIVET REPAIR SOLUTION 6,4 X 12MM / 1-3,5MM, NO LONGER AVAILABLE RIVET ONLY VALID FOR BR222. REPAIR INFORMATION SEE WIS. ADDITIONAL INFORMATION ON TECHNICAL MARKET SUPPORT
