Поз.
Артикул
Описание

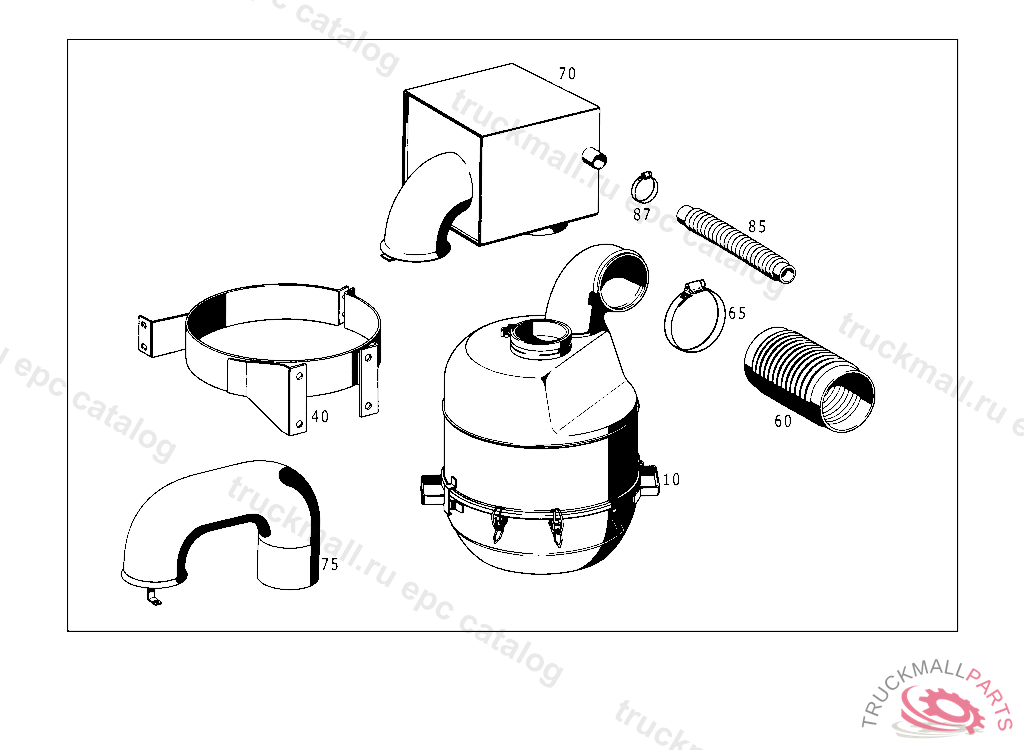

40
SUPPORT AIR CLEANER
60
HOSE FROM AIR INTAKE PIPE TO ENGINE
60
HOSE , Replaced By: A6235280082
65
CLAMP , Replaced By: N000000000678
65
CLAMP HOSE TO AIR CLEANER AND CAB CONSOLE 130-150X13 MM, Replaced By: N000000005892
70
AIR INTAKE CASE
75
AIR INTAKE PIPE
85
HOSE INTAKE MUFFLER TO ENGINE
87
CLAMP
87
CLAMP , Replaced By: N000000000670
999
HOSE , Replaced By: A6205280782
999
SNAP RING DIA., 150 MM
999
999
999
SUPPORT AIR CLEANER
999
HOSE GUIDE TUBE TO OIL PAN, 451,452,454,461,462,464 UP TO CHASSIS 809916 EXCEPT FOR 798601,806497,809273,809448,809674.
999
CLAMP
999
WASHER
999
SCREW , Replaced By: N304017008027
999
SCREW END PIECE TO EXHAUST PIPE M 10X25
999
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
999
NUT , Replaced By: N304032010002
999
NUT STRAP TO SUPPORT
999
NUT , Replaced By: N308673014001
999
SCREW , Replaced By: N308676012012
999
SCREW CONSOLE TO SIDE MEMBER
999
SCREW , Replaced By: N308676014020
999
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
999
NUT
999
NUT
999
NUT BRACKET TO SIDE MEMBER,K 035196
999
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
999
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
999
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
999
LOCK WASHER FITTING TO BRACKET
999
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
999
CLAMP , Replaced By: N000000000671
