Поз.
Артикул
Описание
21

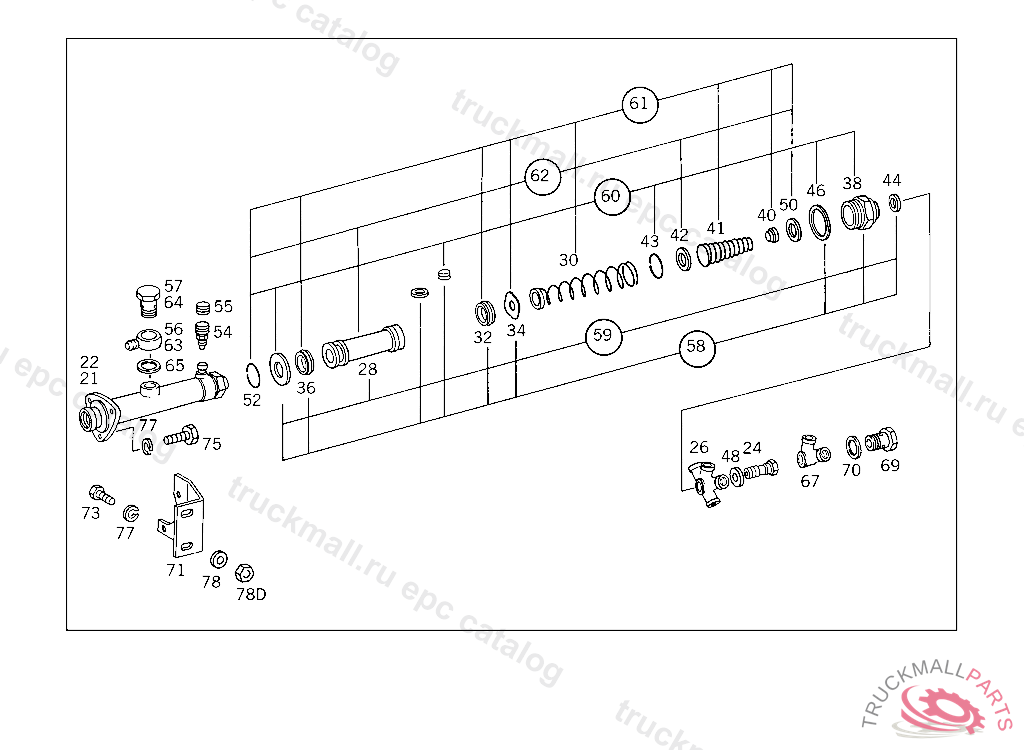

BRAKE MASTER CYLINDER FRONT/REAR BRAKE CIRCUIT
21
BRAKE MASTER CYLINDER , Replaced By: A3454307701, +001A3454287324, +001A3454287126, +001A3454287030, +002N007603014106, +001N007603022102
22
BRAKE MASTER CYLINDER FRONT/REAR BRAKE CIRCUIT "VARGA"
22
BRAKE MASTER CYLINDER , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3454307301, +001A3454287524, +001A3454287026, +001A3454287126, +001A3454287030, +002N007603014106, +002N007603022102
22
BRAKE MASTER CYLINDER FRONT/REAR BRAKE CIRCUIT
24
HOLLOW SCREW DISTRIBUTOR TO MASTER CYLINDER
24
HOLLOW SCREW , Replaced By: A3454287126
26
DISTRIBUTORTO 345 430 73 01
26
DISTRIBUTORTO 345 430 73 01
26
DISTRIBUTOR , Replaced By: A3454288024
28
PISTONTO 002 430 27 01
30
SPRINGTO 345 430 73 01
30
SPRING
32
SEAL RINGTO 344 430 73 01
34
SPRING RETAINERTO 002 430 27 01
36
SEAL RING BRAKE MASTER CYLINDER, UP TO IDENT NO. 734559,FROM CHASSIS,STANDARD EQUIPMENT
38
THREADED UNIONTO 345 430 73 01
38
THREADED UNIONTO 002 430 41 01
38
THREADED UNIONTO 345 430 77 01
40
BOTTOM VALVE. VALVE , Replaced By: A0015861543
41
SPRINGTO 345 430 73 01
42
WASHERTO 002 430 41 01, NO LONGER AVAILABLE INDIVIDUALLY, BUT ONLY IN REPAIR KIT
43
SNAP RINGTO 002 430 41 01, NO LONGER AVAILABLE INDIVIDUALLY, BUT ONLY IN REPAIR KIT
44
WASHER , Replaced By: A0004311176
46
SEAL RINGTO 002 430 41 01
48
SEALING RING. SEAL RING ENGINE BREATHING
50
SEAL RING AT TANK
52
LOCKTO 345 430 77 01
52
LOCK
54
VALVE BREATHER
55
PROTECTIVE CAPTO001 295 91 07
56
CONNECTOR REFILLING LINE TO BRAKE MASTER CYLINDER
57
HOLLOW SCREW REFILLING LINE TO BRAKE MASTER CYLINDER
58
REPAIR KIT MINOR TO 345 430 77 01
59
REPAIR KIT MAJOR TO 345 430 77 01
60
REPAIR KITTO 002 430 41 01
61
REPAIR KITTO 345 430 73 01
62
REPAIR KITTO 345 430 73 01
63
CONNECTOR REFILLING LINE TO BRAKE MASTER CYLINDER
64
HOLLOW SCREW REFILLING LINE TO BRAKE MASTER CYLINDER
65
SEAL RING LINE CONNECTION
67
DISTRIBUTORTO 345 430 73 01
67
RINGSTUTZEN. DISTRIBUTOR BRAKE MASTER CYLINDER, 600253-601115
67
DISTRIBUTORTO 345 430 73 01
67
DISTRIBUTOR , Replaced By: A3454288024
69
HOLLOW SCREW DISTRIBUTOR TO MASTER CYLINDER
70
SEAL RINGTO 000 553 03 05,000 553 18 05,
71
BRACKET
73
SCREW CROSS MEMBER TO SIDE MEMBERS
75
SCREW , Replaced By: N304017010002
75
SCREW , Replaced By: N304017010002
75
SCREW , Replaced By: N304017010002
77
LOCK WASHER , Replaced By: N912004010102
77
LOCK WASHER , Replaced By: N912004010102
78
WASHER GROUND CABLE
999
REPAIR KITTO 001 431 98 06
999
HOHLSCHRAUBE FUR. HOLLOW SCREW MASTER CYLINDER,CONNECTION "2.1",4 338292
999
HOLLOW SCREW
999
CONNECTOR
999
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
999
SPRING RETAINERTO 000 429 63 44,000 429 59 44
999
THRUST RING LOCKING VALVE TO TRAILER CONTROL VALVE,CONNECTION: "42"
999
DIAPHRAGMTO 001 429 48 44
999
HOSE FROM FITTING TO RIGHT DIAPHRAGM CYLINDER 8 X 14 MM, ORDER BY THE METER4 940458
999
VALVE (OVERFLOW VALVE) WESTINGHOUSE
999
999
REPAIR KIT LARGE SCOPE TO 000 434 30 01
999
REPAIR KIT LARGE SCOPE TO 345 431 70 05
999
REPAIR KITTO 000 430 55 81,WABCO, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
REPAIR KIT , Replaced By: A0004304206
999
999
BREATHER PIPETO 001 431 83 05,WABCO
999
PROTECTIVE CAP BRAKE BOOSTER
999
FILLER RINGTO 001 431 83 05,WABCO
999
SEAL RING
999
CUPBOSCH
999
VALVEWABCO,002 0,012 0
999
FILLER CAP
999
PISTONTO 001 431 83 05,WABCO
999
PISTONTO 345 431 71 05
999
PISTONTO 002 431 27 05
999
PISTONTO 002 431 27 05
999
PISTONTO 345 431 70 05
999
CUPTO 000 431 76 14
999
CUP 3/2-WAY VALVE WABCO
999
GASKETTO 000 429 16 30
999
REPAIR KIT , Replaced By: A0004305760
999
O-RING CHECK VALVE TO AIR RESERVOIR
999
ELBOW FITTING ANTI-FREEZE DEVICE,CONNECTION: "10", BUTT CONNECTION
999
SPRING
999
SPRINGWABCO,002 0,012 0
999
SPRINGBOSCH,5 7999995 800000 - 5 8127305 900000 - 5 936365
999
THRUST RING CHECK VALVE TO AIR RESERVOIR
999
FITTING
999
HANDLETO 000 434 23 01
999
HANDLETO 345 430 73 81
999
VALVE (OVERFLOW VALVE) BOSCH
999
VALVE (OVERFLOW VALVE) WABCO
999
VALVE (OVERFLOW VALVE) GRAU
999
REPAIR KIT SMALL SCOPE TO 345 431 70 05
999
REPAIR KIT , Replaced By: A0004304106
999
REPAIR KIT SMALL SCOPE TO 000 434 30 01
999
CUP , Replaced By: A0014312386
999
CUPTO BOSCH-NR.0481 027 104
999
CUP101
999
SPRINGTO BOSCH-NR.0481 027 024
999
SPRINGTO 345 431 70 05
999
SPRINGTO 345 431 70 05
999
SPRINGTO 001 431 83 05
999
SPRINGTO 345 431 71 05
999
PRESSURE REGULATOR"KNORR",FB486598 USED WITH HYDRAULIC BRAKE,345.000-008,021,024,025,033 UP TO IDENT NO. FB588185
999
REPAIR KITBOSCH
999
SPRINGTO 000 429 63 44,000 429 59 44
999
FITTING AIR RESERVOIR,CONNECTION: "13"
999
FITTING , Replaced By: A0039978972
999
FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
999
FITTING
999
999
REPAIR KITTO 001 431 12 06, KNORR 3200
999
SEAL RING
999
REPAIR KIT SMALL SCOPE TO 345 430 73 81
999
LOCK , Replaced By: N000472060000
999
LOCK , Replaced By: N000472045000
999
LOCK , Replaced By: N000984038000
999
LOCK , Replaced By: N000472047001
999
LOCKTO 345 431 70 05
999
SEAL RING , Replaced By: A0179974148
999
SEAL RING18.72X2.62 MM,WABCO,002 0,012 0
999
SEAL RINGTO 000 434 23 01
999
SEAL RINGTO 000 434 23 01
999
WASHER , Replaced By: A3454317076
999
WASHER , Replaced By: A3454317376
999
CUPTO 344 430 73 01
999
CUP , Replaced By: A3454317286
999
PISTON
999
SEAL RING17.12X2.62 MM, 402,407 FROM CHASSIS 657000
999
SEAL RINGTO 000 434 30 01
999
SEAL RINGTO 000 434 30 01
999
SEAL RINGTO 000 434 30 01
999
SEAL RINGTO 000 434 30 01
999
THRUST RING LOCKING VALVE
999
999
CONSOLE
999
BRACKET HAND-BRAKE/TRAILER-BRAKE COMPRESSEDAIR LINE
999
999
REPAIR KITTO 000 429 28 44
999
CLAMP
999
LOOM TIE. CLAMP HOSE TO HEATING PIPE
999
ELBOW FITTING
999
VALVE , Replaced By: A0004320807
999
WASHERTO 002 430 71 01
999
PRESSURE REGULATOR"WABCO",486597
999
CUPTO 344 430 73 01,002 430 27 01
999
WASHERTO 344 430 73 01,002 430 27 01
999
VALVE"WABCO DO BRASIL", USED WITH AIR BRAKE
999
ELBOW FITTINGTO 28.2.2 R
999
LOOM TIE
999
HOSE BREATHER LINE TO 001 431 83 05
999
ELECTRIC CABLE FROM FIRE WALL TO EMERGENCY RELEASE VALVE
999
ROD REAR
999
ROD FROM LEVER TO DOUBLE LEVER, 345.401,402,403,406,407,408 FROM CHASSIS 548304 USED WITH HYDRAULIC BRAKE,UP TO CHASSIS 588185
999
ROD FROM BRAKE SHAFT TO BRAKE LEVER
999
999
999
999
999
999
999
999
BRACKET BATTERY CABLE
999
999
ROD , Replaced By: A3584200174
999
ROD REAR, REAR AXLE I,4 272929
999
COVER , Replaced By: A0004312892
999
REPAIR KITTO 000 431 21 14
999
REPAIR KIT , Replaced By: A0034301181
999
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
999
COTTER PIN STRAP TO SUPPORT
999
WASHER TRAILER PLUG SOCKET TO BRACKET
999
LOCK WASHER PLUG SOCKET
999
LOCK WASHER EXTENSIBLE BRAKE VALVE TO CAB
999
SPRING WASHER CABLE TO ALTERNATOR
999
SPRING WASHER CAB FLOOR
999
LOCK RINGTO 345 431 71 05
999
LOCK RING
999
LOCK RING PLANETARY CARRIER
999
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "22"
999
SCREW BRACKET TO SIDE MEMBER,A 069681
999
SCREW PLUG SOCKET TO FRAME
999
SCREW PISTON ROD TO CLUTCH PEDAL
999
NUT TACHOGRAPH TO BRACKET
999
NUT
999
HEX, NUT. NUT L.H. THREAD
999
NUT PULL ROD
999
NUT LOCKING VALVE TO TRAILER CONTROL VALVE,CONNECTION: "42"
999
LOCK RINGTO 345 431 71 05
999
TURNBUCKLE , Replaced By: A3859960034
999
GLAND , Replaced By: A0019901667
999
GLAND LINE CONNECTION
999
GLAND LINE CONNECTION
