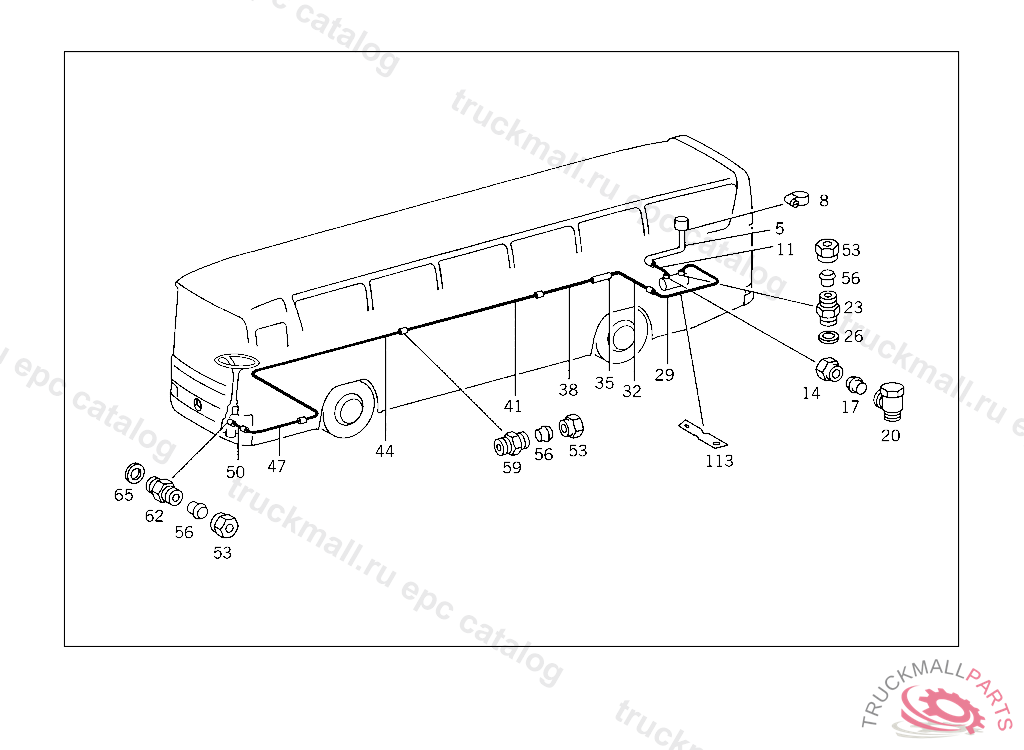

Поз.
Артикул
Описание
5
HOSE
8
CLAMP25-40X13 MM
8
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
11
LINE FROM HOSE TO OIL PUMP 620 MM
14
NUT LINE CONNECTION
14
UNION NUT LINE CONNECTION, Replaced By: N000000006243
17
GLAND , Replaced By: A0019901267
20
FITTING SUCTION LINE TO OIL PUMP
23
FITTING POWER STEERING PUMP M16X1,5/M22X1,5,D 084765
26
SEAL RINGTO 006 997 00 72
29
LINE FROM POWER STEERING PUMP TO HOSE 845 MM
35
EXPANSION HOSE FROM POWER STEERING PUMP AT ENGINE TO CUT-IN VALVE
35
HOSE , Replaced By: A0269972582
35
HOSE FROM PUMP TO DELIVERY LINE
38
LINE FROM HIGH PRESSURE HOSE TO CONNECTOR 2375 MM
47
LINE FROM PUMP TO STEERING 1280 MM
50
LINE FROM PUMP TO STEERING
50
TUBE FROM HIGH PRESSURE HOSE TO STEERING, LENGTH AVAILABLE: 3000 MM
50
TUBE FROM HIGH PRESSURE HOSE TO STEERING, LENGTH AVAILABLE: 3000 MM
50
TUBE FROM HIGH PRESSURE HOSE TO STEERING, LENGTH AVAILABLE: 3000 MM
50
TUBE FROM HIGH PRESSURE HOSE TO STEERING, LENGTH AVAILABLE: 3000 MM
53
UNION NUT LINE CONNECTION
56
GLAND LINE CONNECTION
59
CONNECTION FITTING ENGINE AIR COMPRESSOR,CONNECTION: "15"
62
FITTING POWER STEERING PUMP M16X1,5/M22X1,5,D 084765
65
SEAL RINGTO 006 997 00 72
113
BRACKET HIGH PRESSURE LINE
999
LINE FROM CONNECTION FITTING VI TO OIL TANK 22 MM
999
LINE FROM OIL TANK TO HOSE 1370 MM, WITH MERCEDES-BENZ BODY FROM IDENT NO. 041551,LESS MERCEDES-BENZ BODY FROM IDENT NO. 041481051745
999
LINE FROM OIL TANK TO HOSE
