Главная
›
Mercedes
›
ENGINE
›
OM 611 DE LA
›
611.962 MOTOR IDENT-NR. 6119XX 5
›

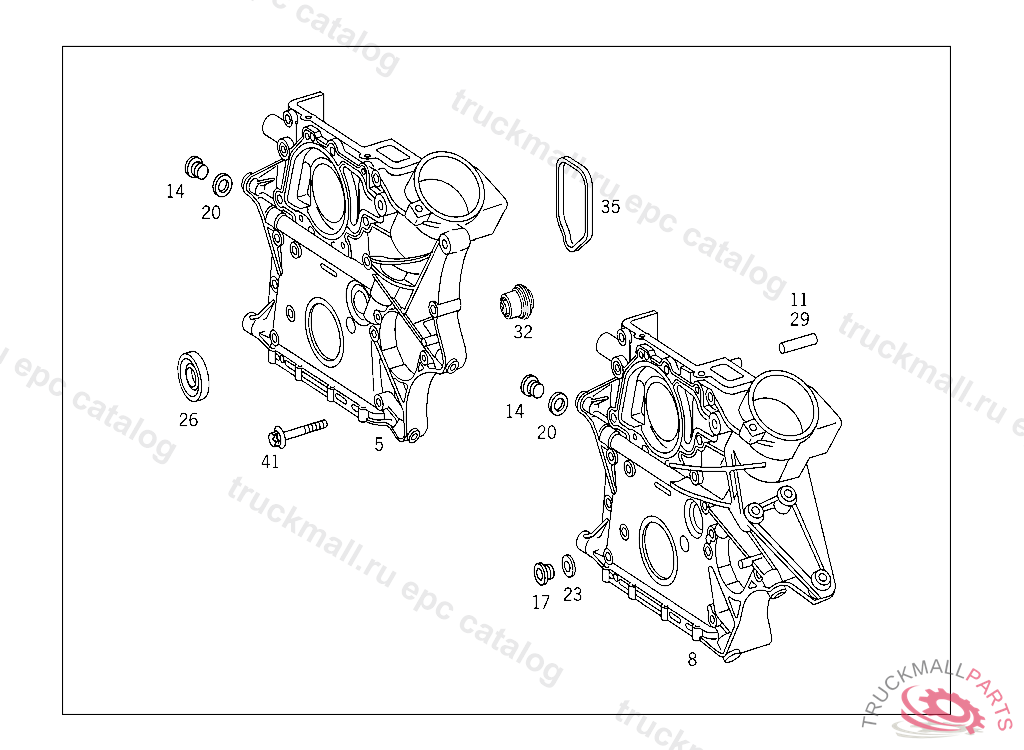

01 ENGINE HOUSING
›
030 TIMING CASE
Mercedes N000908022011 - Болт
OM 611 DE LA 611.962 MOTOR IDENT-NR. 6119XX 5
01 ENGINE HOUSING - 030 TIMING CASE
Поз.
Артикул
Описание
8
A6110101133
TIMING CASE
8
A6110100933
TIMING CASE , FROM MODEL YEAR 2000CODE 800
11
A6119970010
PIN
14
N000908022011
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
17
N000000000648
SCREW PLUG, FILLING HOUSING,BOTTOM
20
N007603022100
SEAL RINGTO 376 131 74 01
23
N007603010100
SEAL RINGTO 001 431 72 14
26
A0219977647
SEAL RING , Replaced By: A0239978447
26
A0239978447
SEAL RING DRIVE PINION
29
A6119970010
PIN
32
A6111800115
PRESSURE RELIEF VALVE NON-RETURN VALVE AT TIMING CASE
35
A6110150180
GASKET
41
N910143008019
HEXALOBULAR BOLT. SCREW CLAMP ON BRACKET M 8X60
41
N910143008011
HEXALOBULAR BOLT UNDERRUN PROTECTION TO CROSS MEMBER M8X90
41
N910143008010
HEXALOBULAR BOLT BRACKET TO BRACKET
