Поз.
Артикул
Описание

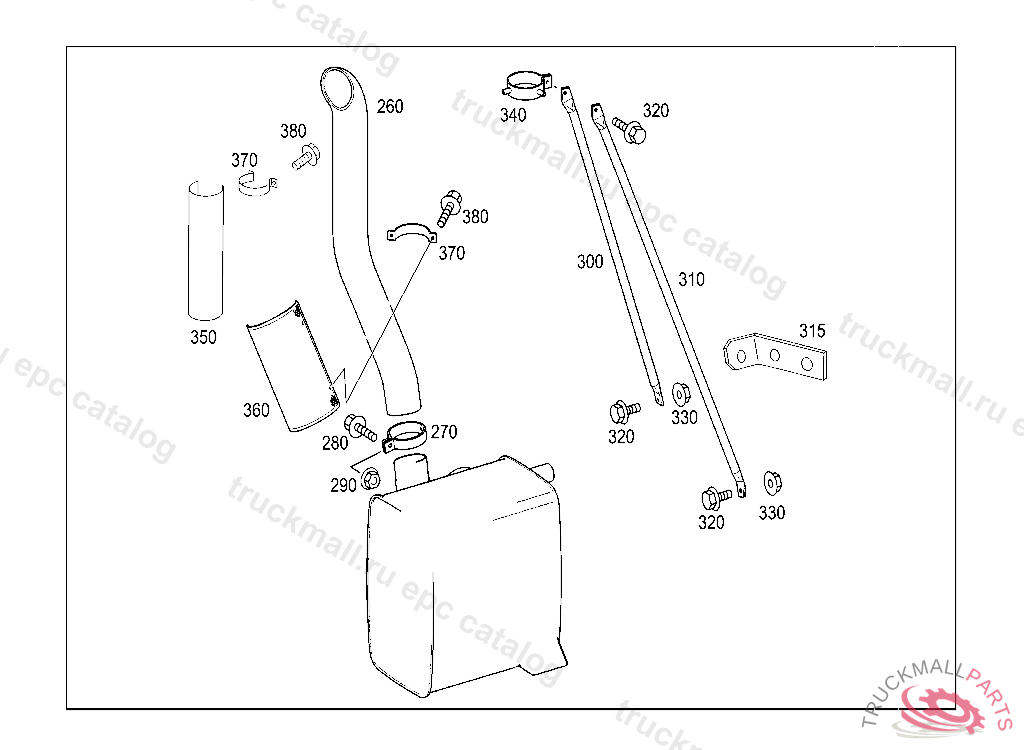

260
REAR EXHAUST PIPE (TAIL PIPE), USED WITH SHORT DAIMLER-BENZ CAB
260
REAR EXHAUST PIPE (TAIL PIPE)
270
CLAMP EXHAUST PIPE TO MUFFLER
280
HEXAGON HEAD BOLT BRACKET TO BRACKET M10X35
290
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
300
REINFORCEMENT EXHAUST PIPE TO SIDE MEMBER,FRONT
300
REINFORCEMENT EXHAUST PIPE TO SIDE MEMBER,REAR
310
REINFORCEMENT EXHAUST PIPE TO SIDE MEMBER,REAR
310
REINFORCEMENT EXHAUST PIPE TO SIDE MEMBER,REAR
315
320
HEXAGON HEAD BOLT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER M14X1.5X40
320
SCREW PLATE TO FRAME M 10X45
320
HEXAGON HEAD BOLT. SCREW BRACKET TO TRANSMISSION M 10X50
320
HEXAGON HEAD BOLT. SCREW SUPPORT TO SIDE MEMBER M 14X1.5X50
330
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
330
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
340
CLAMP STRUT TO EXHAUST PIPE
350
PROTECTIVE PLATE UPPER EXHAUST PIPE
360
PROTECTIVE PLATE LOWER EXHAUST PIPE
360
PROTECTIVE PLATE LOWER EXHAUST PIPE
370
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
380
HEXALOBULAR BOLT BRACKET MOUNTING M8X16,V 207570
380
SCREW. HEXALOBULAR BOLT MOUNTING FRAME TO SUPPORT M 8X30
