Mercedes A4039970230 - Резьбовая пробка картера с магнитом M 26 x 1 5 OM352 502

OM 364 LA 374.987

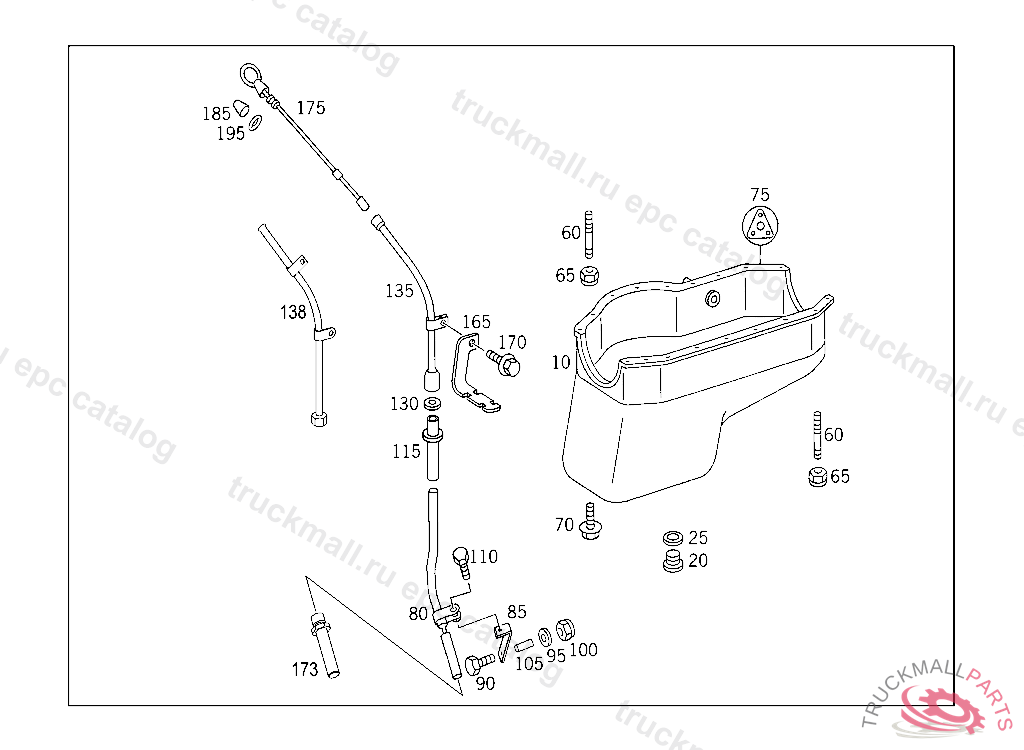

01 ENGINE HOUSING - 060 OIL PAN & OIL LEVEL DISPLAY IL. 1

Поз.
Артикул
Описание
10
A3640100013
OIL PAN
20
A4039970230
SCREW PLUG
25
N007603026109
SEAL RING OIL DRAIN 26X34 MM
60
N000835008180
STUD OIL PAN TO CYLINDER CRANKCASE
65
N914440008000
NUT HEAT PROTECTION PLATE ON EXHAUST PIPE
70
N914008006001
COMBINATION BOLT INSTRUMENT PANEL TO FRONT PANEL PILLAR
75
A3640101180
GASKET KIT OIL PAN, UP TO ENGINE 209443 YEAR OF MANUFACTURE 1977 PLATE-IRON OIL PAN
115
A3640100077
FITTING GUIDE TUBE TO OIL PAN
130
N003770012000
ROUND SECTION SEAL RING GUIDE TUBE TO OIL PAN
135
A3740107066
GUIDE TUBE OIL DIPSTICK UPPER PART
170
N000933008048
SCREW BRACKET TO SIDE MEMBER
175
A3640100872
OIL DIPSTICK
185
A3660180106
CAP
195
A0149974148
SEAL RING
