Поз.
Артикул
Описание

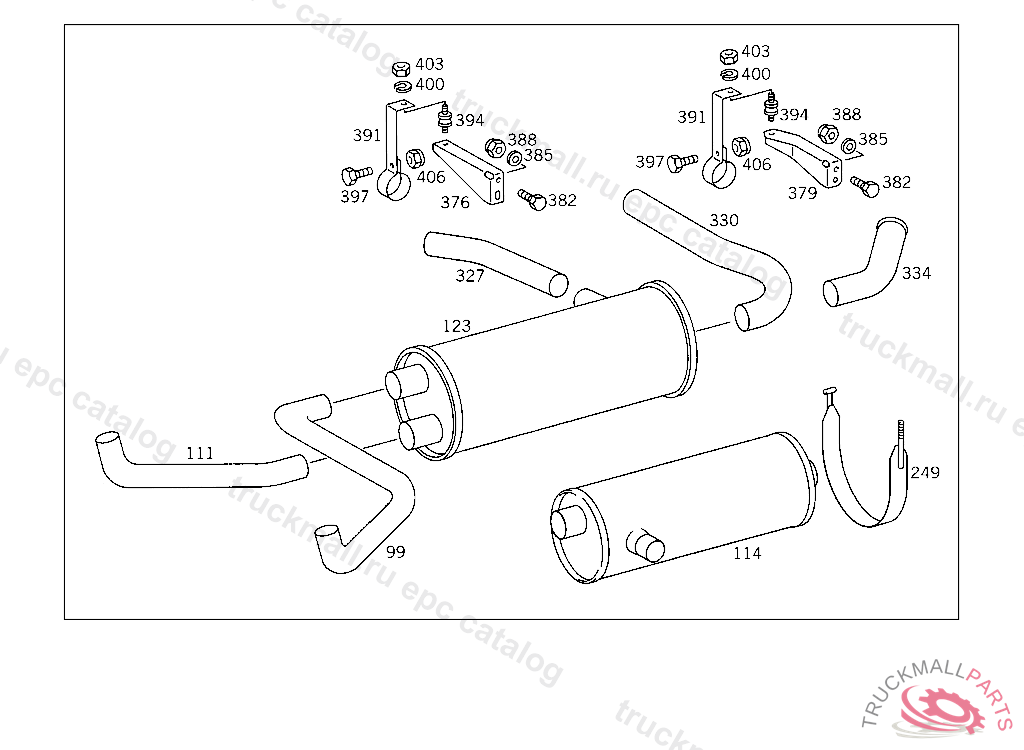

99
EXHAUST PIPE FRONT,REAR LEFT PART
111
EXHAUST PIPE FRONT,REAR RIGHT PART
114
EXHAUST MUFFLER
123
EXHAUST MUFFLER CENTRAL
123
EXHAUST MUFFLER
249
STRAP , Replaced By: A6554900942
249
STRAP PARTICLE FILTER
327
REAR EXHAUST PIPE
330
REAR EXHAUST PIPE
334
REAR EXHAUST PIPE TAIL PIPE,FRONT
334
REAR EXHAUST PIPE
376
BRACKET EXHAUST MUFFLER, TO BE ADAPTED DURING ASSEMBLY
379
SUPPORT REAR EXHAUST PIPE
382
SCREW HOLLOW RUBBER SPRING TO CAB,5 956657
382
SCREW EXHAUST PIPE TO BRACKET
385
WASHER , Replaced By: N000125010532
385
WASHER RADIATOR TO RUBBER MOUNTING
388
NUT , Replaced By: N910113010000
388
NUT STRAP TO BRACKET
391
BRACKET TAIL PIPE
394
RUBBER BUFFER BRACKET TO SUPPORT
397
SCREW END PIECE TO EXHAUST PIPE M 10X25
400
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
403
NUT BRACKET TO SUPPORT AND TO END PIECE
406
NUT , Replaced By: N910113010000
406
NUT STRAP TO BRACKET
999
DAMPING PAD PARTICLE FILTER
999
BRACKET RUBBER BUFFER,5 129244
999
BRACKET EXHAUST PIPE, TO BE ADAPTED DURING ASSEMBLY
999
SUPPORT TAIL PIPE
999
BRACKET , Replaced By: A3834927941
999
SUPPORT REAR EXHAUST MUFFLER
999
CLAMP LINE MOUNTING
