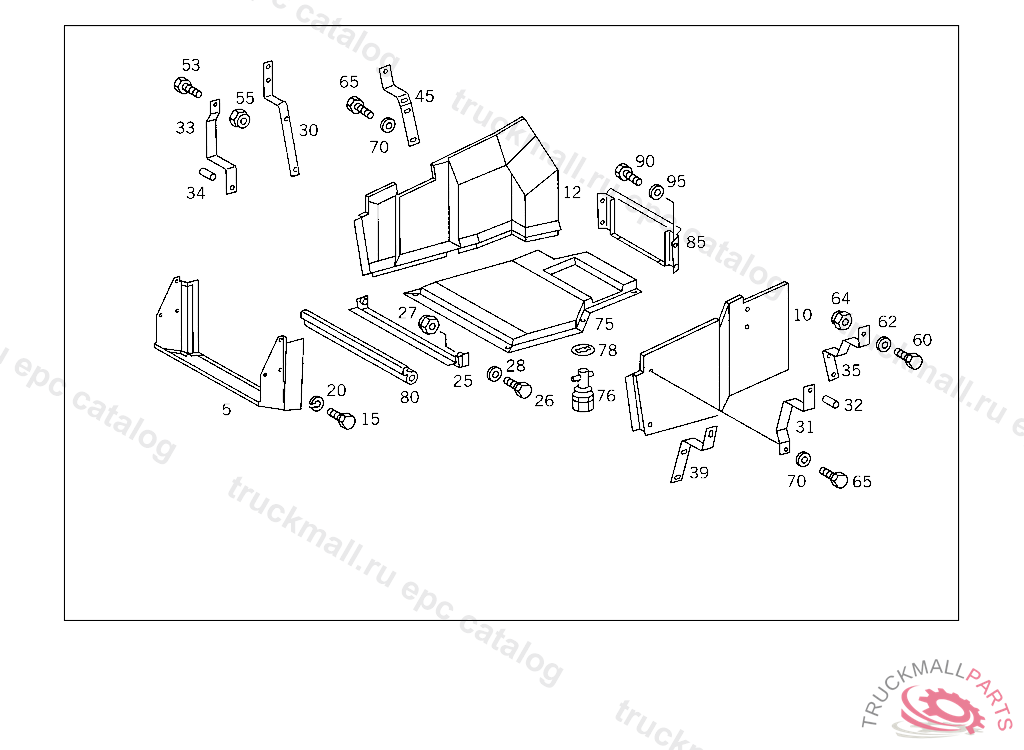

Поз.
Артикул
Описание
5
COVERING ANTINOISE CAPSULE
5
COVERING FRONT
5
COVERING FRONT
5
COVERING FRONT
5
COVERING FRONT
5
COVERING FRONT
10
COVERING LEFT
10
COVERING LEFT
10
COVERING LEFT
10
COVERING LEFT
10
COVERING LEFT
10
COVERING LEFT
12
COVERING RIGHT,5 352480
12
COVERING RIGHT
12
COVERING ,5 352479, Replaced By: A6205205022, +001A6215242340, +002N000125013008, +002N000961012097, +002N913004012002
12
COVERING RIGHT
12
COVERING RIGHT,5 352480
12
COVERING ,5 352479, Replaced By: A6215204122, +001A6215242340, +002N000125013008, +002N000961012097, +002N913004012002
15
SCREW BRACKET ON LOAD SENSOR
20
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
25
RAIL (CONNECTING LEDGE)
25
RAIL (CONNECTING LEDGE)
26
SCREW , Replaced By: N304017008034
26
SCREW BRACKET TO CROSS CONNECTION STRUT
26
SCREW EXHAUST PIPE TO BRACKET
27
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
27
NUT , Replaced By: N913004008001
28
WASHER EXHAUST MUFFLER TO STRAP
28
WASHER , Replaced By: N000125008443
30
BRACKET FRONT LEFT
30
BRACKET FRONT RIGHT
31
BRACKET FRONT LEFT
31
BRACKET LEFT FRONT
32
CYLINDRICAL PIN RIGHT FRONT
33
BRACKET FRONT RIGHT
33
BRACKET RIGHT FRONT
34
CYLINDRICAL PIN RIGHT FRONT
35
BRACKET LEFT REAR
35
BRACKET LEFT REAR, NOT USED
35
BRACKET LEFT REAR,5 352479
35
BRACKET LEFT REAR
39
BRACKET RIGHT
39
BRACKET LEFT
45
BRACKET RIGHT REAR
45
BRACKET RIGHT REAR,5 352480
45
BRACKET RIGHT REAR
45
BRACKET RIGHT REAR,5 352479
53
SCREW LEFT AND RIGHT CONSOLES TO CAB
53
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
53
SCREW , Replaced By: N304017008018
53
SCREW SUPPORT TO FENDER
53
SCREW , Replaced By: N308676012015
53
SCREW ,5 903514, Replaced By: N000960012353
53
SCREW TORSION BAR TO SHACKLE,5 903514
55
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
55
NUT , Replaced By: N910113012003
55
NUT , Replaced By: N913004008001
55
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
60
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
60
SCREW , Replaced By: N000961016097
60
SCREW SUPPORT TO TRANSMISSION M 16X1.5X60
60
SCREW , Replaced By: N308676016005
60
SCREW , Replaced By: N308676012026
60
SCREW BEARING BRACKET TO SIDE MEMBER
62
WASHER
64
NUT COMBINATION CYLINDER TO BEARING BRACKET
64
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
64
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
64
NUT , Replaced By: N910113012003
65
SCREW EXHAUST PIPE TO BRACKET
65
SCREW , Replaced By: A4609900601
65
SCREW , Replaced By: N304017008034
65
SCREW BRACKET TO BATTERY/APPARATUS SUPPORT
65
SCREW CLAMP TO BRACKET AND TO PIPE
65
SCREW BRACKET TO CROSS CONNECTION STRUT
70
WASHER EXHAUST MUFFLER TO STRAP
70
WASHER , Replaced By: N000125008443
75
COVERING BOTTOM
75
COVERING BOTTOM
75
COVERING BOTTOM
75
COVERING BOTTOM
76
LOCKING PIN
78
LOCK PROTECTIVE PLATE TO BRACKET
80
BOOT (CONNECTING LEDGE), ORDER BY THE METER
85
COVERING REAR
90
SCREW CLAMP TO BRACKET AND TO PIPE
90
WASHER BRACKET TO LEFT SIDE MEMBER
90
WASHER , Replaced By: N009021008213
95
WASHER
999
BRACKET , Replaced By: A6555201441
999
BRACKET , Replaced By: A6555201341
