Поз.
Артикул
Описание

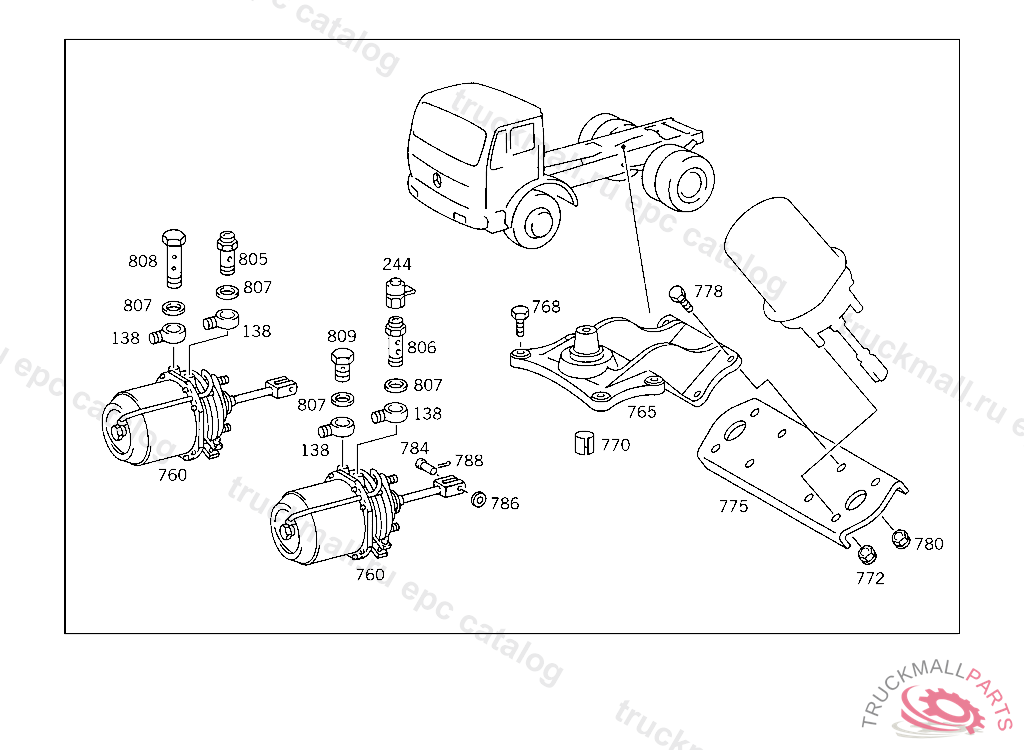

138
BANJO UNION HOSE WIDTH, / I.D., 9/16 MM
244
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
244
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
244
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
244
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
244
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
244
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
244
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
244
TEST CONNECTION
760
WHEEL BRAKE CYLINDER TRISTOP CYLINDER KNORR 16/24,K 186393
760
WHEEL BRAKE CYLINDER TRISTOP CYLINDER BOSCH 16/24,K 186393 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
760
WHEEL BRAKE CYLINDER TRISTOP CYLINDER WABCO 16/24,K 186393
760
WHEEL BRAKE CYLINDER TRISTOP CYLINDER GRAU 16/24,K 186393
765
BEARING BRACKET WHEEL CYLINDER, IN CASE OF CAST AXLE
768
SCREW BEARING BRACKET TO REAR AXLE M16X1.5X70
768
SCREW STEERING BOX ASSEMBLY TO STEERING SUPPORT
768
SCREW , Replaced By: N308676016006
768
SCREW BEARING BRACKET TO REAR AXLE M 20X50, IN CASE OF CAST AXLE
770
CLAMPING SLEEVE BEARING BRACKET TO REAR AXLE
772
NUT COMBINATION CYLINDER TO BEARING BRACKET
772
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
775
BRAKE ANCHOR TRISTOP CYLINDER
778
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
780
NUT BRACKET TO SIDE MEMBER
780
NUT , Replaced By: N910113014001
784
PIN COMBINATION CYLINDER TO SLACK ADJUSTER
786
WASHER COMBINATION CYLINDER TO SLACK ADJUSTER
786
WASHER , Replaced By: N000433015005
788
COTTER PIN STRAP TO SUPPORT
805
HOLLOW SCREW FITTING LEFT AND RIGHT COMBINATION CYLINDERS, CONNECTION: "11,12",5 356525
806
HOLLOW SCREW FITTING RELAY VALVE,CONNECTION "20",LEFT
807
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
809
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
999
VALVETO 003 429 04 44,WABCO
999
REPAIR KITTO 000 429 27 95,WABCO
999
FITTINGWABCO
999
GUIDE , Replaced By: N071752014000
999
DIAPHRAGMTO 007 420 65 18, 012 420 00 18, WABCO
999
CUPTO 007 420 68 18,WABCO
999
SEAL RINGKNORR
999
PROTECTIVE CAPTO 008 420 62 18,KNORR
999
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
999
VALVE TAPPETTO 002 429 96 44,VOSS
999
FILTER ELEMENTTO 000 429 28 95,GRAU
999
FILTER ELEMENT MAJOR TO 000 429 27 95,WABCO
999
FILTER ELEMENT MINOR TO 000 429 27 95,WABCO
999
DIAPHRAGM , Replaced By: A0004290745
999
THRUST WASHERTO 003 429 12 44,SCHAEFER
999
SEAL CONETO 003 429 12 44,SCHAEFER
999
DIAPHRAGM
999
FILTER ELEMENTTO 000 429 25 95,BOSCH
999
DIAPHRAGMTO 000 429 28 95,GRAU
999
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
DIAPHRAGMTO 000 429 25 95,BOSCH
999
LINE (SUCTION LINE),FROM HOSE TO OIL PUMP
999
SEAL RINGTO 002 429 96 44,VOSS
999
AIR CLEANERGRAU
999
ADAPTER FITTING FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "22"
999
ADAPTER FITTING LINE CONNECTION TO ENGINE
999
REPAIR KITTO 001 431 93 06,BOSCH 62201,K 087820
999
REPAIR KITTO 000 429 26 95,KNORR
999
REPAIR KITTO 002 431 83 06, KNORR 90309
999
REPAIR KIT , EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO WABCO NR.0182, Replaced By: A0004306260
999
REPAIR KIT SERVICE BRAKE VALVE BOSCH
999
GASKET KIT FOUR-CIRCUIT PROTECTIVE VALVE
999
REPAIR KIT FOUR-CIRCUIT PROTECTIVE VALVE WABCO
999
REPAIR KIT SEAL RING BOSCH,209
999
REPAIR KIT (SERVICE BRAKE VALVE) WABCO
999
GASKET34X2X6 MM,GRAU
999
VALVE SEATGRAU
999
DIAPHRAGMTO 007 420 42 18,KNORR
999
DIAPHRAGMBOSCH,K 262627
999
VALVE
999
VALVEWABCO
999
RING DRAIN VALVE TO 000 432 08 07, NOT USED
999
O-RING CHECK VALVE TO AIR RESERVOIR
999
SEALING CORDTO 000 429 27 95, WABCO
999
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
999
ELBOW FITTING ANTI-FREEZE DEVICE,CONNECTION: "10", BUTT CONNECTION
999
CONNECTOR REPAIR SIZE
999
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
999
THRUST RING CHECK VALVE TO AIR RESERVOIR
999
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
999
LOCK ELECTRIC CABLE THRU CAB FLOOR
999
SCREW. UNION SCREW LINE CONNECTION
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
HANDLETO WABCO
999
HANDLEKNORR
999
PLUG
999
REPAIR KIT , Replaced By: A0004308006
999
REPAIR KIT PRESSURE REGULATOR WABCO
999
PROTECTIVE CAPTO BOSCH
999
PROTECTIVE CAPKNORR
999
SEAL RING28X2 MM,GRAU
999
SEAL RING86X2 MM,GRAU
999
VALVE , Replaced By: A0034315006
999
VALVE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 087820 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART, Replaced By: A0034315006
999
SEALING CORD38X8 MM
999
SEAL CONE LINE CONNECTION
999
T-FITTING RIGHT SPRING LOAD ACCUMULATOR BRAKE CYLINDER,CONNECTION "1"
999
T-FITTING LEFT AND RIGHT BRAKE HOSES
999
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
999
ELBOW FITTING AIR RESERVOIR,CONNECTION: "13", PLUG CONNECTION
999
FITTING AIR RESERVOIR,CONNECTION: "13"
999
FITTING SHUTTLE VALVE,CONNECTION: "20"
999
SEAL RINGTO 000 429 25 95,BOSCH
999
REPAIR KIT. BRAKE CYLINDER DIAPHRAGM PART TO 007 420 42 18, KNORR
999
VALVE (CHECK VALVE) VOSS
999
VALVE , Replaced By: A0024319106
999
VALVE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 087820, Replaced By: A0034315006
999
VALVE , Replaced By: A0034315006
999
REPAIR KITTO BOSCH
999
REPAIR KITTO 001 431 12 06, KNORR 3200
999
REPAIR KIT , Replaced By: A0004301160, +001A0004310273, +001A0004318383, +002A0004312185
999
REPAIR KIT SERVICE BRAKE VALVE BOSCH, Replaced By: A0004303506
999
ELBOW FITTING ,5 181111 10/50 616.121,122,131,1325 208196 20/60 616.121,122,131,1325 297633 616.024,026,027,028,065
999
ELBOW FITTING ,5 181111 10/50 616.121,122,131,1325 208196 20/60 616.121,122,131,1325 297633 616.024,026,027,028,065
999
ELBOW FITTING ,5 433281
999
FITTING AIR DEHYDRATOR,CONNECTION: "10",5 433280
999
VALVE (CHECK VALVE) WABCO
999
REPAIR KIT FOUR-CIRCUIT PROTECTIVE VALVE GRAU,5 7999995 800000 - 5 8127305 900000 - 5 936365
999
GASKET KIT FOUR-CIRCUIT PROTECTIVE VALVE GRAU,000 2
999
REPAIR KITTO 002 430 98 81,99 81,KNORR
999
VALVE (FOUR-CIRCUIT PROTECTIVE VALVE) WABCO
999
REPAIR KITTO 001 431 87 06,KNORR
999
SEAL RING , Replaced By: A0289972348
999
SPRINGTO 000 429 27 95,WABCO
999
SEAL RING22.3X2.4 MM,GRAU
999
SEAL RINGTO 000 429 28 95,GRAU
999
SEAL RING34.6X2.6 MM
999
SEAL RING19.3X2.4 MM,TO 003 429 04 44,WABCO
999
SEAL RINGTO 000 429 28 95,GRAU
999
SEAL RING28.4X2.6 MM
999
SEAL RING56X1.7 MM
999
SEAL RING13.6X2 MM,TO 003 429 12 44,SCHAEFER
999
SEAL RING15.3X2.4 MM,TO 003 429 12 44,SCHAEFER
999
SEAL RINGTO 000 429 25 95,BOSCH
999
SEAL RINGTO 000 429 27 95, WABCO
999
WASHER BRACKET TO LEFT SIDE MEMBER
999
ADHESIVE FOIL GUIDE SIGN
999
FITTING AIR COMPRESSOR,CONNECTION: "10"
999
BRACKET COMPRESSED AIR LINE TO ENGINE BEARING BRACKET
999
BRACKET COMPRESSED AIR LINE TO BUMPER STRUT
999
BRACKET RIGHT COMPRESSED AIR LINES
999
BRACKET , Replaced By: A6154200186
999
SEAL RING TO SEAL CABLE HARNESS OPENING IN CAB
999
LOCK BRAKE HOSE TO ANGLE
999
BRACKET FRAME MOUNTED CABLE HARNESS TO RIGHT SIDE MEMBER
999
BRACKET AIR CLEANER,5 088361
999
REPAIR KIT. TS SEALING RING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
999
CLAMP25-40X13 MM
999
NUT LINE CONNECTION
999
WASHER , Replaced By: N000125008443
999
WASHER EXHAUST MUFFLER TO STRAP
999
WASHER , Replaced By: N000125017016
999
WASHER BRACKET TO FRAME
999
NUT COMPRESSED AIR LINE THRU FRAME,5 395034
999
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "22"
999
SCREW , Replaced By: N304017008021
999
SCREW , Replaced By: N304017008027
999
SCREW , Replaced By: N304017008034
999
SCREW , Replaced By: N304017010002
999
SCREW HAND PUMP TO BRACKET
999
WASHER STRAP TO SUPPORT
999
CLAMPING SLEEVEKNORR
999
GLAND , Replaced By: A0019901267
999
CONNECTION FITTING ENGINE AIR COMPRESSOR,CONNECTION: "15"
999
BULKHEAD FITTING THROUGH SIDE MEMBER
999
FITTING AIR DEHYDRATOR,CONNECTION: "10",5 350368
999
SEAL RING DOUBLE BRAKE LINE COUPLING, CONNECTIONS: "11,12"
999
SEAL RING FUEL LINE TO FEED PUMP
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
999
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
999
SHEET METAL SCREW BRACKET TO ELECTRICAL APPARATUS COMPARTMENT 4,8X19
999
YOKETO 008 420 95 18,008 420 97 18,BOSCH
999
NUT CHECK VALVE TO AIR RESERVOIR
999
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
999
SCREW PIPE CLAMP
999
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
999
SCREW BRACKET TO CROSS CONNECTION STRUT
999
SCREW BRACKET TO SIDE MEMBER
999
HOSE AIR COMPRESSOR CONNECTION 240 MM, ORDER BY THE METER
999
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
999
NUT STRAP TO BRACKET
999
NUT PUMP TO BRACKET
999
NUT , Replaced By: N913004006001
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
NUT , Replaced By: N913004008001
999
NUT , Replaced By: N910113010000
999
UNION NUT LINE CONNECTION
999
UNION NUT LINE CONNECTION, Replaced By: N000000006243
999
HOLLOW SCREW FUEL LINE TO FEED PUMP
999
HOLLOW SCREW , Replaced By: N915036010108
999
SEAL RING , Replaced By: N007603012121
999
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
999
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
