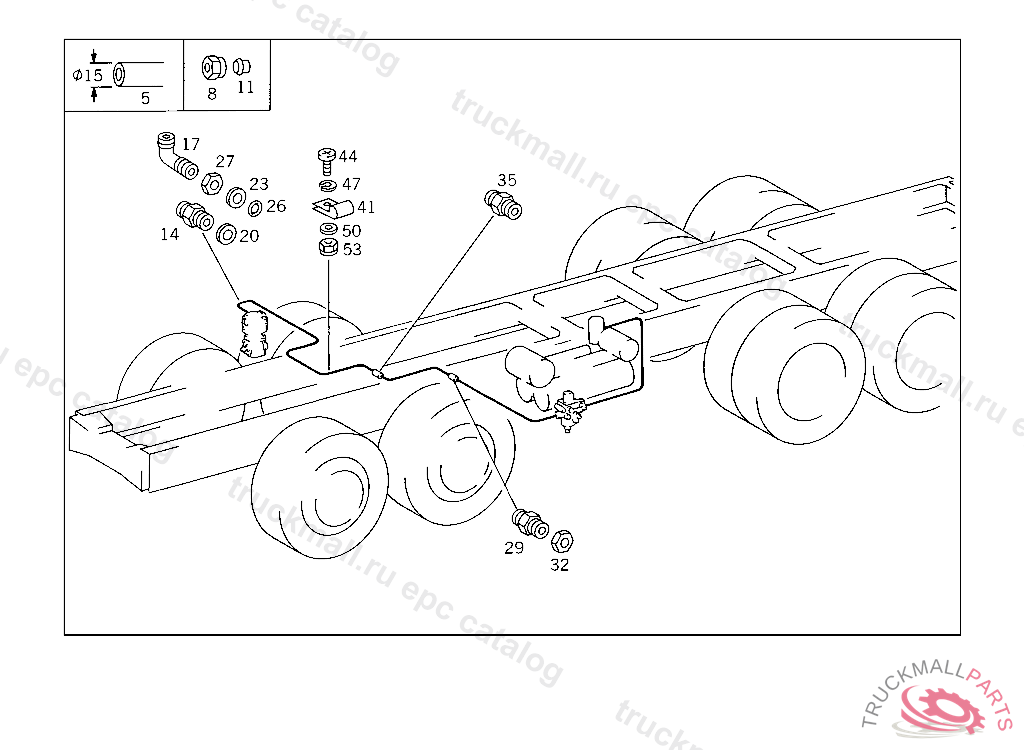

Поз.
Артикул
Описание
5
LINE AIR COMPRESSOR,PRESSURE REGULATOR, DEHYDRATOR 15X1.5 MM, LENGTH AVAILABLE: 3000 MM
8
UNION NUT LINE CONNECTION
11
GLAND LINE CONNECTION
14
FITTING ENGINE AIR COMPRESSOR,CONNECTION: "20"
20
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
29
BULKHEAD FITTING THROUGH SIDE MEMBER
32
NUT CHECK VALVE TO AIR RESERVOIR
35
CONNECTION FITTING ENGINE AIR COMPRESSOR,CONNECTION: "15"
41
CLAMP DELIVERY AND SUCTION LINES TO STEERING
41
CLAMP , Replaced By: A6739950001
44
SCREW , Replaced By: N000000001146
44
SCREW CLAMP MOUNTING M 6X16
44
SCREW AT FILTER BRACKET
44
SCREW CLAMP TO BRACKET M 6X14
47
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
50
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
50
WASHER COMPRESSED AIR LINE TO BRACKET
53
NUT PUMP TO BRACKET
53
NUT , Replaced By: N913004006001
999
BANJO UNION COMPRESSED-AIR-LINE PLUG-CONNECTION
999
BRACKET COMPRESSED AIR LINE TO ENGINE
