Поз.
Артикул
Описание

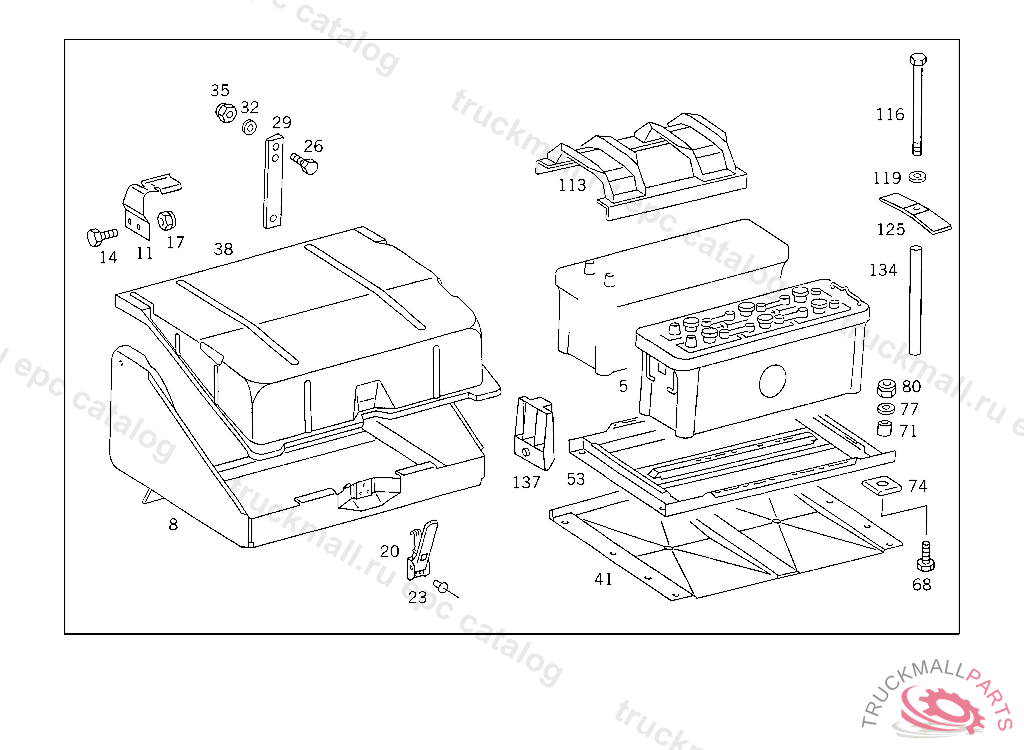

5
BATTERY12 V/165 AH
5
BATTERY FILLED AND CHARGED 12V/180AH
5
BATTERY FILLED AND CHARGED 12V/220AH
5
BATTERY FILLED AND CHARGED 12V/170AH
5
BATTERY12 V/135 AH
5
BATTERY12 V/100 AH
5
BATTERY , Replaced By: A0045415101
5
BATTERY FILLED AND CHARGED 12V/200AH
8
BATTERY SUPPORT APPARATUS
11
BRACKET BATTERY/APPARATUS SUPPORT,RIGHT
11
BRACKET BATTERY/APPARATUS SUPPORT,LEFT
14
SCREW , Replaced By: N304017006020
14
SCREW LICENSE PLATE TO BRACKET
17
NUT PUMP TO BRACKET
17
NUT , Replaced By: N913004006001
20
LOCKING HANDLE BATTERY/APPARATUS SUPPORT, Replaced By: A9609880142
20
FASTENING CLAMP BATTERY/APPARATUS SUPPORT
23
RIVET LOCKING LEVER TO BATTERY/APPARATUS SUPPORT
26
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
26
SCREW SUPPORT TO SIDE MEMBER M 14X90
26
SCREW , Replaced By: N308765014006
29
SHIM FUEL TANK TO FRAME
29
SHIM APPARATUS SUPPORT TO FRAME
35
NUT , Replaced By: N910113014001
35
NUT BRACKET TO SIDE MEMBER
38
COVER BATTERY/APPARATUS SUPPORT
41
BATTERY CASE
53
RAIL. BATTERY BASE FRAME
68
SCREW BRACKET TO FRAME SIDE MEMBER
71
SPACER TUBE BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT
74
INSULATING PLATE BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT
77
WASHER , Replaced By: N007349010007
77
WASHER STRUT TO CROSS MEMBER
80
NUT , Replaced By: N910113010000
80
NUT STRAP TO BRACKET
113
MOUNTING FRAME BATTERY MOUNTING
116
SCREW BATTERY MOUNTING M 8X260X40
119
WASHER BRACKET TO LEFT SIDE MEMBER
119
WASHER , Replaced By: N009021008213
125
BRACKET , Replaced By: A6205410526
125
BRACKET BATTERY MOUNTING,5 928008 FROM IDENT NO. 5 928009 SEE SA 46975
134
SPACER TUBE BATTERY MOUNTING,5 928008 FROM IDENT NO. 5 928009 SEE SA 46975
137
STOP BATTERY MOUNTING
999
BLIND CAPTO A 004 541 48 01
999
BRACKET ELECTRIC CABLE TO CROSS MEMBER
