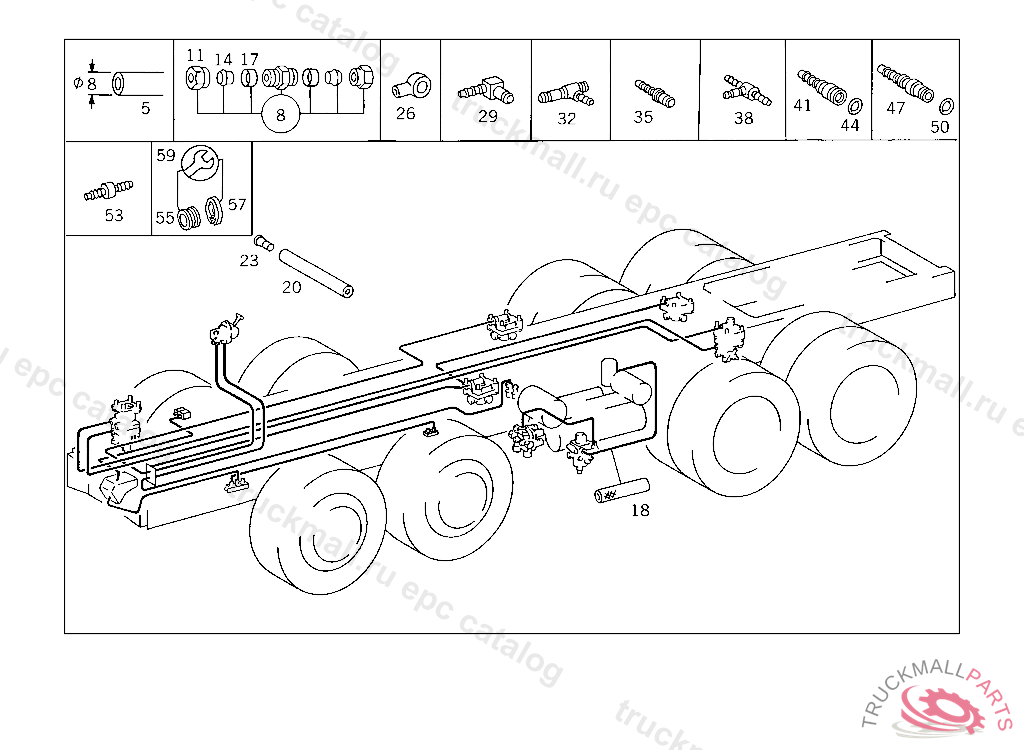

Поз.
Артикул
Описание
5
PLASTIC PIPE AERATION, ORDER BY THE METER
5
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
8
FITTING (PARTS KIT),LINE RUPTURE
11
UNION NUT LINE CONNECTION
14
GLAND LINE CONNECTION
17
SLEEVE LINE CONNECTION
18
INSULATING HOSE , ORDER BY THE METER
20
HOSE LEAK LINE, ORDER BY THE METER
23
SLEEVE LEAK LINE
26
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
29
ELBOW FITTING HOSE WIDTH, 6 MM,TO M22
29
ELBOW FITTING HOSE WIDTH, 9 MM,TO M22
29
ELBOW FITTING , Replaced By: A0049905371
32
ELBOW FITTING HOSE WIDTH, 8 MM, TO M 16
35
CONNECTOR , Replaced By: A0029905478
35
CONNECTOR HOSE WIDTH, 6 MM,TO M16
38
T-FITTING , Replaced By: A0059903370
38
T-FITTING HOSE WIDTH, 6 MM
38
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
41
CONNECTOR HOSE WIDTH, / I.D., 6 MM
44
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
47
CONNECTOR DISTRIBUTOR TO CAB
50
SEAL RING
53
CONNECTOR
55
LOCK RING LINE CONNECTION
55
SEAL RING , Replaced By: A0009940747
57
LOCK , Replaced By: A0009945448
57
LOCK LINE CONNECTION
59
REPAIR KIT COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
59
REPAIR KIT , Replaced By: A0309971748
