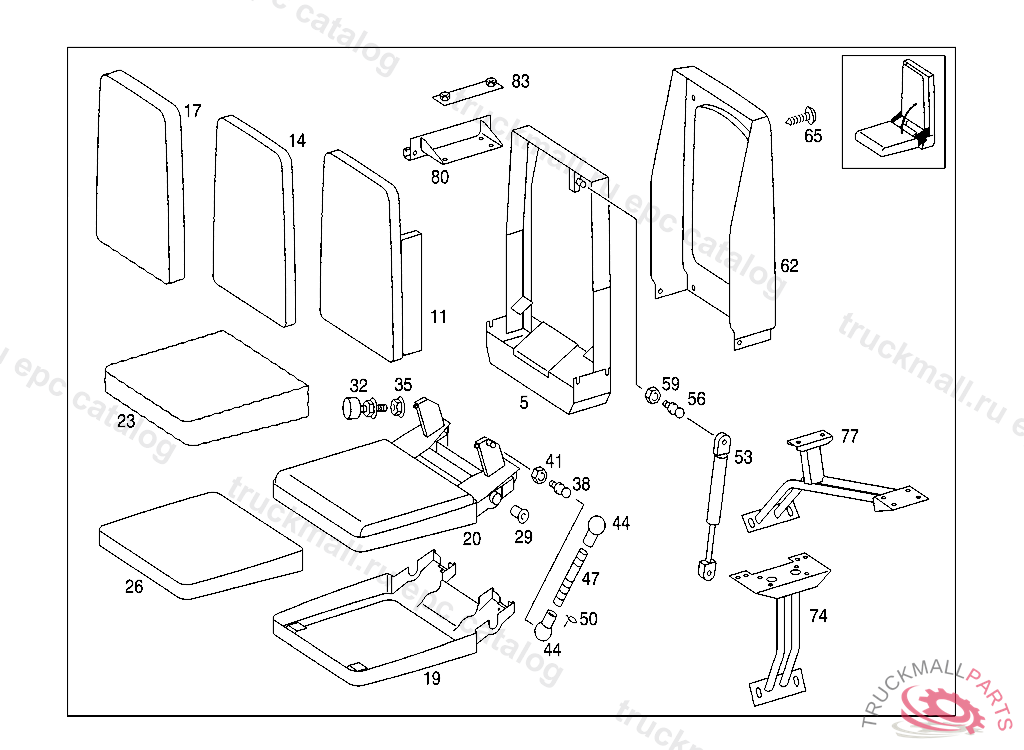

Поз.
Артикул
Описание
5
SEAT FRAMEWORK INDIVIDUAL FOLDING SEAT
11
BACKREST INDIVIDUAL FOLDING SEAT
14
PAD
17
COVER , STATE COLOR WHEN ORDERING
19
COVERING
20
SEAT CUSHION INDIVIDUAL FOLDING SEAT
23
COVER , STATE COLOR WHEN ORDERING
26
PAD
29
BUSHING
32
BUFFER LEFT, FROM CHASSIS: 010 077937
35
NUT SPRING-LOADED PUSH ROD
38
SCREW CONTROL LEVER TO INJECTION PUMP LEVER
38
BALL PIVOT CONTROL LEVER TO INJECTION PUMP LEVER, Replaced By: N000000004467
41
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
44
BALL SOCKET PULL ROD TO INTERMEDIATE LEVER
47
STUD BOLT. STUD
50
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
53
GAS PRESSURE SPRING BACKREST
56
BALL PIVOT CONTROL LEVER TO INJECTION PUMP LEVER, Replaced By: N000000004467
56
SCREW CONTROL LEVER TO INJECTION PUMP LEVER
59
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
62
PANELLING BACKREST
65
RIVET COVERING TO BODY
74
SEAT BASE INDIVIDUAL FOLDING SEAT
77
SEAT BASE
80
SUPPORT SEAT FRAMEWORK TO SIDE PANEL AND TO FLOOR
83
PLATE
999
SUPPORT SEAT FRAMEWORK
999
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL M8X16 MM
