Поз.
Артикул
Описание
5

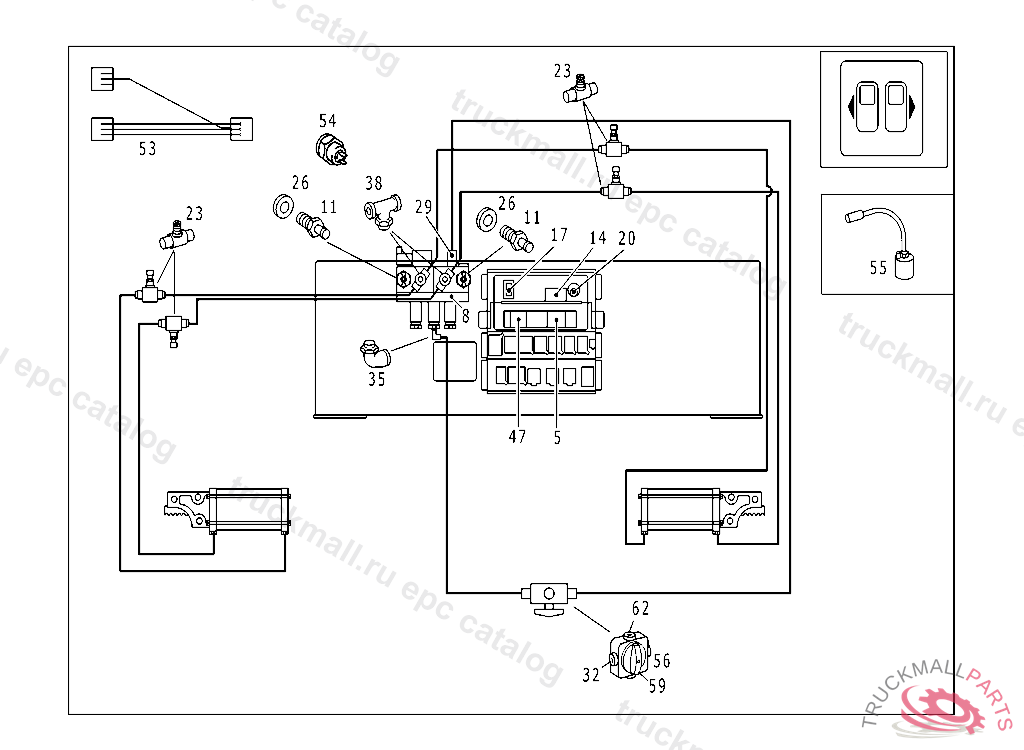

CONTROL UNIT DOOR CONTROL
5
ELECTRONICS DOOR CONTROL
8
SOLENOID VALVE , Replaced By: A0007607078
8
VALVE
8
DOOR CYLINDER TOP,ABOVE DOOR
11
OIL-BREAK SWITCH4 BAR
14
SWITCH , Replaced By: A0008211971
14
PRESSURE WAVE SWITCH PRESSURE WAVE CONTROL, Replaced By: A0008214771
14
SWITCH , Replaced By: A0008213371
14
PRESSURE WAVE SWITCH , EXHAUST STOCK OF OLD PART NUMBER FIRST
17
SWITCH
20
SWITCH END SWITCH
23
VALVE (THROTTLE VALVE)
26
SEAL RING LINE CONNECTION
26
SEAL RING , Replaced By: N007603012111
29
FITTING DIA., 6MM, M12X1,5
32
FITTING DIA., 6MM, M12X1,5
35
FITTING DIA., 6 MM, M5
38
FITTINGM 12X4.5, D 6 MM
47
ELECTRIC CABLE DOOR CONTROL
53
ELECTRIC CABLE POTENTIOMETER
53
ELECTRIC CABLE POTENTIOMETER
54
SWITCH (DIAPHRAGM) 4.0 BAR
54
SWITCH , Replaced By: A0005452710
55
RESISTOR
55
POTENTIOMETER
55
POTENTIOMETER SWIVEL BAR,TOP
56
EMERGENCY COCK TOP,ABOVE DOOR, Replaced By: A0007602357
56
CONTROL COCK TOP,ABOVE DOOR, EXHAUST STOCK OF OLD PART NUMBER FIRST
59
HANDLE ROTARY KNOB
62
FITTING DIA., M 12X1.5, D 8 MM
999
SWITCHTO 000 760 35 57
999
CONTACT SPRING0,5 - 1,0 MM2
999
PUSH BUTTON SWITCH UNIPOLAR
999
SWITCH SOLENOID SWITCH
999
DAMPER
