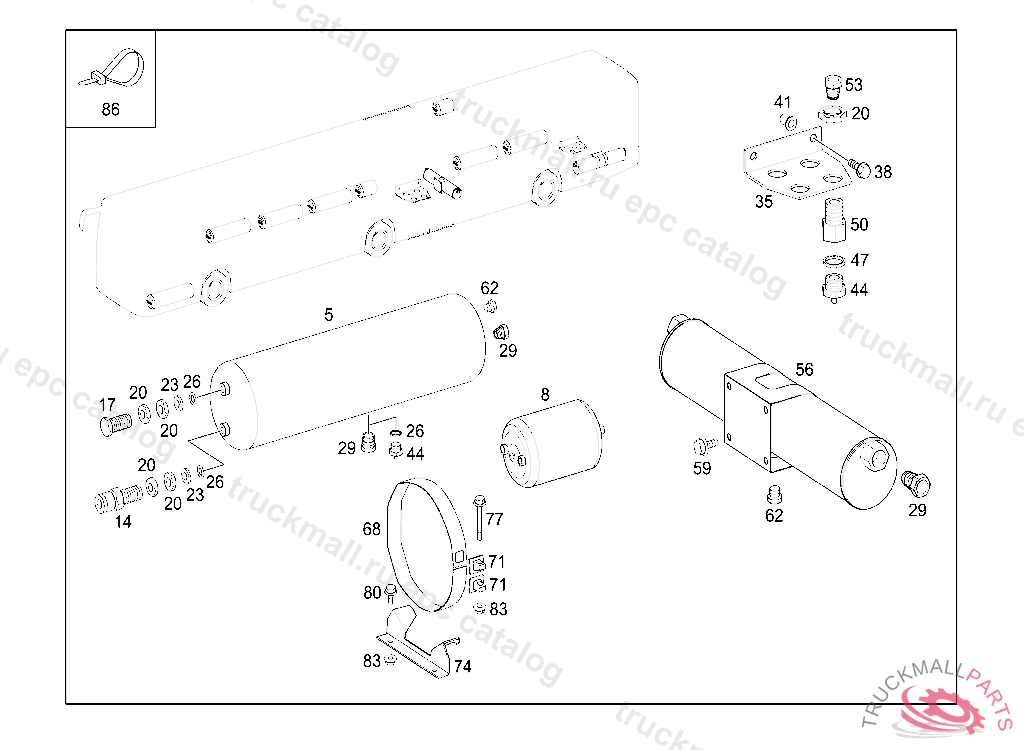

Поз.
Артикул
Описание
5
RESERVOIR40L
8
RESERVOIR20L
14
RUBBER MOULDING,. FITTING AIR RESERVOIR,CONNECTIONS: "12,13,14" TO VOSS 232, FROM IDENT NO. WEB 105309 ALSO INSTALLED ON 104831-104930,104931-105130,105261,105268-105295,105307. EXCEPT 105317,105318,105324,105382,105388. FROM IDENT NO. VF9 300289 ALSO INSTALLED ON 300046,300282-300284.
17
SCREW AIR RESERVOIR,CONNECTIONS: "12,13"
20
NUT FITTING TO BRACKET,230274
23
THRUST RING CHECK VALVE TO AIR RESERVOIR
26
O-RING CHECK VALVE TO AIR RESERVOIR
29
RETAINING SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M22, VOSS 232
29
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M 22, VOSS 232
35
35
38
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
38
SCREW , Replaced By: N910143008002
41
RIVET NUT. RIVETED NUT FEED LINE TO TRANSMISSION
44
VALVE. DRAIN VALVE DRAIN
47
SEAL RING FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS: "1"
50
FITTING AT AIR RESERVOIR
53
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M16 ,VOSS 232
56
RESERVOIR
59
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
62
SCREW PLUG AIR RESERVOIR
68
STRAP AIR RESERVOIR
71
SHACKLE
74
77
HEXALOBULAR BOLT UNDERRUN PROTECTION TO CROSS MEMBER M8X90
77
HEXAGON HEAD BOLTM8X90
80
SCREW BRACKET TO CAB REAR PANEL M 8X20
80
SCREW BRACKET TO SIDE MEMBER M8X20
83
NUT HORN TO BRACKET M8
83
NUT ENGINE MOUNTING M8
83
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
86
CABLE TIE. LOOM TIE1140 X 8.9 MM
