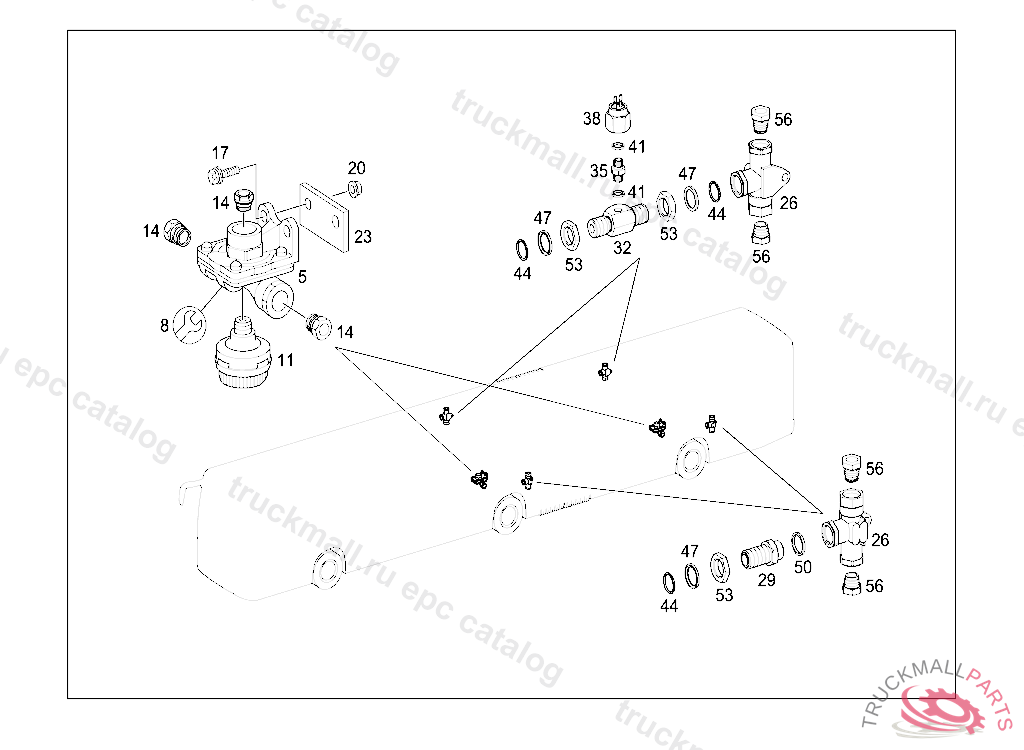

Поз.
Артикул
Описание
5
VALVE (QUICK-RELEASE VALVE)
8
REPAIR KIT
11
MUFFLER TRAILER CONTROL VALVE
14
COUPLING COMPRESSED-AIR-LINE PLUG-CONNECTION NG12/M22X1.5, AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 01.09.2009 UP TO PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 31.03.2010
17
SCREW SPEED SENSOR TO REAR AXLE
17
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
17
SCREW , Replaced By: N910143008002
17
SCREW , Replaced By: N910143008000
20
NUT HORN TO BRACKET M8
20
NUT ENGINE MOUNTING M8
23
BRACKET
26
VALVE. SHUTTLE VALVE (SHUTTLE VALVE) VOSS
29
FITTING SHUTTLE VALVE,CONNECTION: "20"
32
FITTING TWO-WAY VALVE,CONNECTION: "2" M22X1.5/M22X1.5/M12X1.5
35
FITTING , Replaced By: A0029906071
35
TS DOUBLE FITTING SOLENOID VALVE
35
FITTING , Replaced By: A0039979072
38
SWITCH SUPPLY PRESSURE,5 966147
41
SEAL RING 3/2-WAY VALVE
44
O-RING CHECK VALVE TO AIR RESERVOIR
47
THRUST RING CHECK VALVE TO AIR RESERVOIR
50
SEAL RING FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS: "1"
53
NUT FITTING TO BRACKET,230274
56
RETAINING SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M22, VOSS 232
56
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M 22, VOSS 232
