Mercedes A6324310840 - Halter

TOURISMO 16 RHD 632.038

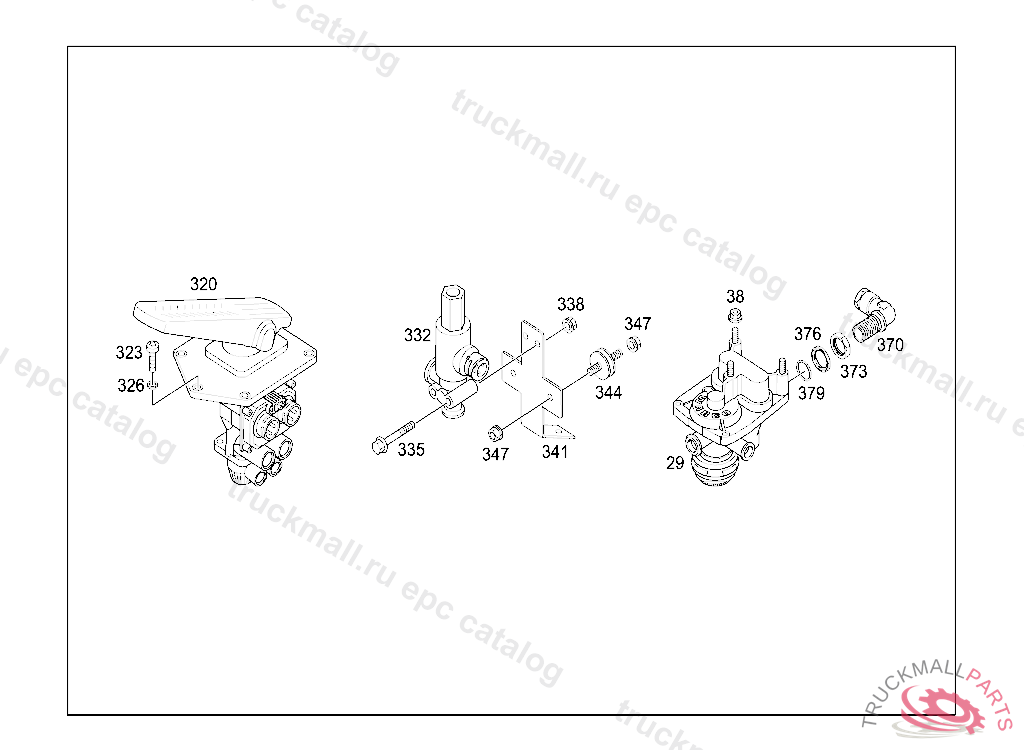

42 BRAKES - 380 SERVICE BRAKE VALVE,RELAY VALVE, TWO-WAY VALVE IL. 2

Поз.
Артикул
Описание
29
A0054298944
PROPORTIONING VALVE (RELAY VALVE),FRONT AXLE 12.5BAR
29
A0054296944
PROPORTIONING VALVE PROPORTIONING VALVE TO VOSS 232, FOR THIS PART NUMBER ONLY THE VOSS 232 AND SCHAEFER SDF CONNECTION SYSTEM MUST BE INSTALLED
38
N913023008003
NUT HORN TO BRACKET M8
320
A0034319806
VALVE (BRAKE POWER SENSOR) SERVICE BRAKE
323
A0039909212
SCREW GRIP RAIL MOUNTING M8X25 TX45
326
A0009943710
LOCK LEVER TO TRANSMISSION
332
A0059976736
VALVE (3/2-WAY SOLENOID VALVE)
335
N910143008017
SCREW 3/2-WAY VALVE TO BRACKET
338
N913023008002
NUT ENGINE MOUNTING M8
341
A6324310840
BRACKET
344
A3225040212
RUBBER MOUNTING AIR CLEANER TO SUBSTRUCTURE
347
N913023008002
NUT ENGINE MOUNTING M8
370
A0009978270
FITTINGNG12/M22X1.5
373
N000000006644
NUT FITTING TO BRACKET,230274
376
A0009940203
THRUST RING CHECK VALVE TO AIR RESERVOIR
379
A0129971445
SEAL RING20.3X2.4
