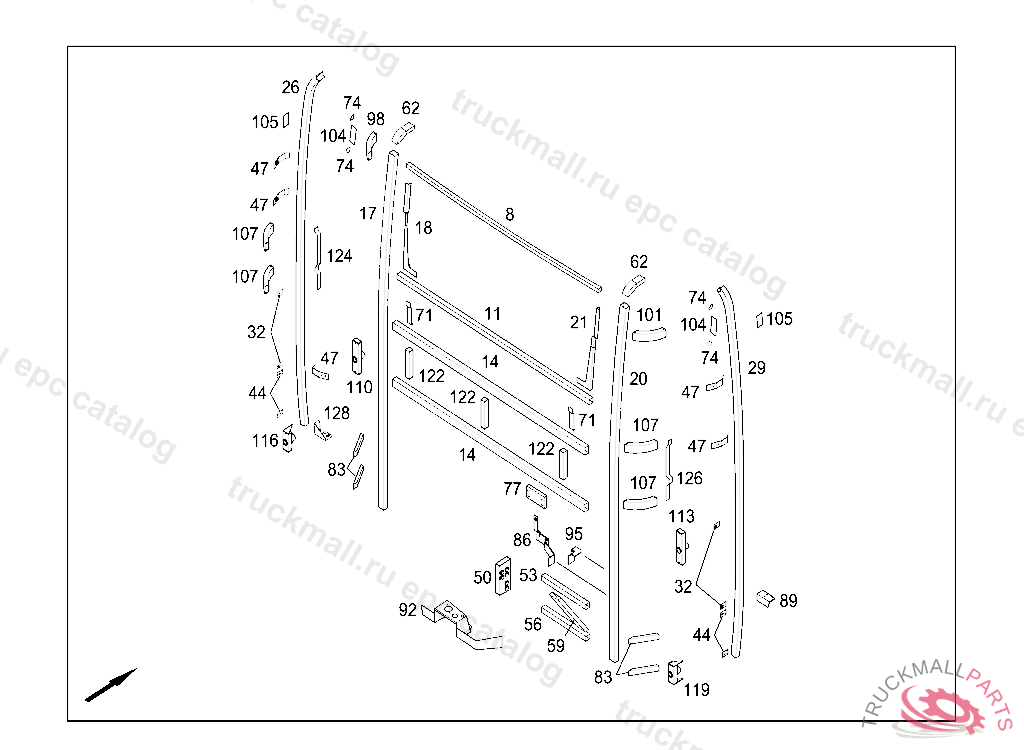

TOURISMO 16 RHD - 632.038 - 64 REAR PANEL
Поз.
Артикул
Описание
8
FRAME PART ROOF CROSS MEMBER
11
FRAME PART CENTRAL TOP
14
FRAME PART CENTRAL
17
PILLAR LEFT
18
ANGLE LEFT
20
PILLAR RIGHT
21
ANGLE RIGHT
26
PILLAR LEFT
29
PILLAR RIGHT
32
PLATE
44
PLATE MOUNTING PLATE 60 X 40 MM
47
BRACKET
50
STAY RIGHT
53
GIRDER PART TOP
56
GIRDER PART BOTTOM
59
STRUT RIGHT 467LG
62
REST LEFT AND RIGHT
71
RAIL
74
REINFORCEMENT HECKBLENDE
77
PLATE
83
STRUTL238 MM
86
BRACKET
89
BRACKET
92
CONSOLE
95
BRACKET224X190MM
98
STRUT LEFT
101
STRUT RIGHT
104
REINFORCEMENT50X125MM
105
REINFORCEMENT40X140MM
107
STRUT270LG
110
MOUNTING
113
MOUNTING
116
MOUNTING
119
MOUNTING
122
PILLAR CENTRAL L325 MM
124
RAIL
126
RAIL
126
RAIL , Replaced By: A6326470178
128
BRACKET60X40MM
