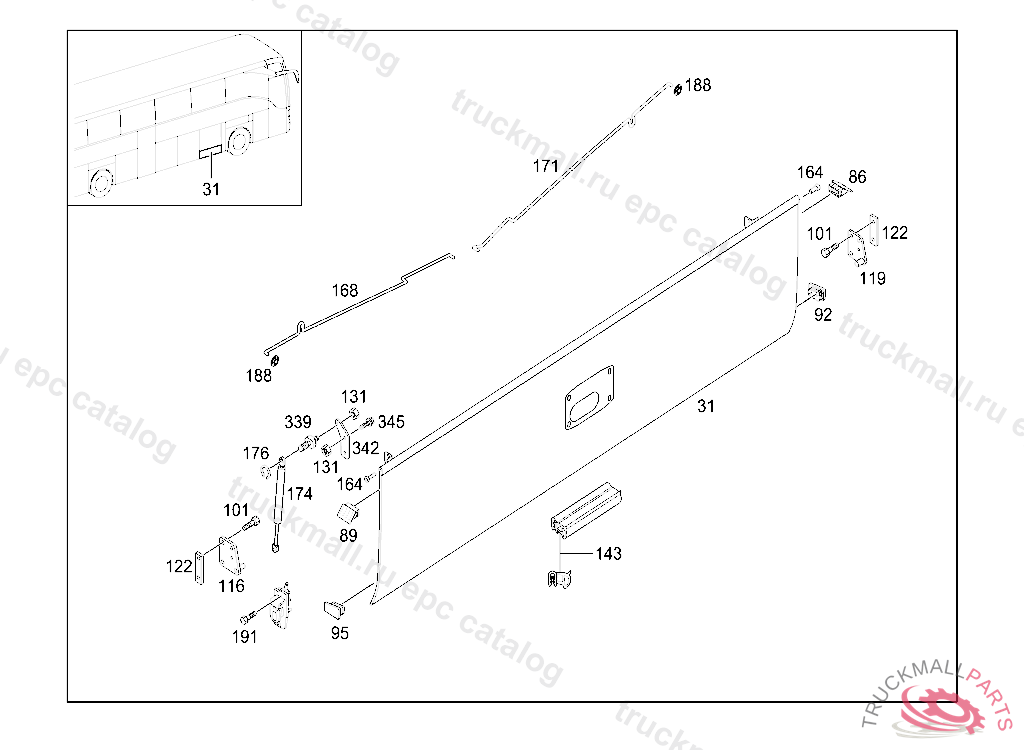

TOURISMO 16 RHD - 632.038 - 75 OUTSIDE FLAPS
Поз.
Артикул
Описание
31
HINGED DOOR STROKE FLAP 1315MM
86
LOCKING CAP
89
LOCKING CAP
92
LOCKING CAP
95
LOCKING CAP
101
SCREW , Replaced By: N910143008000
116
STRIKER
119
STRIKER
122
PLATE
131
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
143
RUBBER SECTION , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
143
RUBBER SECTION , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
164
BUSHING
168
OPERATING ROD
171
OPERATING ROD
174
SPRING PNEUMATIC SPRING 250 N
176
LOCK RING
188
LOCK
191
HEXAGON HEAD BOLT
339
MOUNTING
342
BRACKET
345
SCREW BRACKET TO CAB REAR PANEL M 8X20
