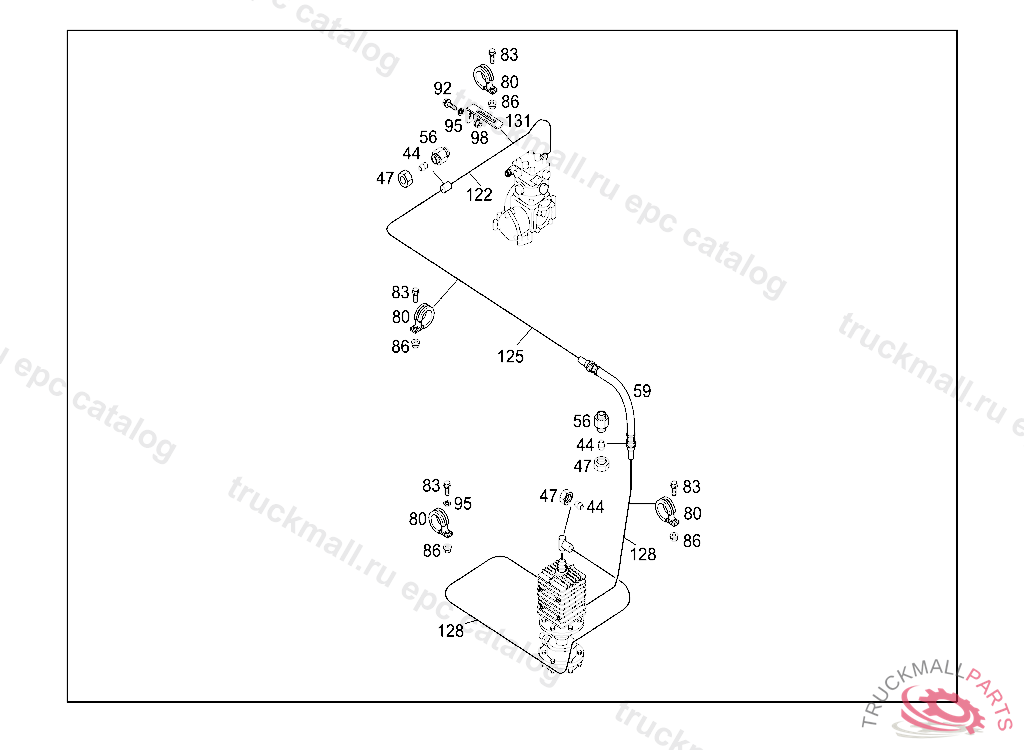

Поз.
Артикул
Описание
44
CUTTING RINGBL 18
47
NUT COMPRESSED AIR LINES
56
CONNECTION FITTING LINE CONNECTIONS
56
FITTING BETWEEN THE LINES
56
CONNECTION FITTING , Replaced By: N003902018002
59
BRAKE HOSE FROM HOSE TO MUFFLER, Replaced By: A0014292635
59
COMPRESSED AIR HOSE FROM HOSE TO MUFFLER
80
MOUNTING CLAMP SILICONERSGU S 18/15
80
CLAMPRSGU S 18/15
83
SCREW BRACKET AND CLAMP M6X20
83
HEXALOBULAR BOLT GROUND CABLE TO GENERATOR M6X20
86
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
92
SCREW BRACKET TO SIDE MEMBER M8X20
95
WASHER LINE MOUNTING
95
WASHER BRACKET TO CAB REAR PANEL
98
NUT ENGINE MOUNTING M8
122
125
LINE900 MM
128
131
BRACKET
