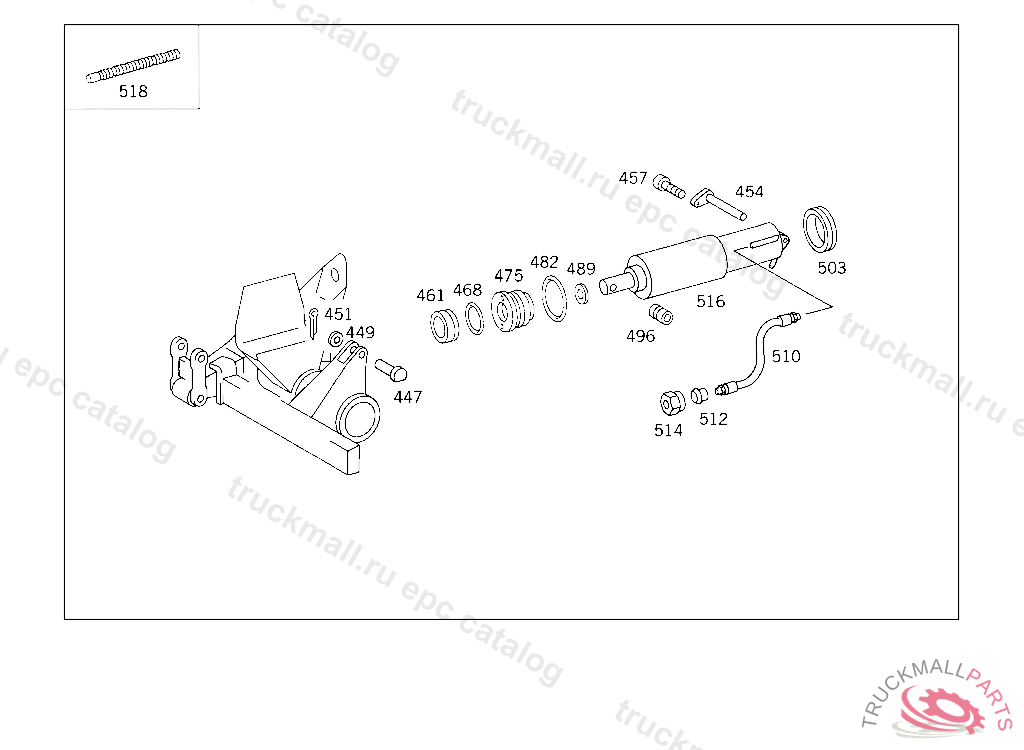

2235,2635,3335 - 648.013 - 39 TRAILING AXLE
Поз.
Артикул
Описание
447
PIN LIFT ARM
449
WASHER PISTON ROD TO LIFTING ARM
451
COTTER PIN PISTON ROD TO LIFTING ARM
454
PIN PISTON ROD TO LIFTING ARM
454
PIN CYLINDRICAL TUBE TO CROSS MEMBER
457
SCREW
461
BOOT PISTON ROD
468
SEAL RING PISTON ROD
475
HOUSING
482
SEAL RING PISTON ROD
489
BOOT PISTON ROD
496
BEARING PISTON ROD
503
SEAL RING PISTON ROD
510
HOSE FROM OIL PUMP TO CYLINDER
512
CUTTING RING. GLAND LINE CONNECTION
514
UNION NUT
516
CYLINDER
518
PLUG
999
VALVE , Replaced By: A0005505355
999
TRAILING AXLE
999
TRAILING AXLE , Replaced By: A6993900005
999
TRAILING AXLE
999
TRAILING AXLE WITH BRAKES
999
TRAILING AXLE
999
TRAILING AXLE
999
TRAILING AXLE
999
TRAILING AXLE
999
PIN
