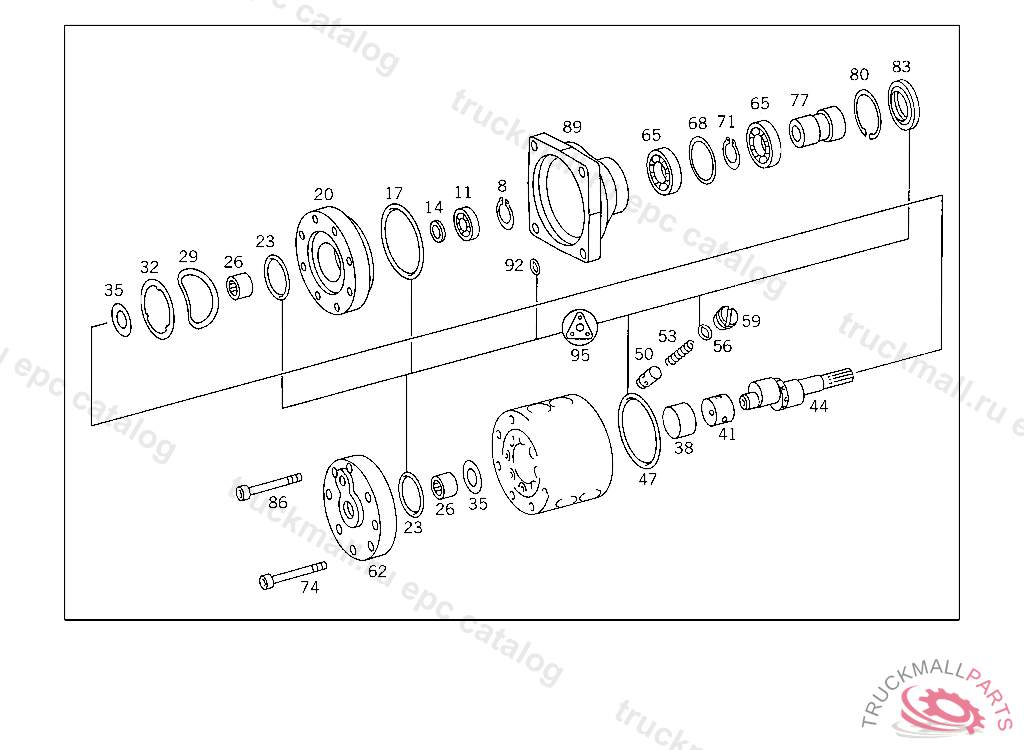

2635,3335/K,3535 B/K - 649.038 - 46 STEERING
Поз.
Артикул
Описание
8
LOCK RING
11
GROOVED BALL BEARING
14
SPACER RING
17
SEAL RING P.T.O.
17
SEAL RING , Replaced By: A0239979748
20
COVER
23
SEAL RING
26
NEEDLE BEARING
29
WASHER
32
SPRING
35
SPACER WASHER
38
BUSHING
38
BUSHING , Replaced By: A0004661150
41
BUSHING
44
DRIVE SHAFT
47
SEAL RING
50
PISTON
53
SPRING
56
SEAL RING
59
SCREW
62
COVER
65
GROOVED BALL BEARING
68
WASHER
71
LOCK RING
74
SCREW
77
CONNECTOR
80
LOCK RING
83
SEAL RING
86
SCREW SECONDARY PUMP
89
FLANGE
92
SEAL RING
95
GASKET KIT POWER STEERING PUMP AT TRANSMISSION
