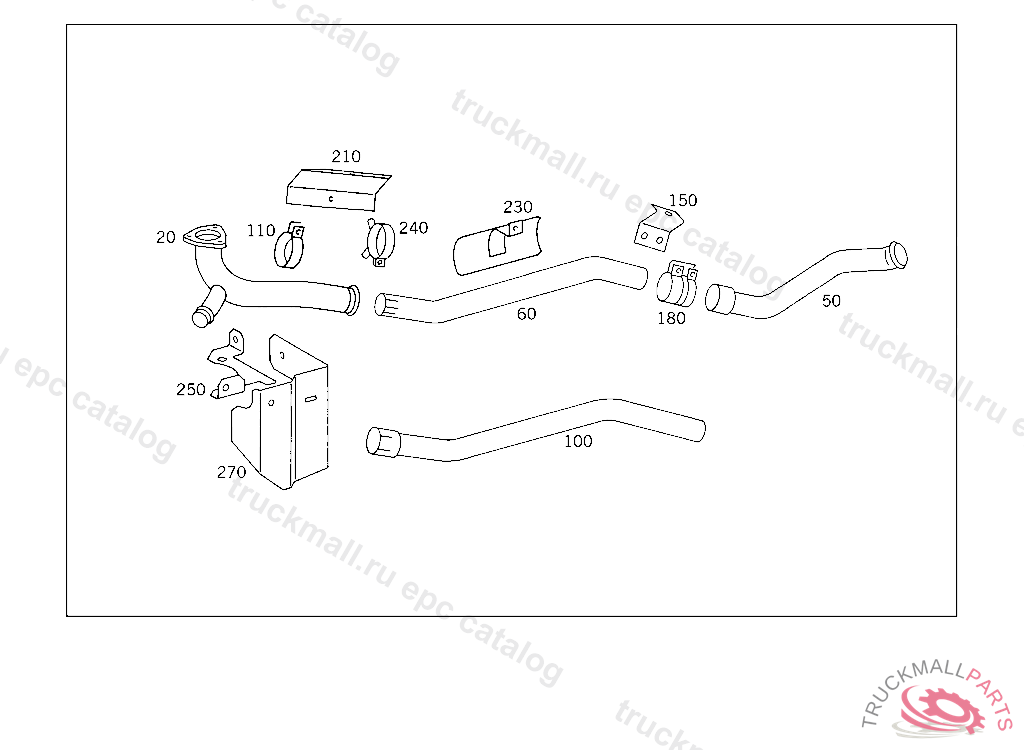

Поз.
Артикул
Описание
20
CONNECTOR FRONT EXHAUST PIPE, TO BE ADAPTED DURING ASSEMBLY
20
CONNECTOR. END PIECE FRONT EXHAUST PIPE,K 118398
20
CONNECTOR FRONT EXHAUST PIPE,5 909443K 118397
20
CONNECTOR FRONT EXHAUST PIPE,5 909443K 118397
50
EXHAUST PIPE (CONNECTING PIPE)
60
EXHAUST PIPE FRONT EXHAUST PIPE REAR PART TO MUFFLER
100
EXHAUST PIPE FRONT EXHAUST PIPE REAR PART TO MUFFLER
100
EXHAUST PIPE FRONT EXHAUST PIPE REAR PART TO MUFFLER
110
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
110
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
110
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
110
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
110
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
110
CLAMP , Replaced By: N071555090502
150
BRACKET FRONT EXHAUST PIPE
150
BRACKET FRONT EXHAUST PIPE
180
CLAMP EXHAUST PIPE TO MUFFLER
180
CLAMP AT CROSS MEMBER
210
PROTECTIVE PLATE FRONT EXHAUST PIPE,5 502998
210
PROTECTIVE PLATE , NOT USED
230
PROTECTIVE PLATE FUEL TANK
230
PROTECTIVE PLATE FUEL TANK
240
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
240
CLAMP , Replaced By: N071555094502, +002A6244920053
250
BRACKET , Replaced By: A6764901040
250
BRACKET FRONT EXHAUST PIPE,5 502998
270
PROTECTIVE PLATE FRONT EXHAUST PIPE
999
FRONT EXHAUST PIPE FRONT EXHAUST PIPE REAR PART TO MUFFLER
999
BRACKET FRONT EXHAUST PIPE
999
BRACKET FRONT EXHAUST PIPE
999
BRACKET HEAT SHIELD
999
EXHAUST PIPE FRONT EXHAUST PIPE REAR PART TO MUFFLER
999
BRACKET SUPPORT TO CROSS MEMBER
