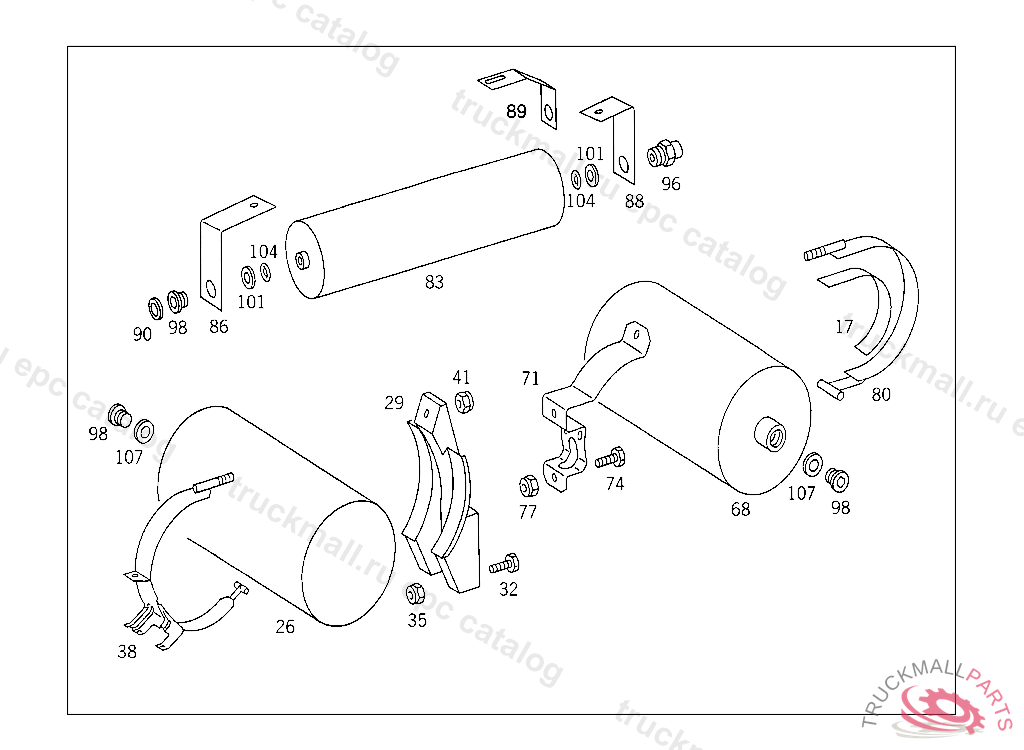

Поз.
Артикул
Описание
17
ADHESIVE TAPE60 MM, ORDER BY THE METER
26
RESERVOIR SPRING LOAD ACCUMULATOR 20 L, Replaced By: A0034321601
26
RESERVOIR20L,276 MM,8.5 BAR
29
BRACKET AIR RESERVOIR TO APPARATUS SUPPORT
32
SCREW CLAMP TO BRACKET AND TO PIPE
35
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
35
NUT , Replaced By: N913004008001
35
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
38
STRAP SPRING-LOADED BRAKE AIR RESERVOIR
41
NUT STRAP TO BRACKET
41
NUT , Replaced By: N910113010000
68
RESERVOIR E P S AND CLUTCH BOOSTER 10 L, Replaced By: A0034320801
68
RESERVOIR10L,206 MM,8.5 BAR
71
BRACKET AIR RESERVOIR TO CROSS MEMBER
74
SCREW , Replaced By: N304017008021
74
SCREW PIPE CLAMP
77
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
77
NUT , Replaced By: N913004008001
77
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
80
STRAP CLUTCH BOOSTER AIR RESERVOIR 520 MM
80
STRAP AIR RESERVOIR TO BRACKET
83
RESERVOIR5.6L,114,3 MM,10 BAR
83
RESERVOIR AIR DEHYDRATOR 5.6 L, Replaced By: A0034320501
86
BRACKET DEHYDRATOR AIR RESERVOIR,LEFT
88
BRACKET DEHYDRATOR AIR RESERVOIR,RIGHT L 100 MM, Replaced By: A6504312540
89
BRACKET DEHYDRATOR AIR RESERVOIR,RIGHT L 114 MM
90
WASHER RADIATOR TO RUBBER MOUNTING
90
WASHER , Replaced By: N000125010532
96
FITTING AIR RESERVOIR,CONNECTION: "15",5 433281
98
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
98
SCREW PLUG , Replaced By: N000908022011
101
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
101
THRUST RING CHECK VALVE TO AIR RESERVOIR
104
O-RING CHECK VALVE TO AIR RESERVOIR
107
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
