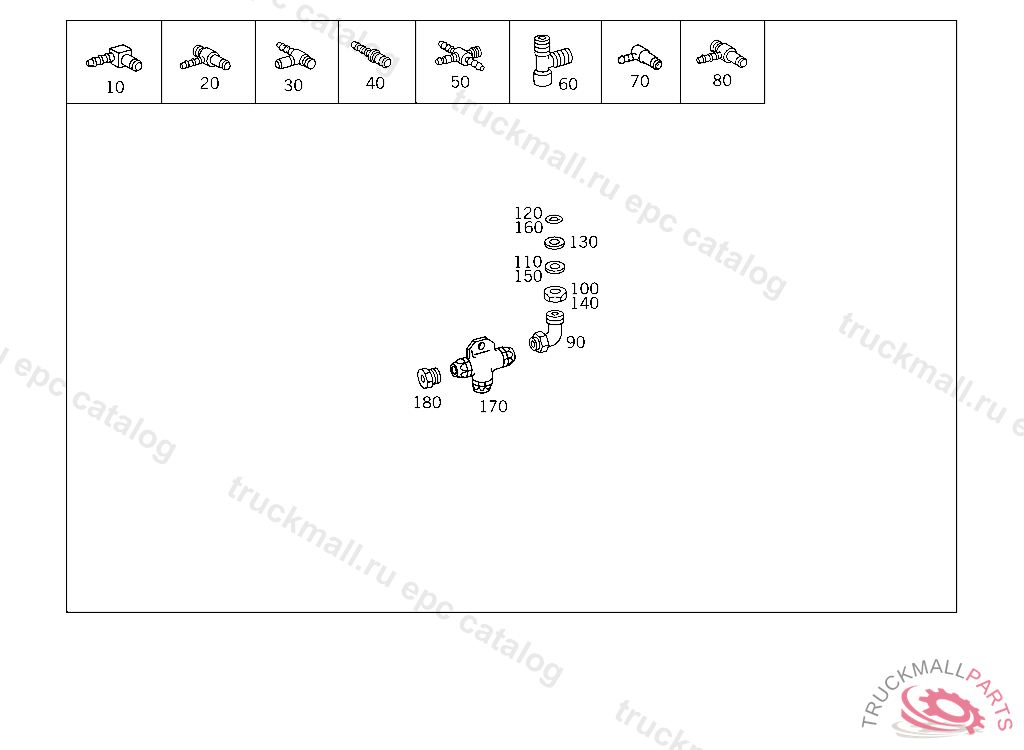

Поз.
Артикул
Описание
10
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
10
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
20
ELBOW FITTING HOSE WIDTH, 9 MM,TO M 22
30
T-FITTING
40
CONNECTOR HOSE WIDTH, 9 MM,TO M 22
50
DISTRIBUTOR
60
TANK RECESS. T-FITTING LINE CONNECTION
70
T-FITTING HOSE WIDTH, 9 MM, TO M 22, M 12X1.5
80
T-FITTING HOSE WIDTH, 9 MM, TO M 22, M 12X1.5
90
ELBOW FITTING COMBINATION CYLINDER,CONNECTION: "12"
100
NUT CHECK VALVE TO AIR RESERVOIR
110
THRUST RING CHECK VALVE TO AIR RESERVOIR
110
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
120
O-RING CHECK VALVE TO AIR RESERVOIR
130
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
140
NUT CHECK VALVE TO AIR RESERVOIR
150
THRUST RING CHECK VALVE TO AIR RESERVOIR
150
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
160
O-RING CHECK VALVE TO AIR RESERVOIR
170
VALVE. SHUTTLE VALVE (SHUTTLE VALVE) VOSS
170
VALVE , Replaced By: A0044291544
180
SCREW. UNION SCREW LINE CONNECTION
999
BRAKE HOSE REAR AXLE
999
BRAKE HOSE , Replaced By: A6524205248
