Поз.
Артикул
Описание

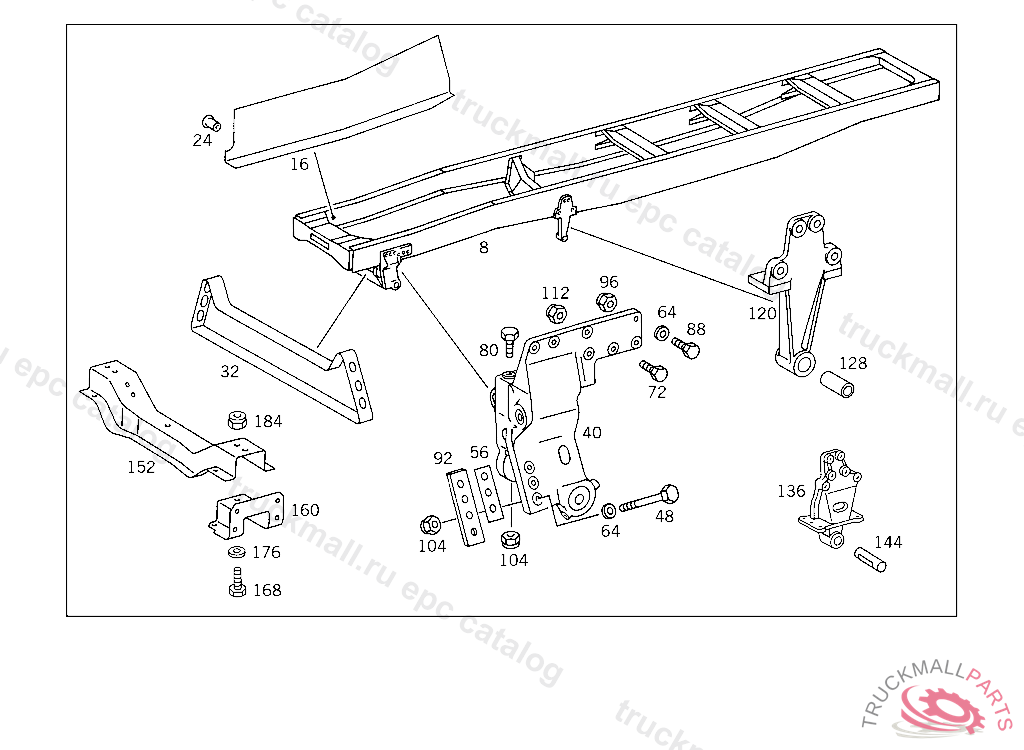

8
FRAME
8
FRAME
8
FRAME
8
FRAME
8
FRAME
8
FRAME
8
FRAME
8
FRAME
8
FRAME
8
FRAME
8
FRAME
8
FRAME
8
FRAME
8
FRAME
8
FRAME
8
FRAME
8
FRAME
8
FRAME
8
FRAME
8
FRAME
8
FRAME
8
FRAME
8
FRAME
8
FRAME
8
FRAME
8
FRAME
8
FRAME
8
FRAME
8
FRAME
8
FRAME
8
FRAME
8
FRAME
8
FRAME
8
FRAME
8
FRAME
8
FRAME
8
FRAME
8
FRAME
16
TRUSS FRONT LEFT
16
TRUSS FRONT RIGHT
24
RIVET FRAME TRUSS TO SIDE MEMBER
32
SUPPORT ,5 4109035 721850, Replaced By: A6533120561, +002A6533220084, +004N000960016241, +004N913004016005
32
STRUT STRUT TO FRONT SPRING BRACKET
40
FRONT SPRING BRACKET FRONT LEFT
40
FRONT SPRING BRACKET FRONT LEFT
40
FRONT SPRING BRACKET FRONT RIGHT
40
FRONT SPRING BRACKET FRONT LEFT
48
SCREW , Replaced By: N308676012031
48
SCREW , Replaced By: N308676012026
48
SCREW LEFT AND RIGHT BEARING BRACKETS TO CAB
48
SCREW , Replaced By: N308676012011
48
SCREW , Replaced By: N308676012015
48
SCREW BRACKET TO REAR AXLE M 16X1.5X75
48
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
48
SCREW , Replaced By: N308676012018
48
SCREW STRUT TO FRAME M 12X62
56
SHIM ,5 4109035 721850, Replaced By: A6533220084, +004N000960001624, +004N910113016001
56
SHIM ENGINE MOUNTING TO SUPPORTING ARM
56
SHIM STRUT TO FRONT SPRING BRACKET,5 721851
64
WASHER , Replaced By: N007349013005
64
WASHER MOUNTING USED FOR FRAME CONNECTION PARTS
72
SCREW SUPPORT TO TRANSMISSION
72
SCREW FRONT SPRING FRONT BRACKET TO SIDE MEMBER
80
SCREW TORSION BAR TO BEARING BRACKET M 12X50,5 903514
80
SCREW , Replaced By: N308676014008
80
SCREW ,5 903514, Replaced By: N000961012205
80
SCREW MOUNTING TO CONSOLE M 14X35
80
SCREW FRONT SPRING FRONT BRACKET AND STEERING SUPPORT TO SIDE MEMBER M 12X55
80
HEXAGON HEAD BOLT. SCREW SUPPORT TO SIDE MEMBER M 14X100
80
SCREW , Replaced By: N308765014008
80
SCREW STEERING SUPPORT TO FRAME M 14X50
88
SCREW , Replaced By: N308676012015
88
HEXAGON HEAD BOLT , Replaced By: A0029902704
88
SCREW ,5 903514, Replaced By: N000961012205
88
SCREW , Replaced By: N308676012011
88
SCREW , Replaced By: N308676012031
88
SCREW TORSION BAR TO BEARING BRACKET M 12X50,5 903514
88
SCREW , Replaced By: N308676012026
88
SCREW , Replaced By: N308676012013
88
SCREW , Replaced By: N308676012018
88
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
88
SCREW BRACKET TO FRAME M 12X35
88
SCREW FRONT SPRING FRONT BRACKET AND STEERING SUPPORT TO SIDE MEMBER M 12X55
88
SCREW STRUT TO FRAME M 12X62
88
SCREW LEFT AND RIGHT BEARING BRACKETS TO CAB
88
HEXAGON HEAD BOLT. SCREW BRACKET TO CROSS MEMBER
88
SCREW BRACKET TO REAR AXLE M 16X1.5X75
88
SCREW SHACKLE TO TORSION BAR,5 904661
92
SHIM STRUT TO FRONT SPRING BRACKET,5 721851
92
SHIM ,5 4109035 721850, Replaced By: A6533220084, +004N000960001624, +004N910113016001
96
NUT CONSOLE TO SUPPORT
96
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
96
NUT , Replaced By: N910113016001
96
NUT , Replaced By: N910113012003
104
NUT , Replaced By: N910113014000
104
NUT CONSOLE TO SUPPORT
104
NUT STEERING SUPPORT TO FRAME
104
NUT , Replaced By: N910113016001
112
NUT CONSOLE TO SUPPORT
112
NUT , Replaced By: N910113016001
120
FRONT SPRING BRACKET (FRONT SPRING BRACKET),REAR
120
REAR SUBFRAME , Replaced By: A6523220203
128
BUSHING
128
BUSHING
128
BUSHING , Replaced By: A3523250150
136
FRONT SPRING BRACKET REAR RIGHT
136
FRONT SPRING BRACKET REAR LEFT
144
RUBBER MOUNTING
152
ENGINE CROSS MEMBER FRONT
160
ENGINE STAY FRONT
168
SCREW , Replaced By: N308676012026
168
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
176
WASHER MOUNTING USED FOR FRAME CONNECTION PARTS
184
NUT SUPPORT TO SIDE MEMBER
999
GUSSET PLATE , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A3873122087
999
GUSSET PLATE , Replaced By: A6203120987
999
GUSSET PLATE
999
GUSSET PLATE
999
REAR SUBFRAME REAR
999
FRONT SPRING BRACKET FRONT, TO BE ADAPTED DURING ASSEMBLY
999
NUT BRACKET TO SIDE MEMBER
999
RIVET REINFORCEMENT TO SIDE MEMBER
999
RIVET REAR CROSS MEMBER 12X42 MM
