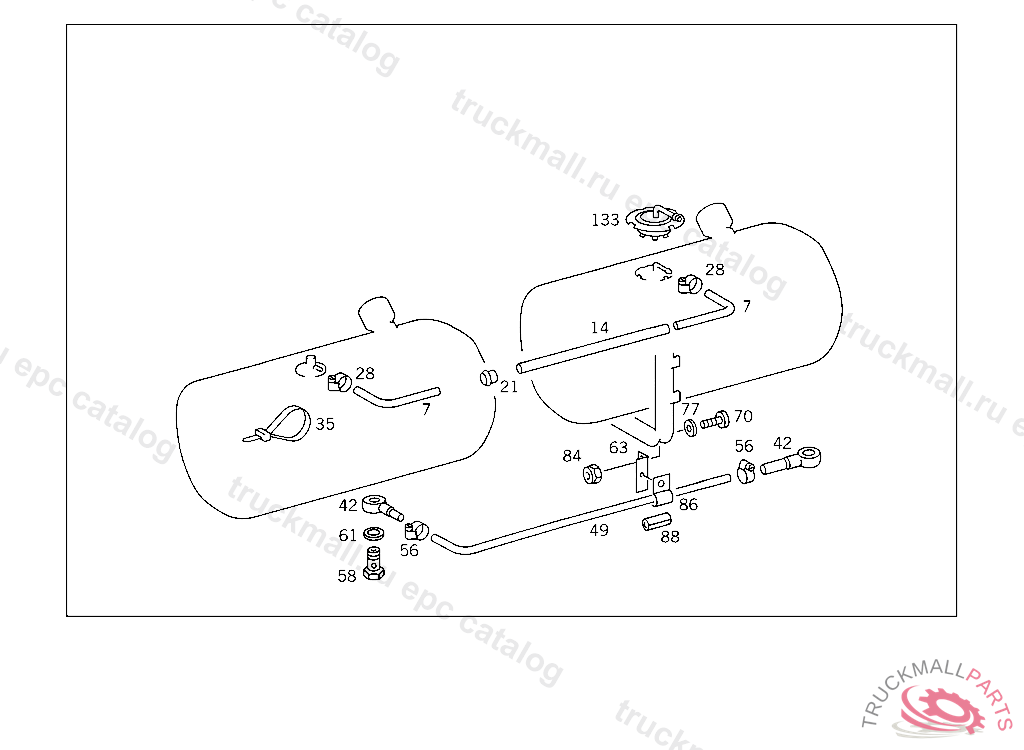

Поз.
Артикул
Описание
7
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
7
PLASTIC PIPE RISING PIPE 4X6 MM
7
HOSE FEED & RETURN 8X11MM, ORDER BY THE METER
14
HOSE LEAK LINE, ORDER BY THE METER
21
SLEEVE LEAK LINE
28
CLAMP LINE MOUNTING
35
LOOM TIE LINE MOUNTING 280 MM
35
LOOM TIE LINE MOUNTING
42
LINE WITH BANJO UNION
49
HOSE LEAK LINE
56
CLAMP LEAK LINE TO CONNECTOR AT ENGINE
58
HOLLOW SCREW , Replaced By: N915036010108
58
HOLLOW SCREW FUEL LINE TO FEED PUMP
61
SEAL RING FUEL LINE TO FEED PUMP
63
BRACKET FUEL LINE
70
SCREW , Replaced By: N007985005175
70
SCREW HOOK TO BRACKET
77
WASHER , Replaced By: N000433005304
77
WASHER BOOT TO CAB FLOOR
84
NUT TWO-WAY VALVE TO BRACKET
86
CLAMP , Replaced By: A1109950401
86
CLAMP FUEL LINE TO BRACKET
88
RUBBER PAD FUEL LINE TO BRACKET
133
COVERING FUEL GAUGE
999
COVER ,K 169123K 208916, Replaced By: A0004710167
999
COVER BREATHING
999
CONNECTOR , Replaced By: A0039908270
999
CONNECTOR BREATHER LINE CONNECTION
999
SEAL RING , NOT USED
999
WASHER BRACKET TO LEFT SIDE MEMBER
999
SHIM , Replaced By: A3974750084
999
PROTECTIVE PLATE TO MOUNT FUEL LINES
999
SCREW PROTECTION PLATE TO BRACKET
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
WASHER COMPRESSED AIR LINE TO BRACKET
999
NUT BALL PIVOT TO LEVER
999
NUT , Replaced By: N304032005005
999
NUT IN CASE OF SUBSEQUENT INSTALLATION
999
LOCK WASHER BRACKET TO STEERING COLUMN END
999
BANJO UNION , Replaced By: N000000000363
