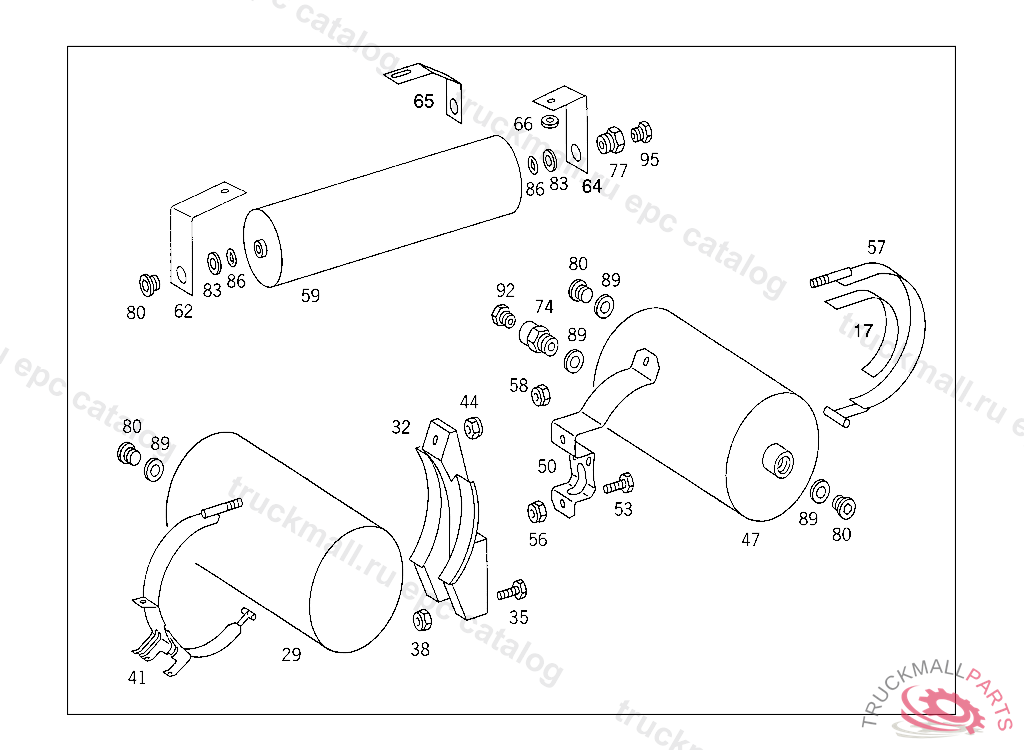

Поз.
Артикул
Описание
17
ADHESIVE TAPE60 MM, ORDER BY THE METER
29
RESERVOIR20L,276 MM,8.5 BAR
29
RESERVOIR SPRING LOAD ACCUMULATOR 20 L, Replaced By: A0034321601
32
BRACKET AIR RESERVOIR TO APPARATUS SUPPORT
35
SCREW BRACKET TO SIDE MEMBER,K 168169
35
SCREW , Replaced By: A0089907401
38
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
38
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
38
NUT , Replaced By: N913004008001
41
STRAP SPRING-LOADED BRAKE AIR RESERVOIR
44
NUT STRAP TO BRACKET
44
NUT , Replaced By: N910113010000
47
RESERVOIR10L,206 MM,8.5 BAR
47
RESERVOIR E P S AND CLUTCH BOOSTER 10 L, Replaced By: A0034320801
50
BRACKET AIR RESERVOIR TO CROSS MEMBER
53
SCREW PIPE CLAMP
53
SCREW , Replaced By: N304017008021
56
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
56
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
56
NUT , Replaced By: N913004008001
57
STRAP AIR RESERVOIR TO BRACKET
57
STRAP CLUTCH BOOSTER AIR RESERVOIR 520 MM
58
NUT STRAP TO BRACKET
58
NUT , Replaced By: N910113010000
59
RESERVOIR5.6L,114,3 MM,10 BAR
59
RESERVOIR AIR DEHYDRATOR 5.6 L, Replaced By: A0034320501
59
RESERVOIR AIR DEHYDRATOR 5.6 L, Replaced By: A0024325001
62
BRACKET DEHYDRATOR AIR RESERVOIR,LEFT
64
BRACKET DEHYDRATOR AIR RESERVOIR,RIGHT L 100 MM, Replaced By: A6504312540
65
BRACKET DEHYDRATOR AIR RESERVOIR,RIGHT L 114 MM
66
WASHER RADIATOR TO RUBBER MOUNTING
66
WASHER , Replaced By: N000125010532
74
FITTING LINE CONNECTION
77
FITTING AIR RESERVOIR,CONNECTION: "15",5 433281
80
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
80
SCREW PLUG , Replaced By: N000908022011
83
THRUST RING CHECK VALVE TO AIR RESERVOIR
83
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
86
O-RING CHECK VALVE TO AIR RESERVOIR
89
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
92
SCREW. UNION SCREW LINE CONNECTION
95
SCREW. UNION SCREW LINE CONNECTION
95
SCREW. UNION SCREW , Replaced By: A0009973734
