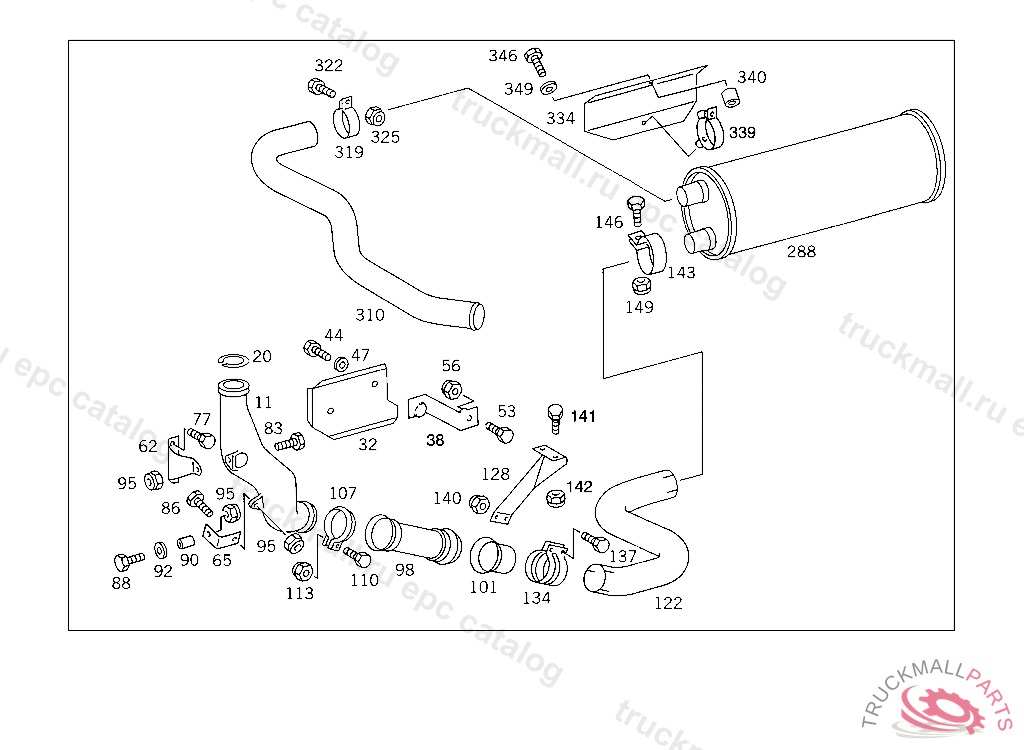

Поз.
Артикул
Описание
11
FRONT EXHAUST PIPE
20
SEAL RING BETWEEN FRONT EXHAUST PIPE AND FLEXIBLE METAL TUBE
32
PROTECTIVE PLATE TAIL PIPE
38
BRACKET PROTECTIVE PLATE TO EXHAUST PIPE
44
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
44
SCREW , Replaced By: N304017008016
47
WASHER EXHAUST MUFFLER TO STRAP
53
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
53
SCREW , Replaced By: N308676012012
56
NUT SUPPORT TO SIDE MEMBER
62
BRACKET FRONT EXHAUST PIPE TO TIMING CASE,TOP
62
BRACKET , Replaced By: A6524927041
65
BRACKET BRACKET TO CROSS MEMBER
65
BRACKET ,5 953232 TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6205243040
77
SCREWM 16X25
77
SCREW , Replaced By: N304017016011
83
SCREW SUPPORT TO CROSS MEMBER M 10X28
86
SCREW END PIECE TO EXHAUST PIPE M 10X25
88
SCREW EXHAUST PIPE TO BRACKET
90
SPACER TUBE SHIFTING ROD TO SHIFT LEVER
90
BUSHING ,5 496615 TO BE ADAPTED DURING ASSEMBLY, Replaced By: A3852680153
92
WASHER
95
NUT STRAP TO BRACKET
95
NUT STRAP TO BRACKET
95
NUT STRAP TO BRACKET
95
NUT , Replaced By: N910113010000
98
FLEXIBLE METAL TUBE FRONT LEFT
101
COLLAR (SLIDING COLLAR)
107
CLAMP FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
110
SCREW SUPPORT TO FENDER
110
SCREW , Replaced By: N304017008018
113
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
113
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
113
NUT , Replaced By: N913004008001
122
EXHAUST PIPE FRONT
122
EXHAUST PIPE FRONT,REAR PART
122
EXHAUST PIPE FRONT
128
BRACKET AT SIDE MEMBER
128
BRACKET FRONT EXHAUST PIPE,LEFT
134
CLAMP EXHAUST PIPE TO BRACKET
137
SCREW END PIECE TO EXHAUST PIPE M 10X25
137
SCREW EXHAUST PIPE TO BRACKET
140
NUT STRAP TO BRACKET
140
NUT STRAP TO BRACKET
141
SCREW FRONT SPRING REAR BRACKET TO CROSS MEMBER
141
HEXAGON HEAD BOLT , Replaced By: A0029902704
141
SCREW , Replaced By: N308676012013
142
NUT BRACKET TO SIDE MEMBER
142
NUT , Replaced By: N910113014001
142
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
142
NUT , Replaced By: N910113012003
143
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
143
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
143
CLAMP , Replaced By: N071555100501
146
SCREW BRACKET TO SIDE MEMBER
146
SCREW BRACKET TO SIDE MEMBER
149
NUT STRAP TO BRACKET
149
NUT STRAP TO BRACKET
288
EXHAUST MUFFLER
310
END PIECE TAIL PIPE ON THE RIGHT
310
END PIECE TAIL PIPE,FRONT,K 027550
310
END PIECE (TAIL PIPE),5 5975185 758825
310
END PIECE (TAIL PIPE),5 597517
310
END PIECE TAIL PIPE TO EXHAUST MUFFLER,K 027551
310
END PIECE (TAIL PIPE),5 758826
310
END PIECE (TAIL PIPE),5 5975185 758825
310
END PIECE (TAIL PIPE),5 597517
319
CLAMP EXHAUST PIPE TO BRACKET
322
SCREW BRACKET TO SIDE MEMBER
322
SCREW , Replaced By: N304017010002
325
NUT STRAP TO BRACKET
325
NUT , Replaced By: N910113010000
334
PROTECTIVE PLATE , NOT USED
339
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
339
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
339
CLAMP , Replaced By: N071555100501
340
SPACER TUBE EXHAUST PIPE TO PROTECTIVE PLATE
346
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
346
SCREW , Replaced By: N304017008039
349
WASHER EXHAUST MUFFLER TO STRAP
349
WASHER , Replaced By: N000125008443
