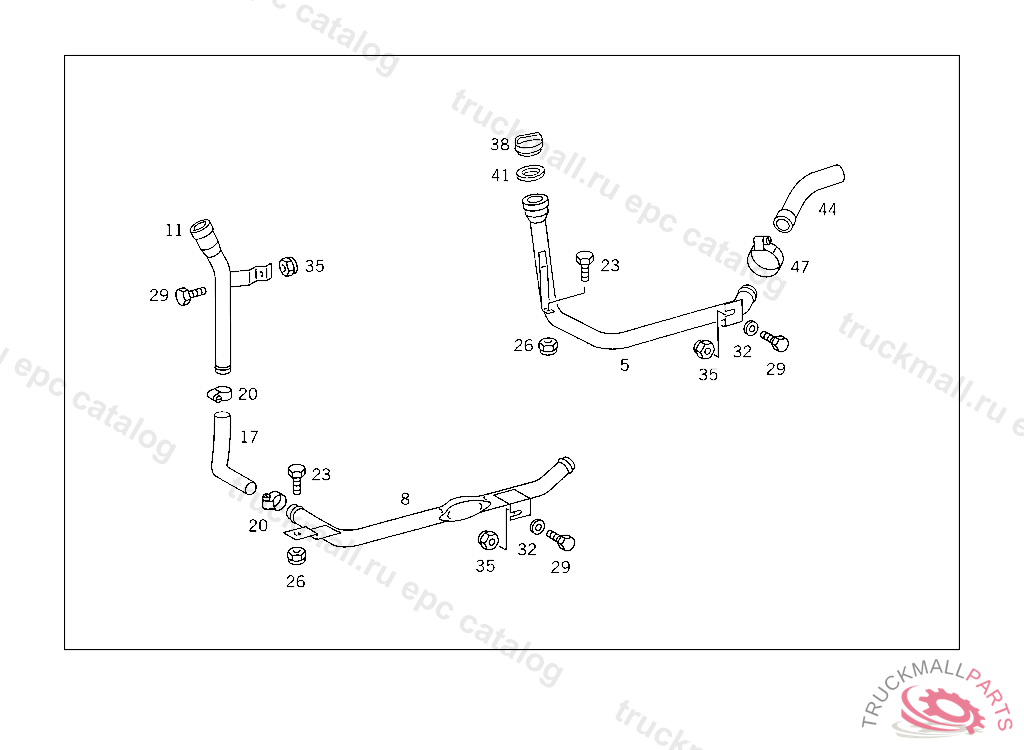

Поз.
Артикул
Описание
5
PIPE ELBOW , Replaced By: A6565200006
5
PIPE ELBOW (OIL FILLER PIPE)
8
PIPE ELBOW , Replaced By: A6565200106
8
PIPE ELBOW FROM OIL FILTER NECK TO ENGINE
11
PIPE ELBOW OIL REFILLING
17
HOSE PIPE ELBOW
20
CLAMP , Replaced By: N000000000671
20
CLAMP SUCTION LINE TO OIL PUMP 40-60X13 MM
23
SCREW PUMP TO BRACKET
23
SCREW , Replaced By: N304017006016
26
NUT , Replaced By: N913004006001
26
NUT PUMP TO BRACKET
29
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
29
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
29
SCREW , Replaced By: N308676012026
32
WASHER SPARE WHEEL CARRIER
32
WASHER
35
NUT STRAP TO BRACKET
35
NUT SUPPORT TO SIDE MEMBER
35
NUT , Replaced By: N910113010000
38
CAP OIL REFILLING
38
CAP OIL REFILLING
41
GASKET
41
GASKET , Replaced By: A1020180380
44
HOSE , Replaced By: A6205280182
47
CLAMP SUCTION LINE TO OIL PUMP 40-60X13 MM
47
CLAMP , Replaced By: N000000000671
