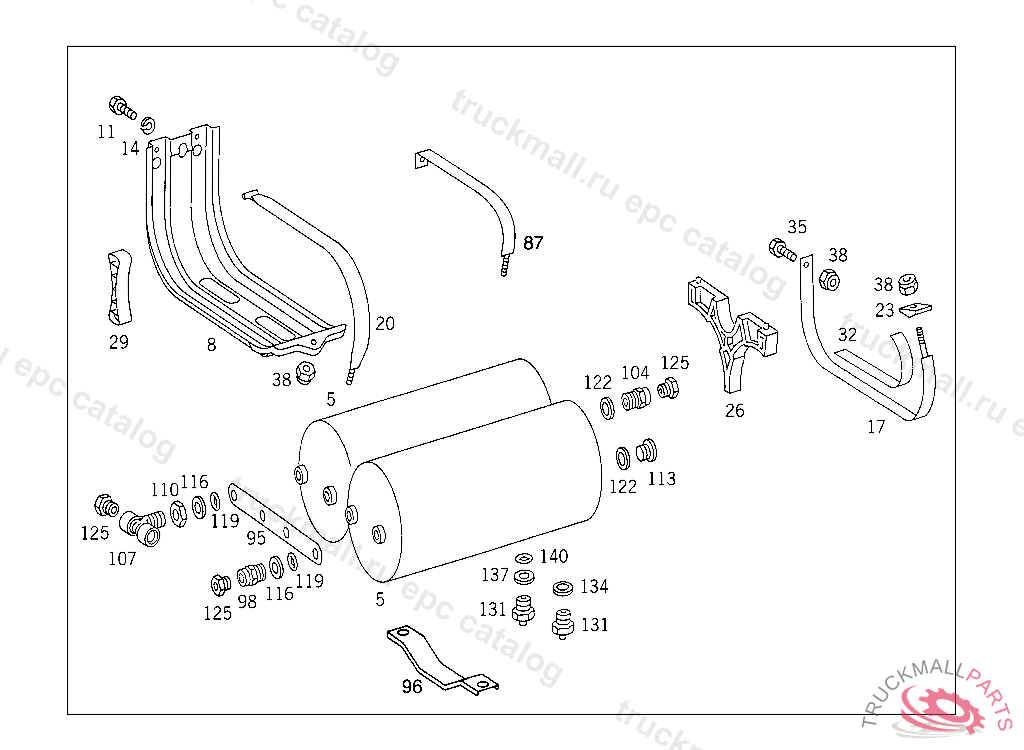

Поз.
Артикул
Описание
5
RESERVOIR30L,246 MM,12.5 BAR
5
RESERVOIR SERVICE BRAKE 30 L, Replaced By: A0034321801, +001A6554320073
17
STRAP SERVICE BRAKE AIR RESERVOIR
23
BASE AIR RESERVOIR STRAP
26
BASE AIR RESERVOIR,STRAP
32
ADHESIVE TAPE60 MM, ORDER BY THE METER
35
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
38
NUT STRAP TO BRACKET
38
NUT , Replaced By: N910113010000
87
STRAP CLUTCH BOOSTER AIR RESERVOIR 520 MM
95
LOCK (PROTECTION AGAINST TORSION),5 934167
96
LOCK (PROTECTION AGAINST TORSION),5 934168
98
FITTING AIR RESERVOIR,CONNECTION: "15",5 433280
98
FITTING AIR RESERVOIR,CONNECTION: "15",5 433280
104
FITTING LINE CONNECTION
104
FITTING LINE CONNECTION
113
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
113
SCREW PLUG , Replaced By: N000908022011
116
THRUST RING CHECK VALVE TO AIR RESERVOIR
116
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
119
O-RING CHECK VALVE TO AIR RESERVOIR
122
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
125
SCREW. UNION SCREW LINE CONNECTION
131
VALVE DRAIN, Replaced By: A0004322107
131
VALVE. DRAIN VALVE DRAIN
131
VALVE DRAIN, Replaced By: A0004322407
134
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
