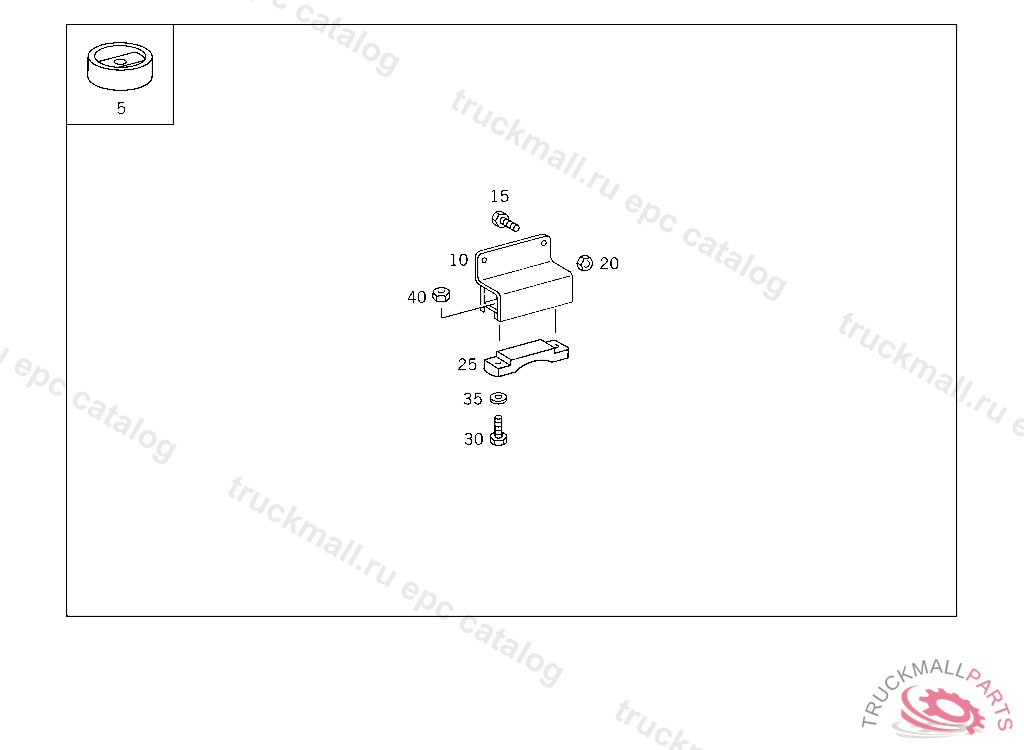

2538/K/LK,2550 K,2553 K,2544 K/LK - 658.149 - 32 SPRINGS AND SUSPENSION

5

SHIM PISTON TO BEARING BRACKET, ONLY APPLICABLE TO IDENT NO.: 5 545417,5 545468,5 549721,5 549753,5 551382,5 553458,5 556586,5 556951,5 557200,5 568184,5 568795,5 575157,5 575986. TO BE ADAPTED DURING ASSEMBLY

10

STOP REAR AXLE

10

STOP REAR AXLE

15

SCREW BRACKET TO CROSS MEMBER M 12X1.5X40

20

NUT STRAP TO SUPPORT

25

RUBBER BUFFER REAR AXLE STOP

30

SCREW STRUT TO FRAME, LEFT

35

WASHER STRUT TO CROSS MEMBER

35

WASHER , Replaced By: N007349010007

40

NUT EXHAUST PIPE TO SIDE MEMBER
