Поз.
Артикул
Описание

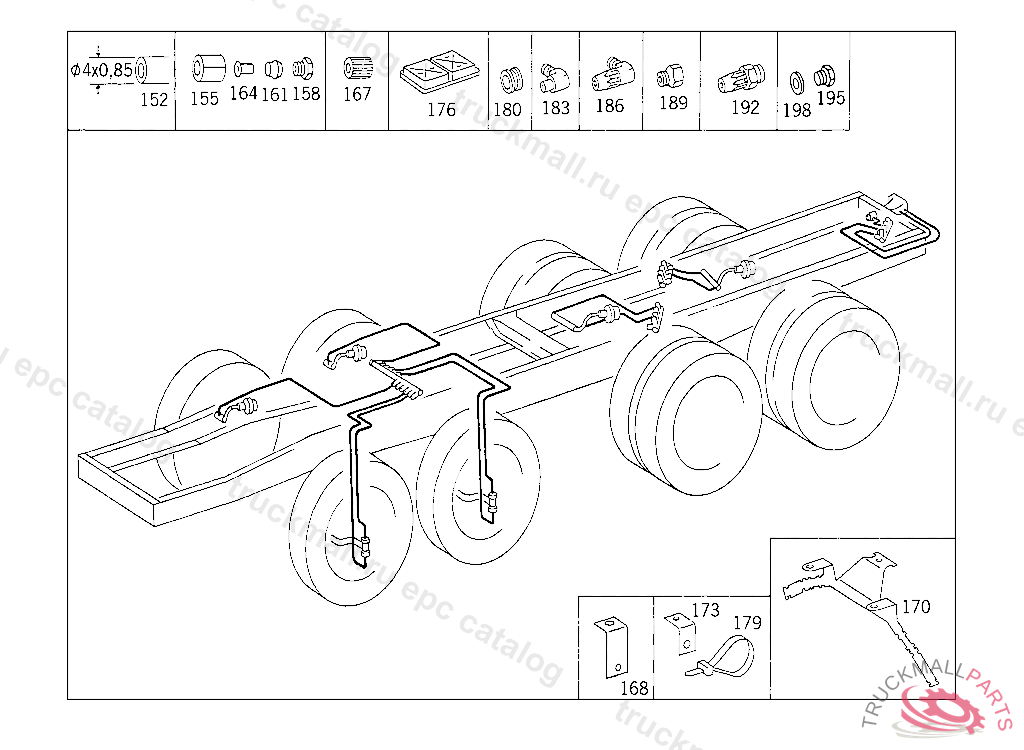

152
HOSE FROM DISTRIBUTOR TO LUBRICATING POINTS 4X0.85 MM, ORDER BY THE METER
155
INSULATING HOSE HOSE LINE PROTECTION 10 MM, ORDER BY THE METER
158
SCREW LINE CONNECTION BEKA-MAX
158
FITTING LINE CONNECTION VOGEL
161
SEAL CONE LINE CONNECTION VOGEL
161
SEAL CONE LINE CONNECTION BEKA-MAX
164
PIN BUSHING LINE CONNECTION VOGEL
164
PIN BUSHING , Replaced By: A0005730653
167
GROMMET HOSE LINE PROTECTION TO 000 546 16 30,71 30
168
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
170
BRACKET LUBRICATING LINE TO REAR AXLE
173
ANGLE LINE MOUNTING
176
PLATE CABLE HARNESS MOUNTING
179
LOOM TIE LINE MOUNTING 280 MM
179
LOOM TIE LINE MOUNTING
180
GROMMET LINE MOUNTING 50/45 MM
180
GROMMET42/36 MM, NOT USED
180
GROMMET LINE MOUNTING 16/11 MM
183
ELBOW , Replaced By: A0005731330
183
ELBOW , Replaced By: A0005733530
183
ELBOW LINE CONNECTIONS VOGEL, M 8X1
183
ELBOW LINE CONNECTIONS VOGEL, M 10X1
186
ELBOW LINE CONNECTION M 10X1
186
ELBOW LINE CONNECTION M 8X1
189
CONNECTOR BEARING BRACKET,BRAKE SHAFT,AND BRAKE ANCHOR VOGEL, M 8X1
189
CONNECTOR BEARING BRACKET,BRAKE SHAFT,AND BRAKE ANCHOR BEKA-MAX, M 8X1
192
CONNECTOR LINE CONNECTION M 10X1
192
CONNECTOR LINE CONNECTION M 8X1
195
SCREW PLUG DISTRIBUTOR BEKA-MAX, M 8X1
195
SCREW PLUG DISTRIBUTOR VOGEL, M 8X1
198
SEAL RING SCREW PLUG
999
NUT , Replaced By: N910113010000
999
NUT STRAP TO BRACKET
999
SCREW END PIECE TO EXHAUST PIPE M 10X25
999
DISTRIBUTOR , Replaced By: A0025736520
999
DISTRIBUTOR , Replaced By: A0025736620
999
DISTRIBUTOR , Replaced By: A0025736720
999
CONSOLE CENTRAL LUBRICATION PUMP
999
BUSHING FOR LINE CONNECTION TO 401 997 53 82, 10X2 MM
999
BRACKET REAR AXLE DISTRIBUTOR SA 26630
999
BRACKET REAR AIR RESERVOIR, NOT USED
999
BRACKET LINE MOUNTING
999
FITTING , Replaced By: A0005733832
999
FITTING , Replaced By: A0005733732
999
ELBOW , Replaced By: A0005732730
999
ELBOW , Replaced By: A0005732630
