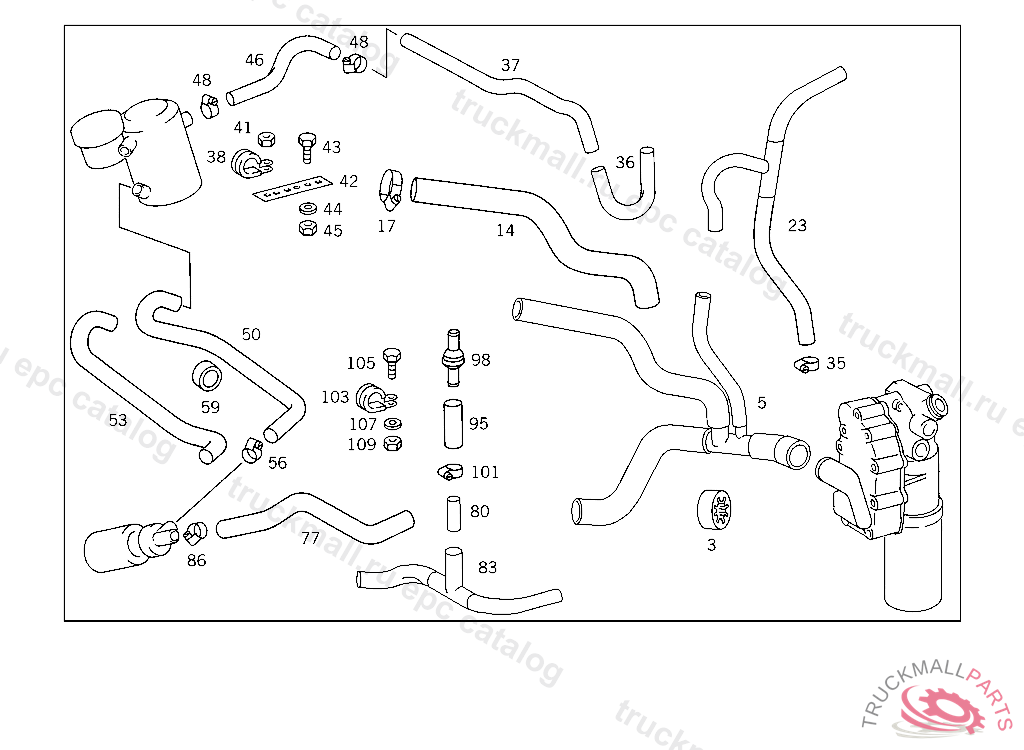

Поз.
Артикул
Описание
3
RUBBER RING
5
HOSE FROM CONNECTING PIPE TO EXPANSION TANK, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 951016 N 000000 P 000000
5
HOSE , Replaced By: A6675992175
5
INTERMEDIATE PIECE , Replaced By: A6685002175
5
HOSE , Replaced By: A6685002175
5
HOSE , Replaced By: A6685002175
5
HOSE FROM RADIATOR TO WATER PUMP, N 000001 P 100867
5
HOSE FROM WATER PUMP TO RADIATOR
14
HOSE FROM CONNECTION POINT TO EXPANSION TANK
17
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
17
CLAMP EXPANSION TANK & COOLING WATER LINE, FROM IDENT-NO. 827712, ALSO INSTALLED IN ENGINE 935766
17
CLAMP25-40X13 MM
23
HOSE HEATING RETURN
23
HOSE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. N 000000 P 156572, Replaced By: A6685012682
23
HOSE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. N 000000 P 156572, Replaced By: A6685012682
23
INTERMEDIATE PIECE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. N 000000 P 156572, Replaced By: A6685012682
35
CLAMP , Replaced By: N000000000667
35
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
36
HOSE (HEATING LINE) FROM ENGINE TO HEATER,FEED, 962133 N 000001 P 000001
36
HOSE FROM HEATING PIPE TO HEATER, RETURN
37
LINE FROM AIR COMPRESSOR TO PRESSURE REGULATOR 18X1,5 MM, LENGTH AVAILABLE: 3000 MM
37
PIPE , Replaced By: A0004291501
38
CLAMP BRAKE HOSE BRACKET
41
NUT COVERING TO CAB FIRE WALL
42
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, TOP
42
BRACKET HEATING FEED, N 000001 P 110190
42
BRACKET , Replaced By: A3604293140
43
SCREW PUMP TO BRACKET
43
SCREW COVER PLATE TO BRACKET
44
WASHER SWITCH TO FIRE WALL
44
WASHER , Replaced By: N000433005304
44
WASHER BOOT TO CAB FLOOR
45
NUT TACHOGRAPH TO BRACKET
45
NUT HEATING PIPE TO BRACKET
46
HOSE FROM PIPE TO HEATER UNIT
48
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
48
CLAMP , Replaced By: N000000000667
50
HOSE FROM HEATER UNIT TO WATER PUMP
53
HOSE FROM HEATER UNIT TO WATER PUMP
56
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
56
CLAMP , Replaced By: N000000000667
59
RUBBER RING
77
HOSE FROM ENGINE TO PUMP
80
LINE FROM AIR COMPRESSOR TO PRESSURE REGULATOR 18X1,5 MM, LENGTH AVAILABLE: 3000 MM
80
PIPE , Replaced By: A0004291501
80
PIPE , Replaced By: A0004291501
83
HOSE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. N 000000 P 156572, Replaced By: A6685012782
83
HOSE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. N 000000 P 156572, Replaced By: A6685012782
83
INTERMEDIATE PIECE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. N 000000 P 156572, Replaced By: A6685012782
83
HOSE FROM ENGINE TO PUMP
86
CLAMP , Replaced By: N000000000667
86
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
95
HOSE , Replaced By: N900271018038
95
HOSE , Replaced By: N900271018038
95
HOSE FROM BUBBLE SEPARATOR TO HEATING PIPE 18X27 MM, ORDER BY THE METER
98
VALVE CHECK VALVE
98
VALVE , Replaced By: A0008352872
101
CLAMP , Replaced By: N000000000667
101
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
103
CLAMP FEED AND RETURN
105
SCREW COVER PLATE TO BRACKET
107
WASHER BOOT TO CAB FLOOR
107
WASHER , Replaced By: N000433005304
109
NUT , Replaced By: N304032005005
109
NUT IN CASE OF SUBSEQUENT INSTALLATION
999
HOSE FROM PIPE TO HEATER UNIT
