Поз.
Артикул
Описание

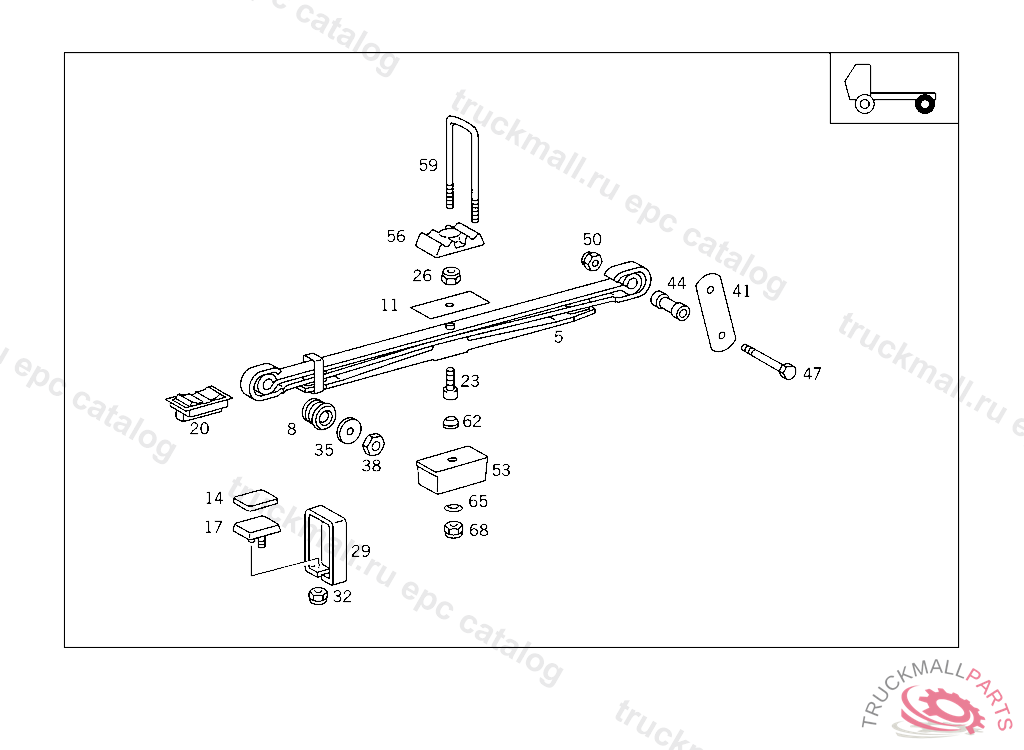

5
REAR SPRING , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 393360, Replaced By: A6733202406
5
REAR SPRING (SUPPORTING SPRING),3 LEAVES
8
BUSHING SPRING EYE,FRONT
8
BUSHING SPRING EYE,REAR
11
SHIM BETWEEN THE SPRING LEAVES, TO BE ADAPTED DURING ASSEMBLY
11
SHIM BETWEEN THE SPRING LEAVES, TO BE ADAPTED DURING ASSEMBLY
11
SHIM , Replaced By: A9703210184
11
SHIM , Replaced By: A9703210184
14
SHIM BETWEEN THE SPRING LEAVES
17
RUBBER BUFFER
20
RUBBER BUFFER BETWEEN THE SPRING EYES
23
SPRING BOLT
26
HEXAGON NUT. NUT SPRING BOLT
26
NUT , Replaced By: N910113012005
29
SPRING CLAMP AT SPRING LEAF NO.5
29
SPRING CLAMP , Replaced By: A6763210033
29
SPRING CLAMP , Replaced By: A6753210133
32
NUT , Replaced By: N913004008001
32
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
35
THRUST WASHER REAR SPRING TO REAR SPRING FRONT BRACKET
38
NUT INTERMEDIATE LEVER TO STEERING SUPPORT
38
NUT , Replaced By: N910113018004
41
SHACKLE ,5 078346 THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE ONLY REPLACEABLE BY THE SET, Replaced By: A6733250620
41
SHACKLE SPRING SHACKLE TO SPRING REAR BRACKET
44
BUSHING SPARE WHEEL HOIST TO CROSS MEMBER
44
BUSHING REAR SPRING TO REAR SPRING REAR BRACKET
47
SCREW CONTROL ARM TO REAR SPRING REAR BRACKET
50
NUT INTERMEDIATE LEVER TO STEERING SUPPORT
50
NUT , Replaced By: N910113018004
53
SHIM CONTROL ARM TO REAR AXLE
53
SHIM REAR SPRING
56
PLATE REAR SPRING TO REAR AXLE
59
U-BOLT FRONT SPRING TO FRONT AXLE,FRONT 300MM
62
DOWEL PIN , Replaced By: A6749910060
62
DOWEL PIN (CENTERING CONE),5 361887, Replaced By: A9303230574
62
DOWEL PIN (CENTERING CONE),5 361886
62
CENTERING BOLT (CENTERING CONE),5 361887
65
SPHERICAL WASHER FRONT SPRINGS TO FRONT AXLE,5 468450
68
NUT FRONT SPRINGS TO FRONT AXLE
