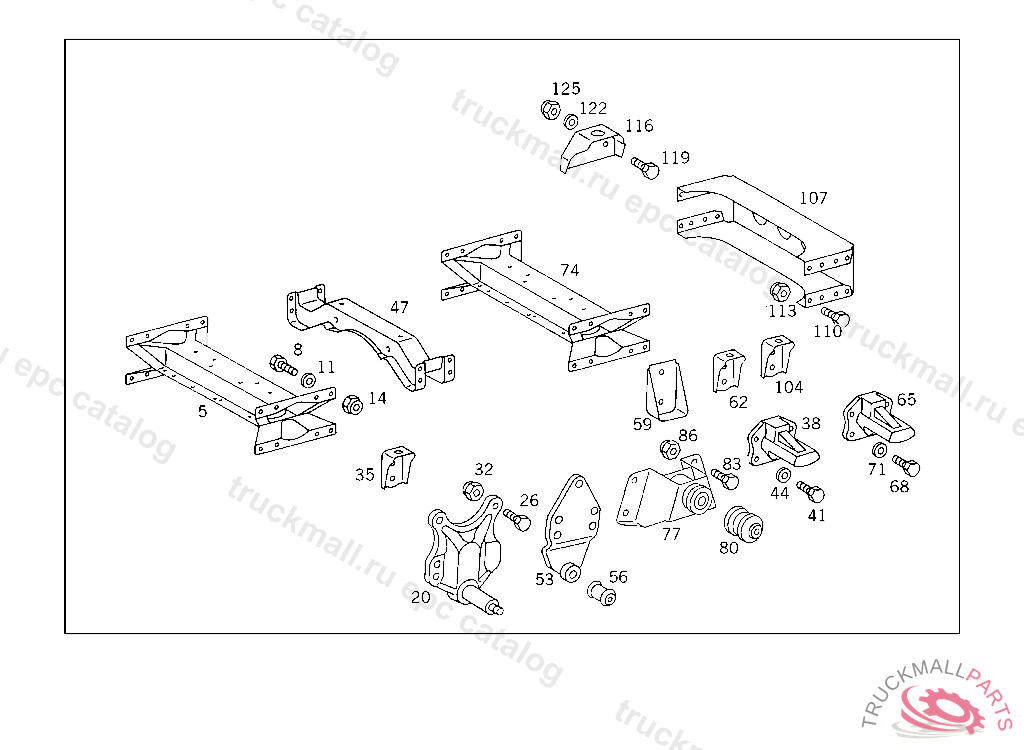

Поз.
Артикул
Описание
5
CROSS MEMBER REAR SPRING FRONT BRACKET NO.4
5
CROSS MEMBER , Replaced By: A6743100937
5
CROSS MEMBER , 001 5 171360 002 5 174971 011 5 175514 040 5 206930 042 5 196587, Replaced By: A6743100537
5
CROSS MEMBER , Replaced By: A6753100237
20
SPRING BRACKET (REAR SPRING BRACKET),FRONT, NOT INCLUDED IN RANGE OF DELIVERY OF FRAME5 220620
20
SPRING BRACKET , NOT INCLUDED IN RANGE OF DELIVERY OF FRAME THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A6753200275, +002A3589900514, +004A3609900114, +006N913004016005
20
SPRING BRACKET (REAR SPRING BRACKET),FRONT, NOT INCLUDED IN RANGE OF DELIVERY OF FRAME
26
SCREWM 14X15X17X34
32
NUT , Replaced By: N910113014000
32
NUT STEERING SUPPORT TO FRAME
32
NUT STEERING SUPPORT TO FRAME
35
CONSOLE , Replaced By: A6733171101
35
CONSOLE BODY MOUNTING
47
CROSS MEMBER SHOCK ABSORBER
59
REINFORCEMENT AT SIDE MEMBER
62
CONSOLE , Replaced By: A6733171101
62
CONSOLE BODY MOUNTING
74
CROSS MEMBER IN FRONT OF REAR CROSS MEMBER
74
CROSS MEMBER , Replaced By: A6743100437
77
SPRING BRACKET REAR-SPRING REAR BRACKET
80
BUSHING SPRING EYE,REAR
83
SCREWM 14X15X17X34
83
SCREWM 14X15X15X32
86
NUT , Replaced By: N910113014000
86
NUT STEERING SUPPORT TO FRAME
104
CONSOLE BODY MOUNTING
104
CONSOLE , Replaced By: A6733171101
107
CROSS MEMBER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 403207, Replaced By: A6743100132
107
CROSS MEMBER (REAR CROSS MEMBER),H.D.
110
SCREW , Replaced By: N308676014008
110
SCREW MOUNTING TO CONSOLE M 14X35
113
NUT STEERING SUPPORT TO FRAME
113
NUT , Replaced By: N910113014000
116
CONSOLE BODY MOUNTING
119
SCREW , Replaced By: N304017010002
119
SCREW BRACKET TO SIDE MEMBER
122
WASHER , Replaced By: N000125010532
122
WASHER RADIATOR TO RUBBER MOUNTING
125
NUT STRAP TO BRACKET
125
NUT , Replaced By: N910113010000
