Поз.
Артикул
Описание

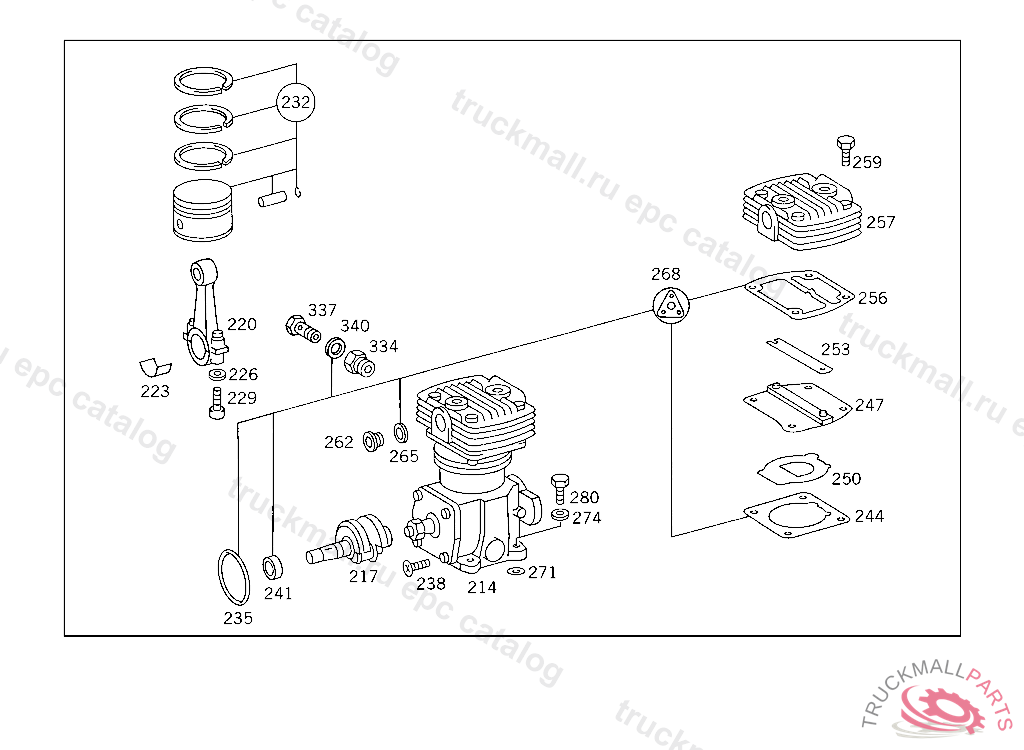

214
COMPRESSOR
214
COMPRESSOR , Replaced By: A0031316301
217
CRANKSHAFTWABCO
217
CRANKSHAFT
220
CONNECTING ROD LESS BEARING SHELLS TO 003 131 48 01,004 131 58 01
223
BEARING SHELLTO 003 131 48 01,004 131 58 01
226
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
229
SCREWTO 000 131 20 17,003 131 59 01
229
CONNECTING ROD LESS BEARING SHELLS TO 376 131 74 01
232
PISTONTO 003 131 48 01,004 131 58 01
232
PISTON
235
SEAL RING BEARING CAP TO HOUSING TO 001 131 52 01
235
SEAL RINGTO 376 131 74 01
238
SCREW BEARING CAP TO HOUSING TO 376 131 74 01
238
SCREW BEARING CAP TO HOUSING TO 003 131 48 01,004 131 58 01
241
SEAL RING
241
SEAL RING CRANKSHAFT SEALING,FRONT WABCO
244
GASKET , Replaced By: A0011316080
244
GASKETTO 003 131 48 01
244
GASKET , Replaced By: A0011316280
244
GASKET , Replaced By: A0011316480
247
VALVE (DISC VALVE)
250
VALVE DISC (SUCTION DISC) TO 003 131 48 01,004 131 58 01
250
VALVE DISC (PRESSURE DISC)
253
VALVE DISC (PRESSURE DISC)
253
VALVE DISC (PRESSURE DISC) TO 003 131 63 01,004 131 05 01/19 01
256
GASKET , Replaced By: A0011316180
256
GASKET CYLINDER HEAD TO CYLINDER LINER TO 003 131 48 01,"WABCO",013654
257
CYLINDER HEADTO 003 131 48 01,004 131 58 01
257
CYLINDER HEAD
259
SCREW ,R 034014
259
SCREW CLUTCH TO FLYWHEEL,760271
262
SCREW PLUGTO 376 131 74 01
265
SEAL RING FITTING TO AIR COMPRESSOR
268
GASKET KIT AIR COMPRESSOR TO 004 131 58 01
268
GASKET KIT AIR COMPRESSOR
268
GASKET KIT , Replaced By: A0001301615
271
SEAL RING
274
WASHER , Replaced By: A1169901440
274
WASHER , Replaced By: A4449905140
274
WASHER FROM TERMINAL BOX TO CHARGING AIR PIPE
280
SCREW AIR COMPRESSOR TO SUPPORT M 8X35
334
THREADED UNION OIL LINE TO CONNECTOR
337
HOLLOW SCREW COMPRESSED AIR LINE TO OPERATING CYLINDER
340
SEAL RING DIFFERENTIAL LOCK 10/15
999
VALVE PARTS KIT
999
GASKET KIT DISC VALVE TO 003 131 63 01,004 131 05 01/19 01
999
PISTON RING PARTS KIT TO 003 141 48 01,"WABCO",013654
999
PISTON RING PARTS KIT TO 004 131 05 01,"KNORR",013654
999
GASKET , Replaced By: A0011315380
999
BUSHINGTO 376 131 74 01
999
BUSHING CRANKSHAFT REAR BEARING TO 376 131 74 01
999
CYLINDER LINER
999
BUSHING CRANKSHAFT REAR BEARING TO 004 131 01 01
999
CRANKSHAFTTO 003 131 59 01
999
GASKET , Replaced By: A0011315280
999
GASKET
999
SCREW PLUG , Replaced By: N000000000648
999
SCREW FEED LINE AND RETURN LINE
999
NUT , Replaced By: N304032008006
999
SEAL RING PNEUMATIC VALVE
999
SCREW STEERING SHAFT BEARING TO CAB
999
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
