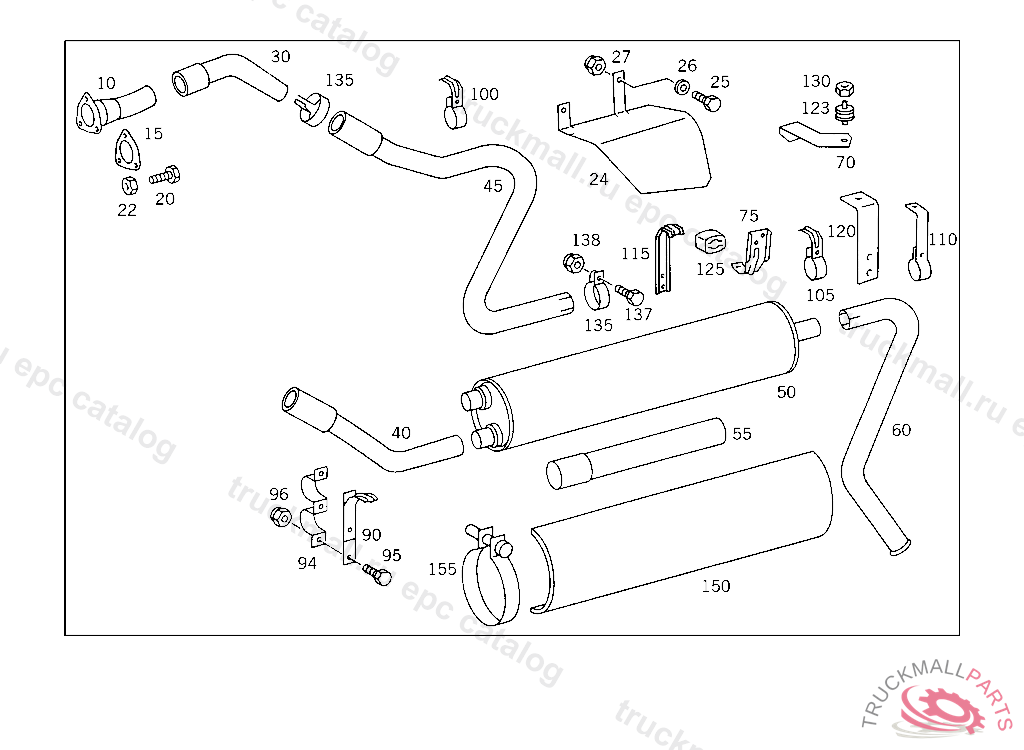

Поз.
Артикул
Описание
10
EXHAUST PIPE FRONT RIGHT
10
EXHAUST PIPE FRONT LEFT
15
FLANGE GASKET FRONT EXHAUST PIPE TO EXHAUST MANIFOLD, ELIMINATED - NO LONGER REQUIRED
15
FLANGE GASKET , Replaced By: A4424920080
20
SCREW CONNECTOR TO EXHAUST MANIFOLD
22
NUT STRAP TO SUPPORT,5 149419
24
PROTECTIVE PLATE AT FRAME
25
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
25
SCREW , Replaced By: N304017008027
26
WASHER EXHAUST MUFFLER TO STRAP
26
WASHER , Replaced By: N000125008443
27
NUT , Replaced By: N913004008001
27
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
30
CONNECTOR , Replaced By: A3834920007
30
CONNECTOR FRONT LEFT AND RIGHT
40
FRONT EXHAUST PIPE FRONT LEFT
45
FRONT EXHAUST PIPE FRONT RIGHT,4 337021
50
EXHAUST MUFFLER
55
CONNECTOR REAR
55
CONNECTOR , Replaced By: A3604921907
60
REAR EXHAUST PIPE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 471444
60
REAR EXHAUST PIPE , Replaced By: A3814926304
70
SUPPORT EXHAUST PIPE TO SIDE MEMBER
75
SUPPORT EXHAUST
90
BRACKET FRONT EXHAUST PIPE
94
CLAMP FRONT EXHAUST PIPE TO BRACKET
95
SCREW BRACKET TO CROSS CONNECTION STRUT
95
SCREW , Replaced By: N304017008034
96
NUT , Replaced By: N913004008001
96
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
100
BRACKET EXHAUST
105
BRACKET RUBBER BUFFER,5 129244
110
BRACKET , Replaced By: A3834927941
110
BRACKET EXHAUST PIPE, TO BE ADAPTED DURING ASSEMBLY
123
RUBBER BUFFER EXHAUST MUFFLER
123
RUBBER BUFFER BRACKET TO SUPPORT
125
DAMPING PAD PARTICLE FILTER
130
NUT STRAP TO BRACKET
130
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
130
NUT , Replaced By: N913004008001
130
NUT , Replaced By: N910113010000
135
CLAMP REAR EXHAUST PIPE TO BRACKET
135
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
137
SCREW , Replaced By: N304017008034
137
SCREW BRACKET TO CROSS CONNECTION STRUT
138
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
138
NUT , Replaced By: N913004008001
999
PROTECTIVE PLATE LEFT
